Leda

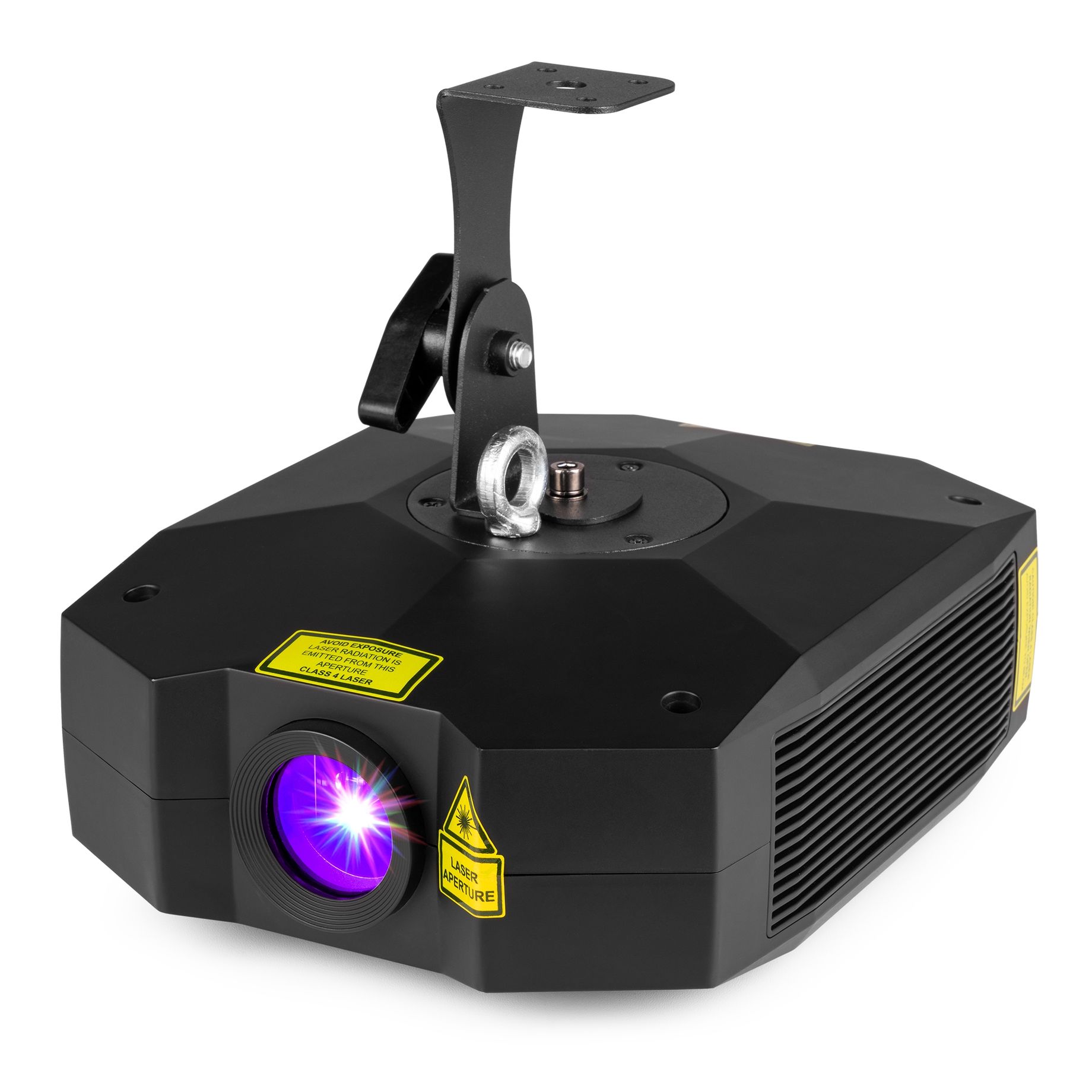

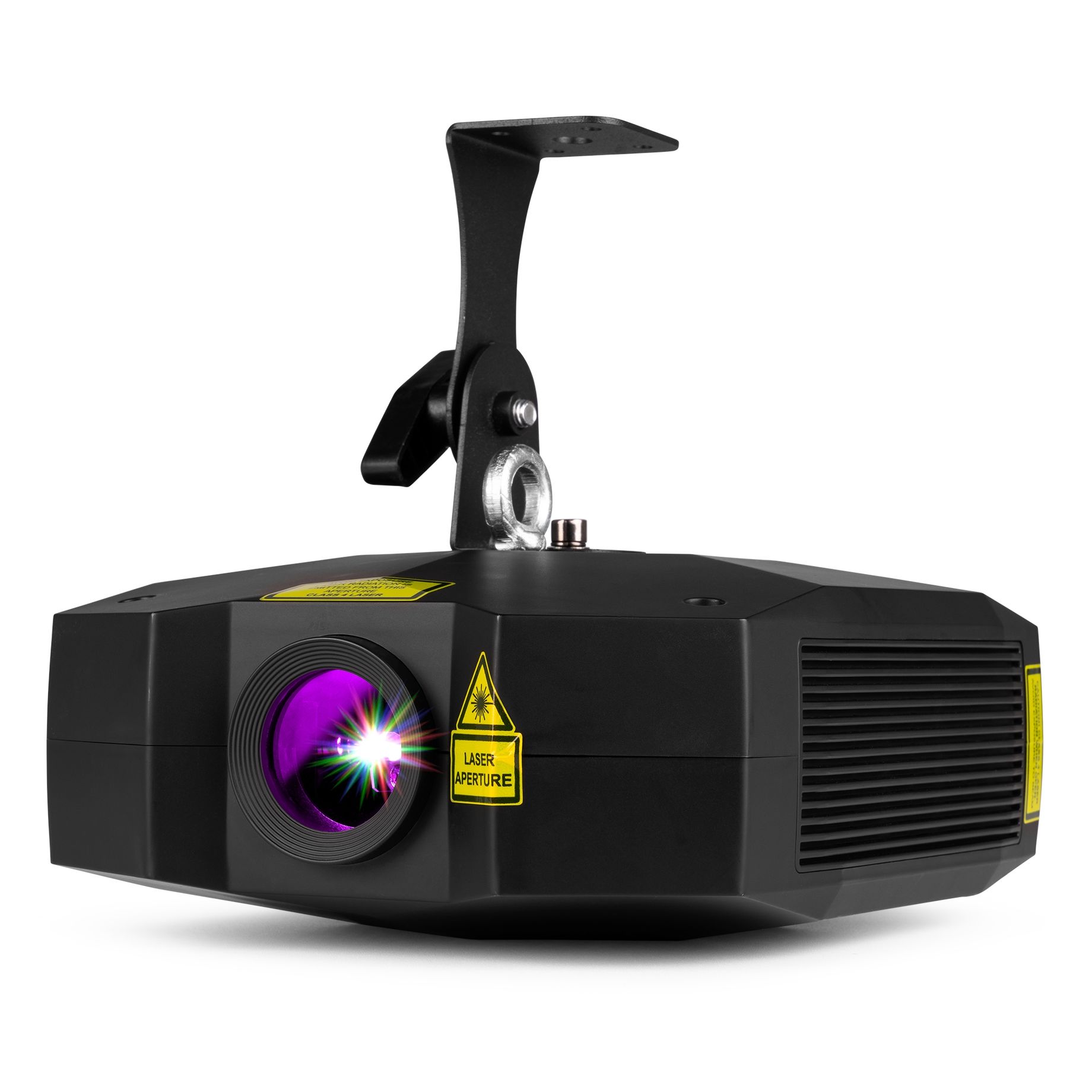

RGB Animation Laser 1.2W
SKU 152.824
|EAN 8715693353341
+11
All product information
Compare
Leda series
Description
Highlights
- Powerful 1.2W TTL animation laser
- Red (300mW), Green (300mW) and Blue (600mW) laser modules
- 15K high speed optical scanner system
- DMX and Stand-alone mode
- Master/slave function
- Sound activated with adjustable sensitivity
- Auto mode
- Preprogrammed patterns and animations
- DMX in/output via 3-pin XLR
- Control panel with LED display
Specifications
BrandbeamZ
Product serieLeda series
ColourBlack
Light source
Laser Red300mW @ 638nm
Laser Green300mW @ 520nm
Laser Blue600mW @ 445nm
Control
Control modesAuto programs, DMX, Manual, Sound
DMX Channels7, 16
DMX connector3-pin XLR

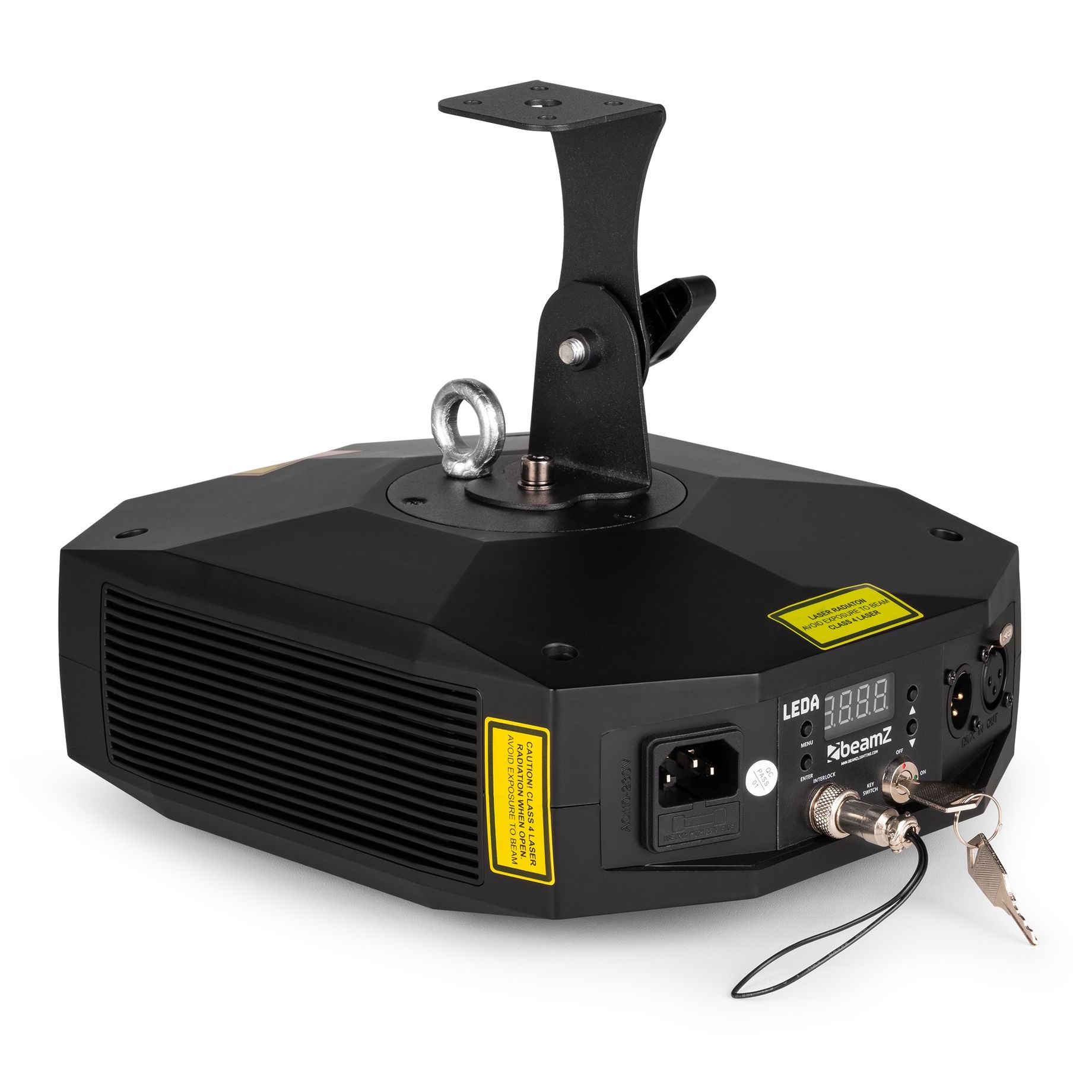

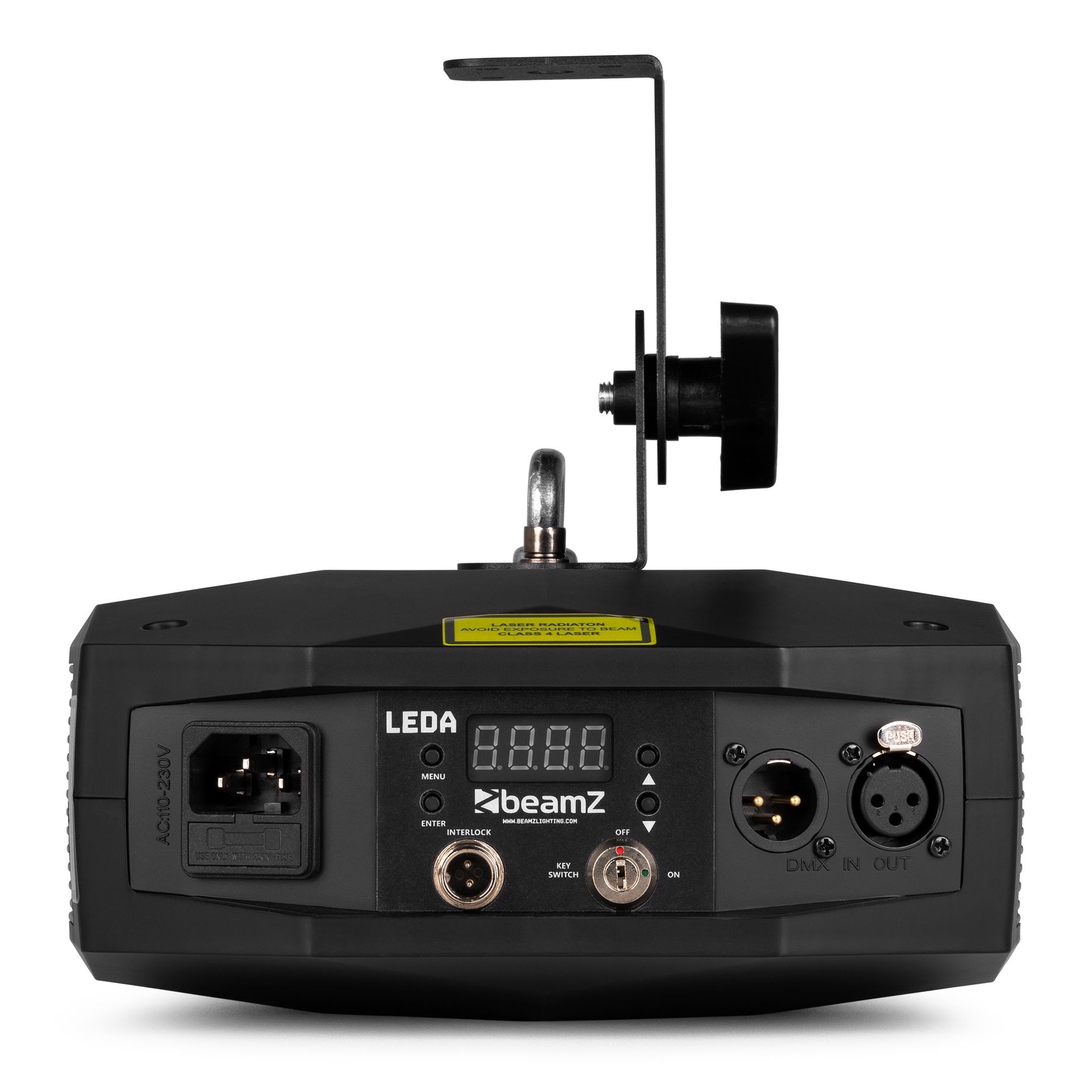

Connections
Input connections
- 1x Power - IEC (M)
- 1x DMX - 3-pin XLR
- 1x Interlock - 2-Pin Interlock
Output connections
- 1x DMX - 3-pin XLR
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 211 x 268 x 101 mm (W x D x H)
Weight
- 2.2 kg

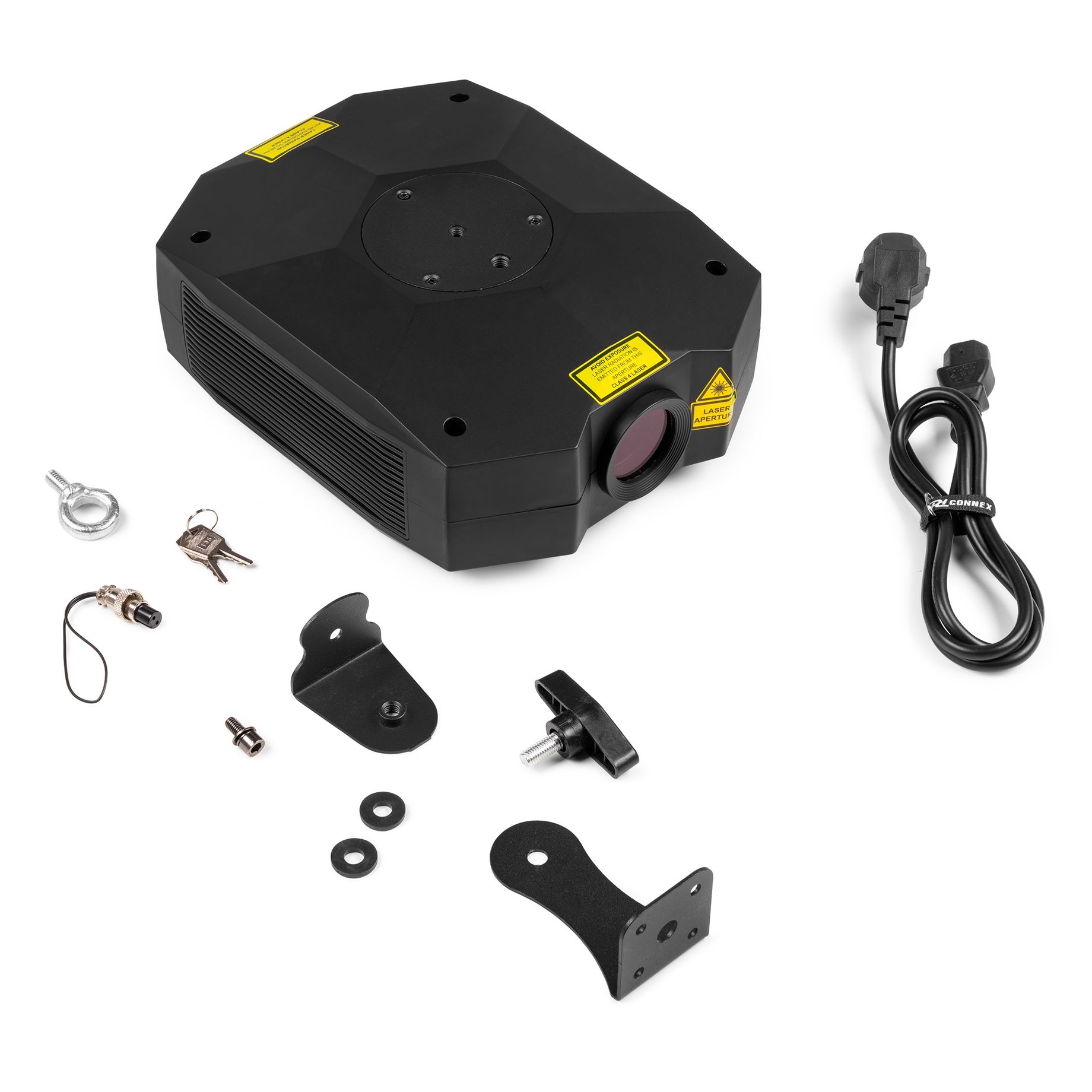

Accessories
Included Accessories
- Power cable
Manuals & Documents
Manual
PDF
