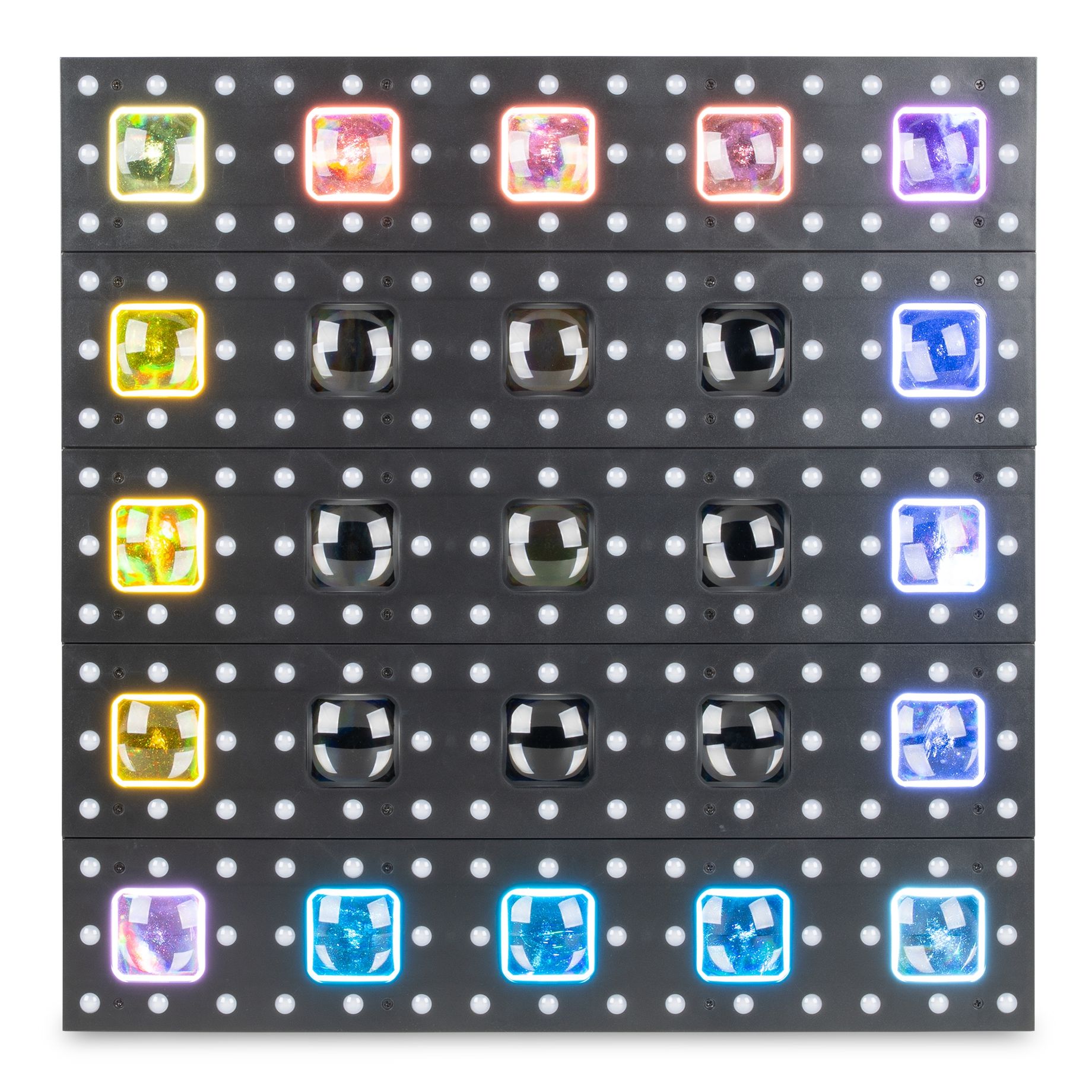

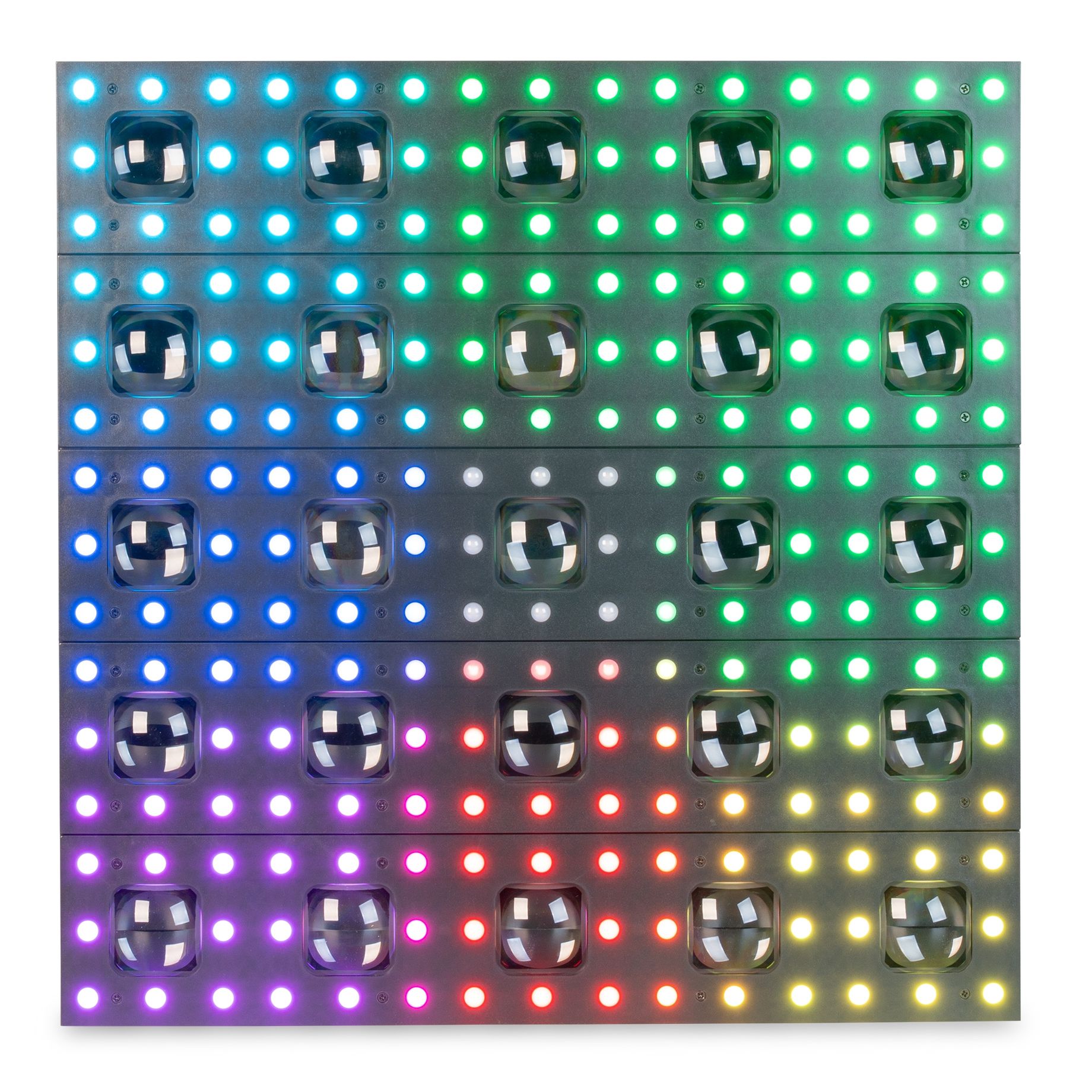

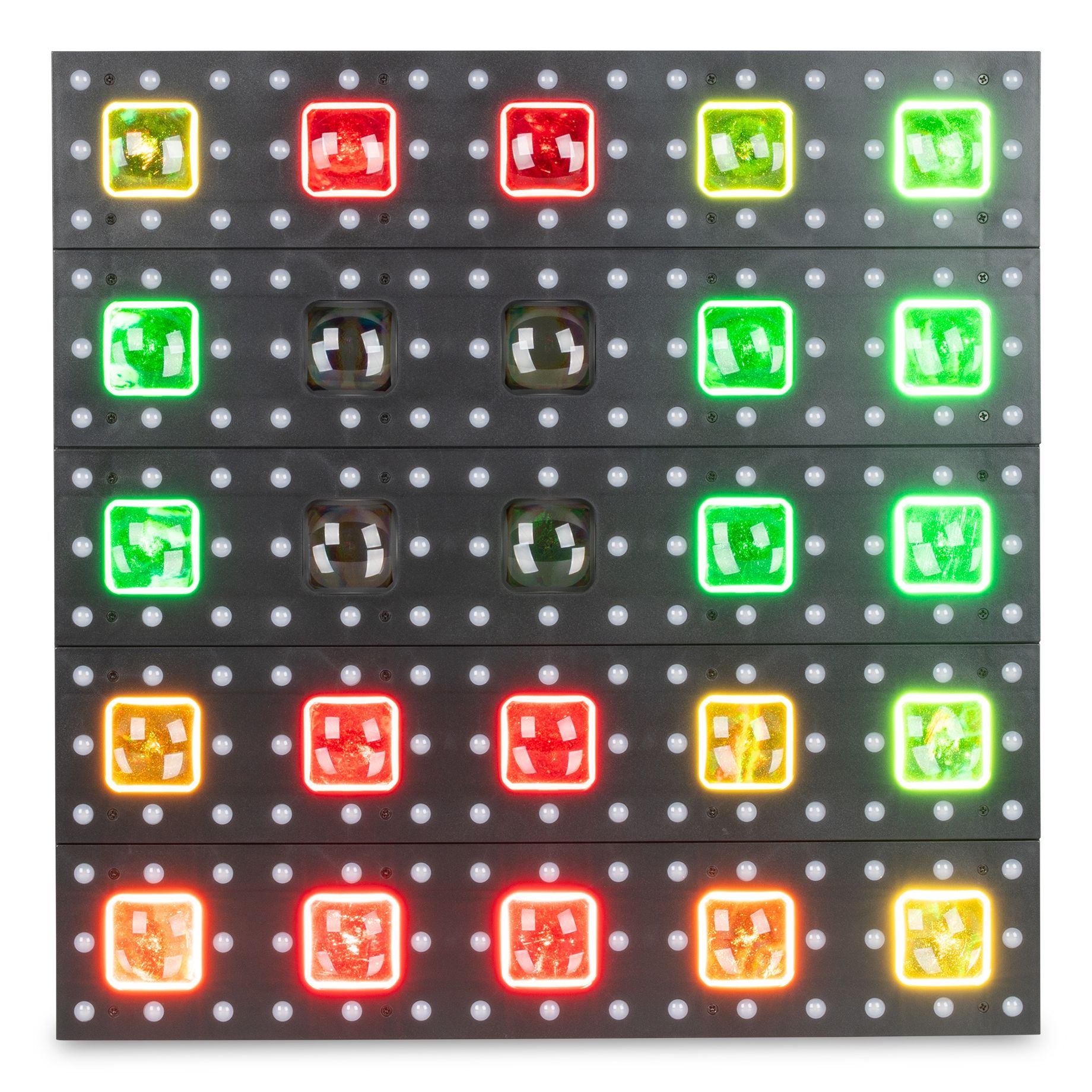

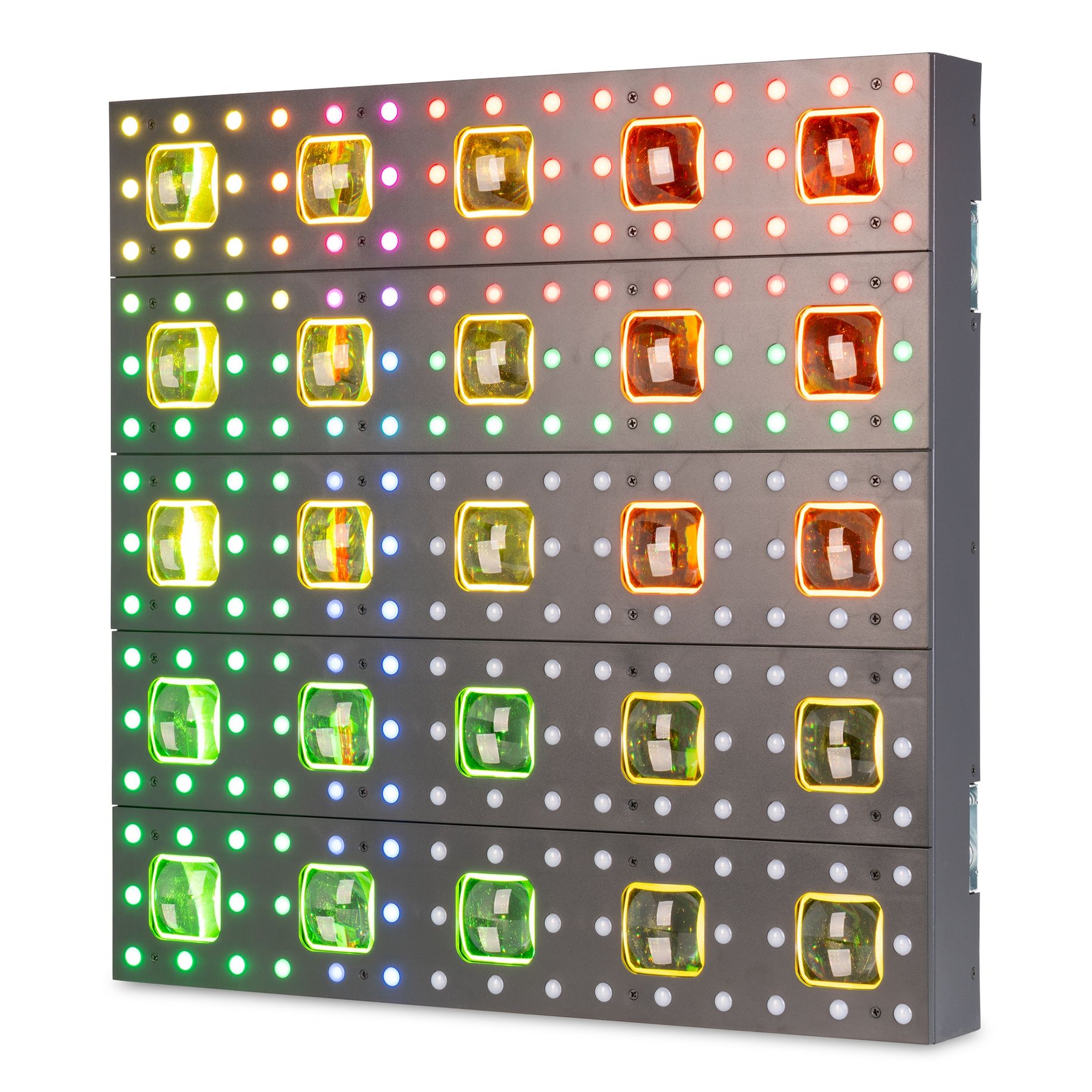

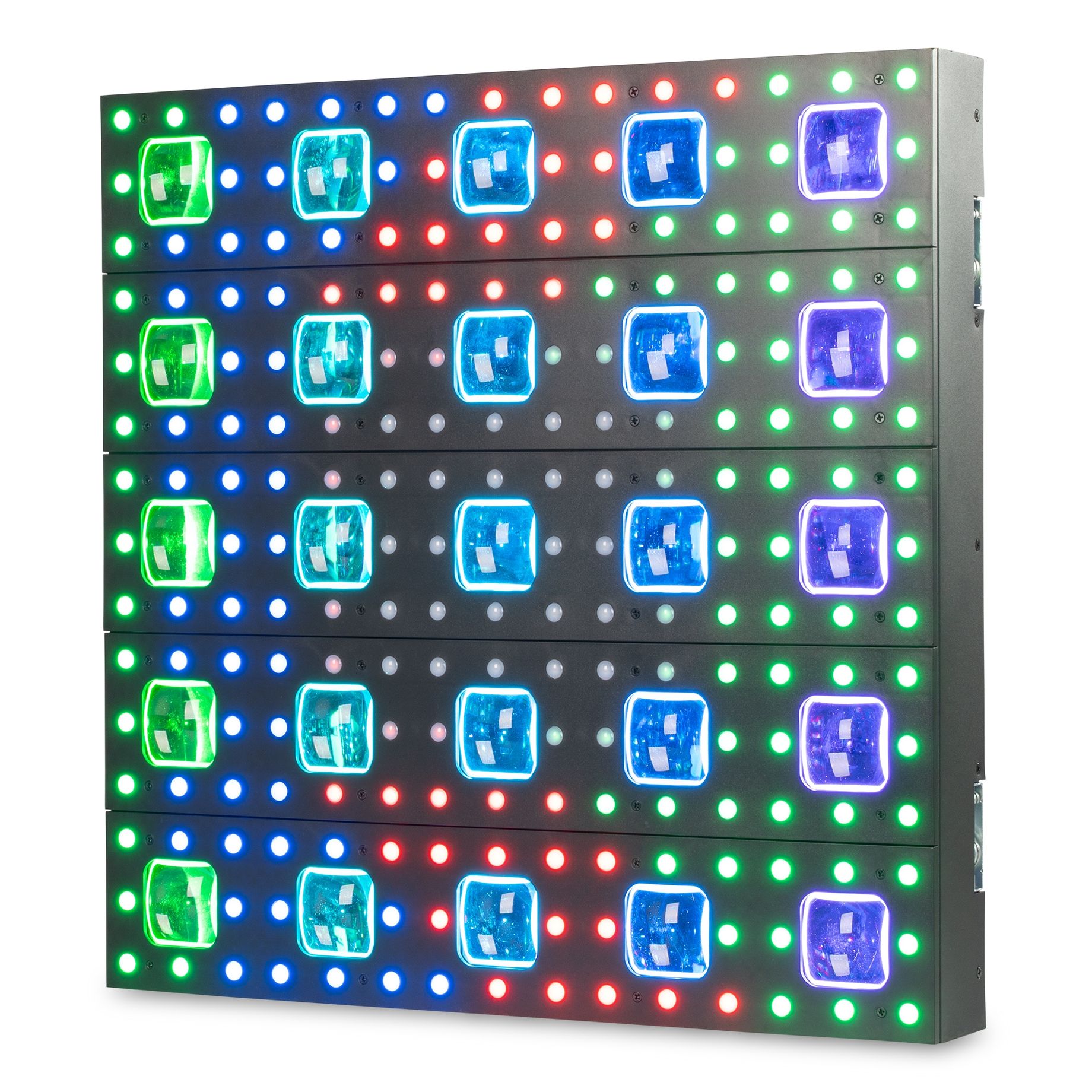

LCBP450
Combi LED Panel PIX
SKU 150.673
|EAN 8715693357394
+22
All product information
Compare
LCBP series
Description
Highlights

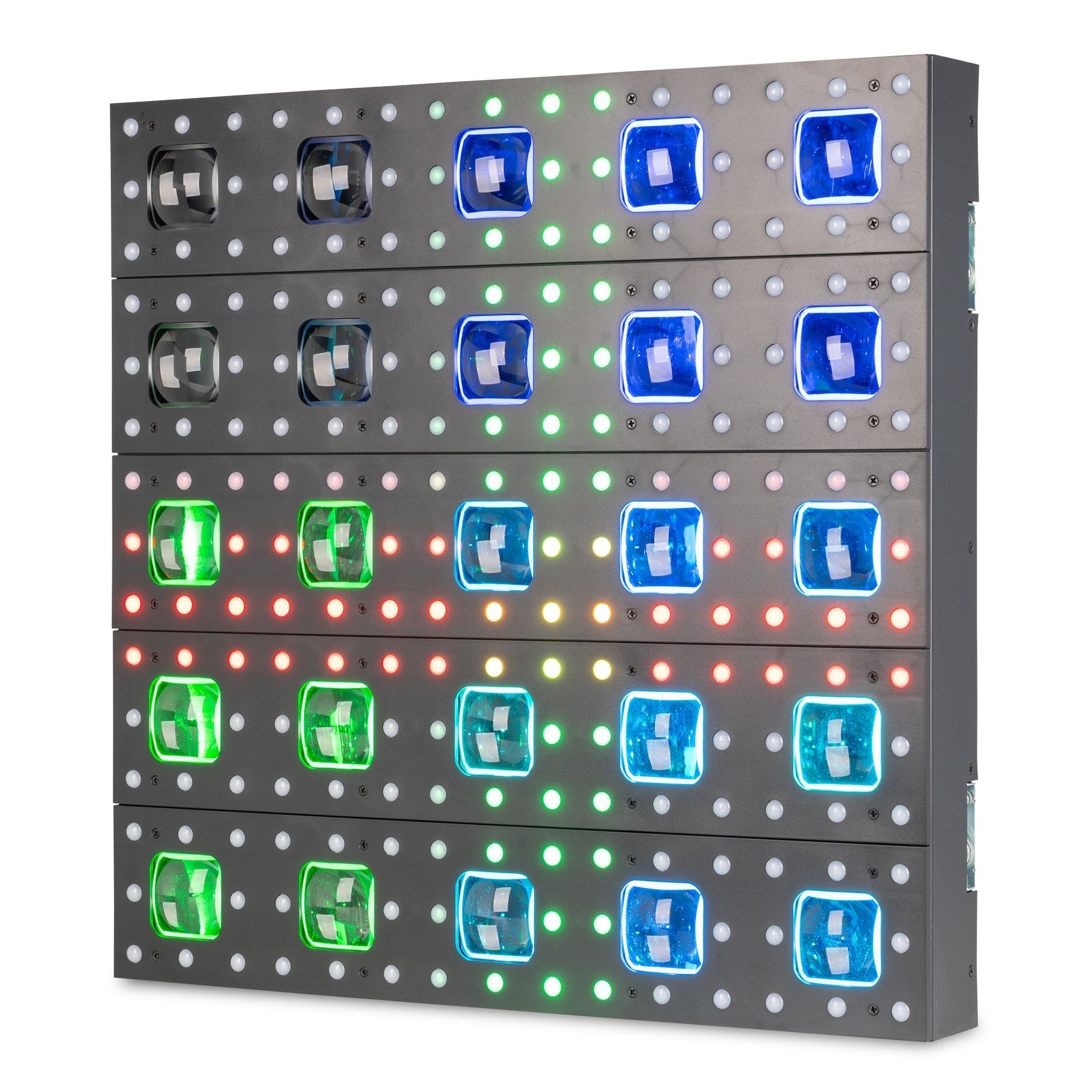

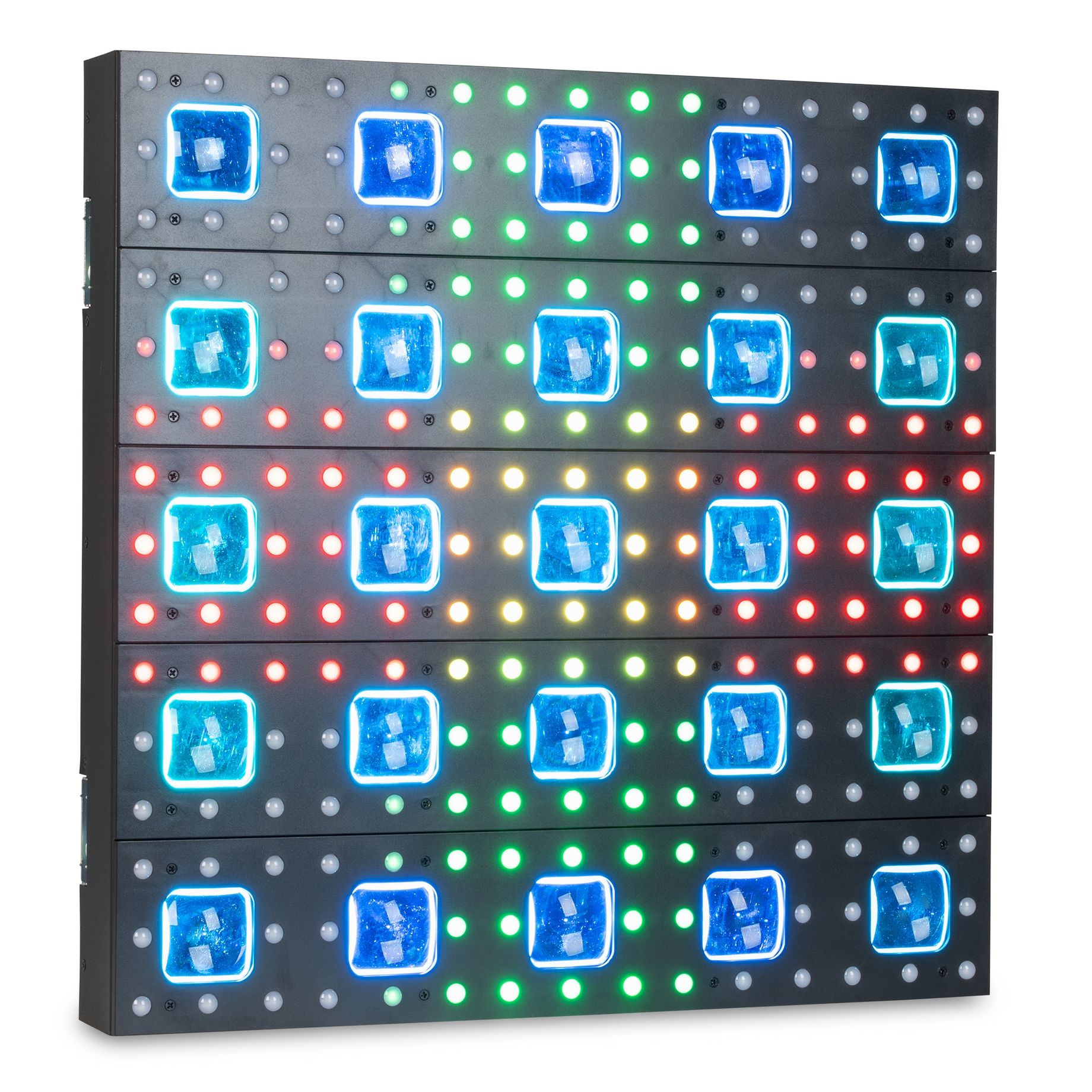

- Multifunctional Hybrid LED Panel

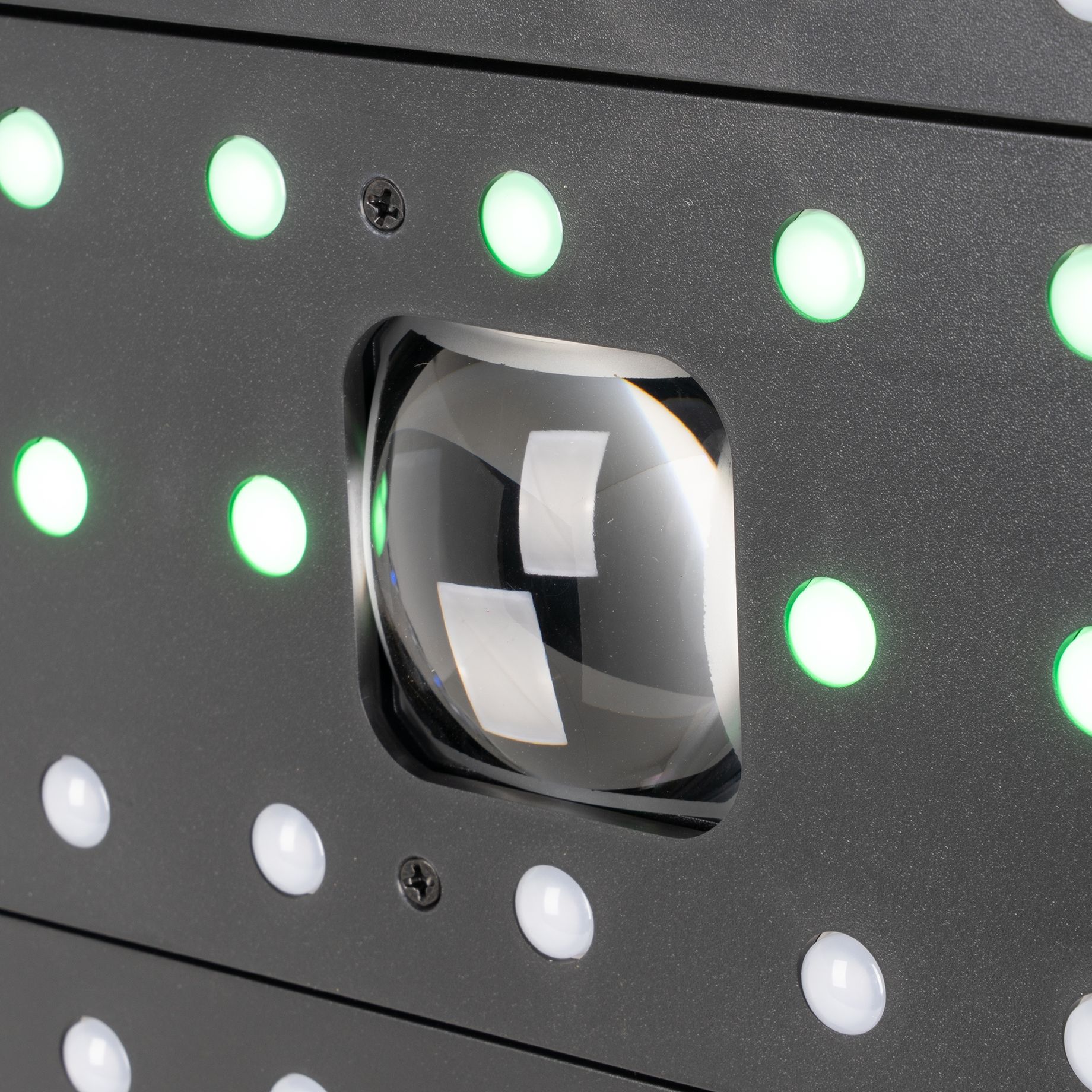

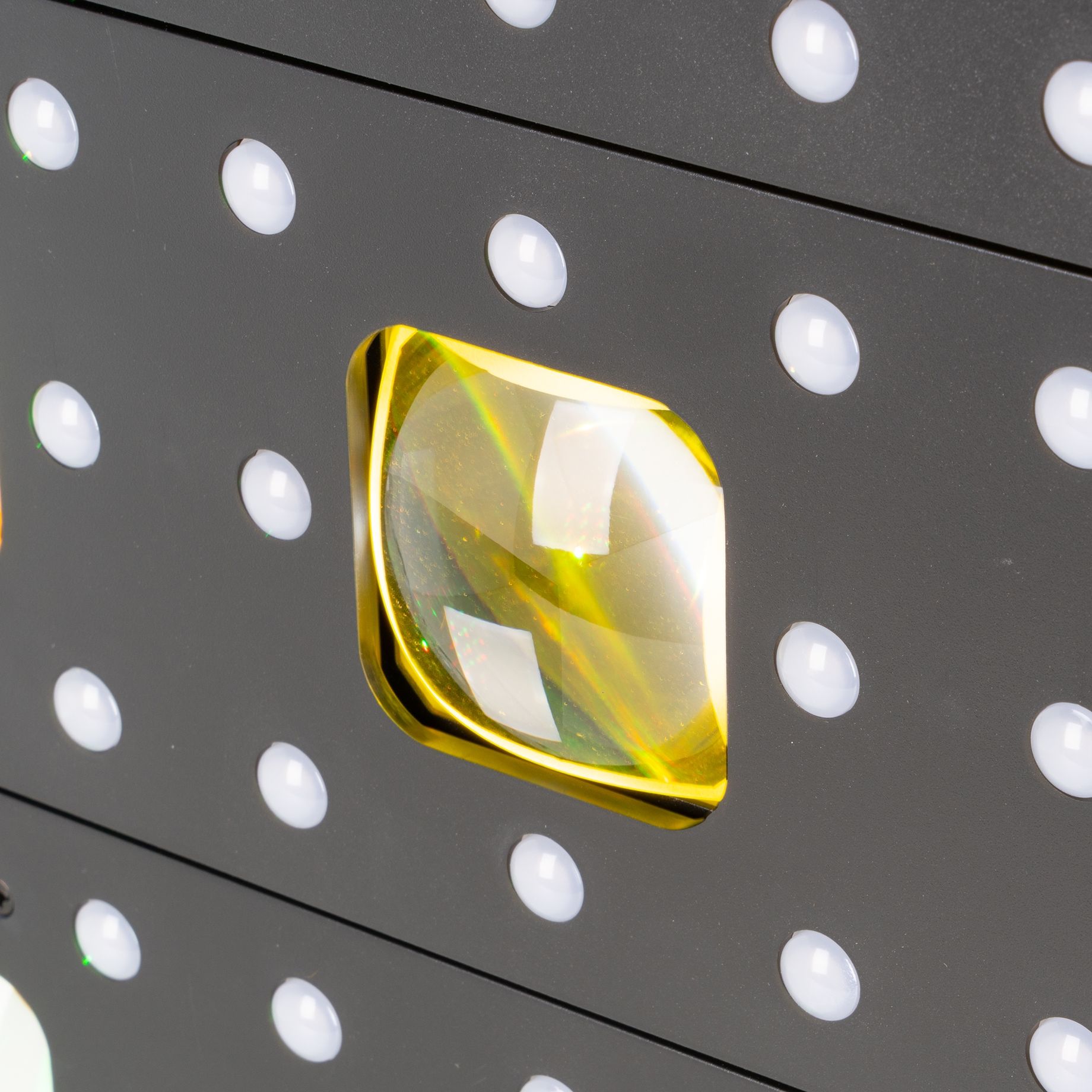

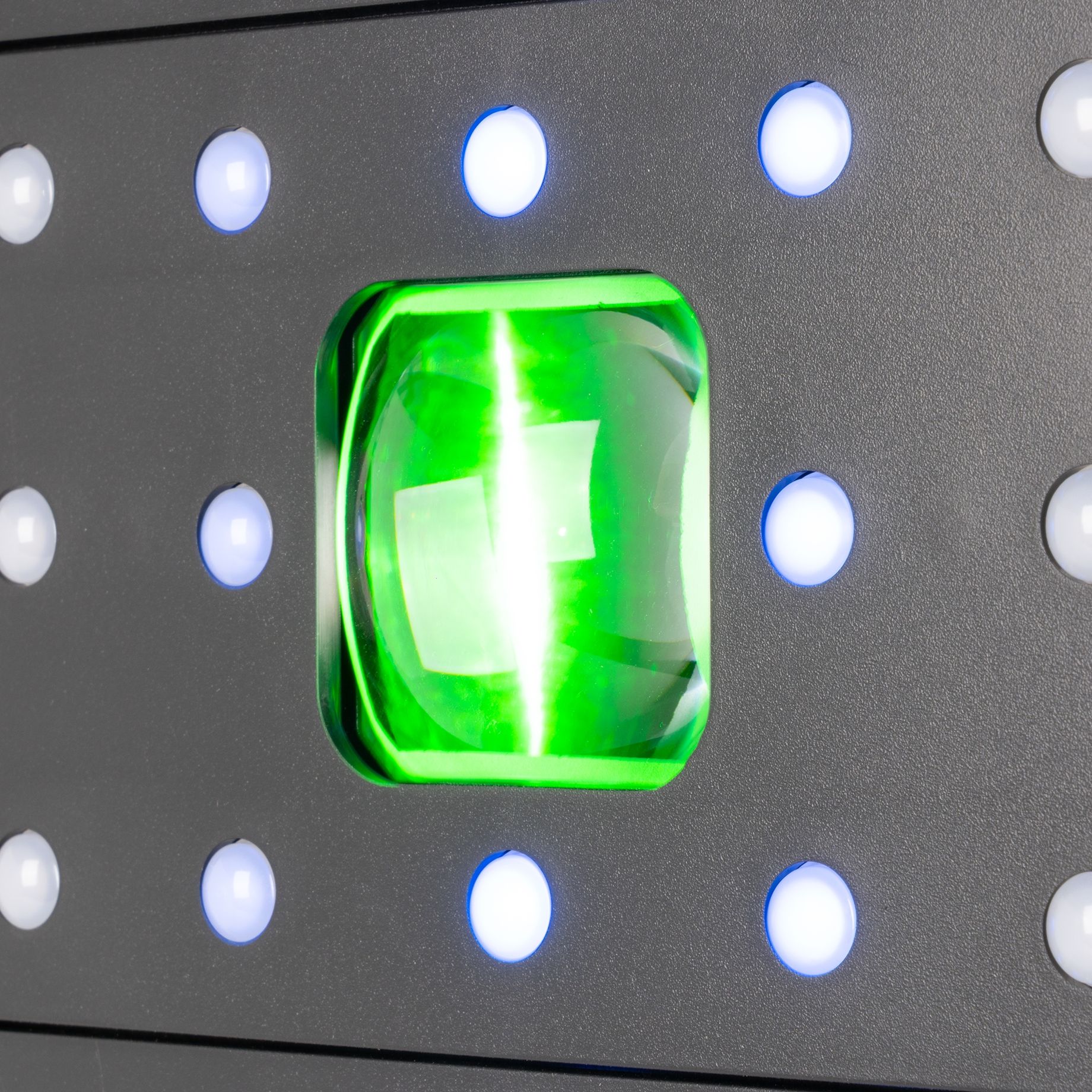

- 25x RGBW LEDs with lenses
- 200x RGB SMD LEDs

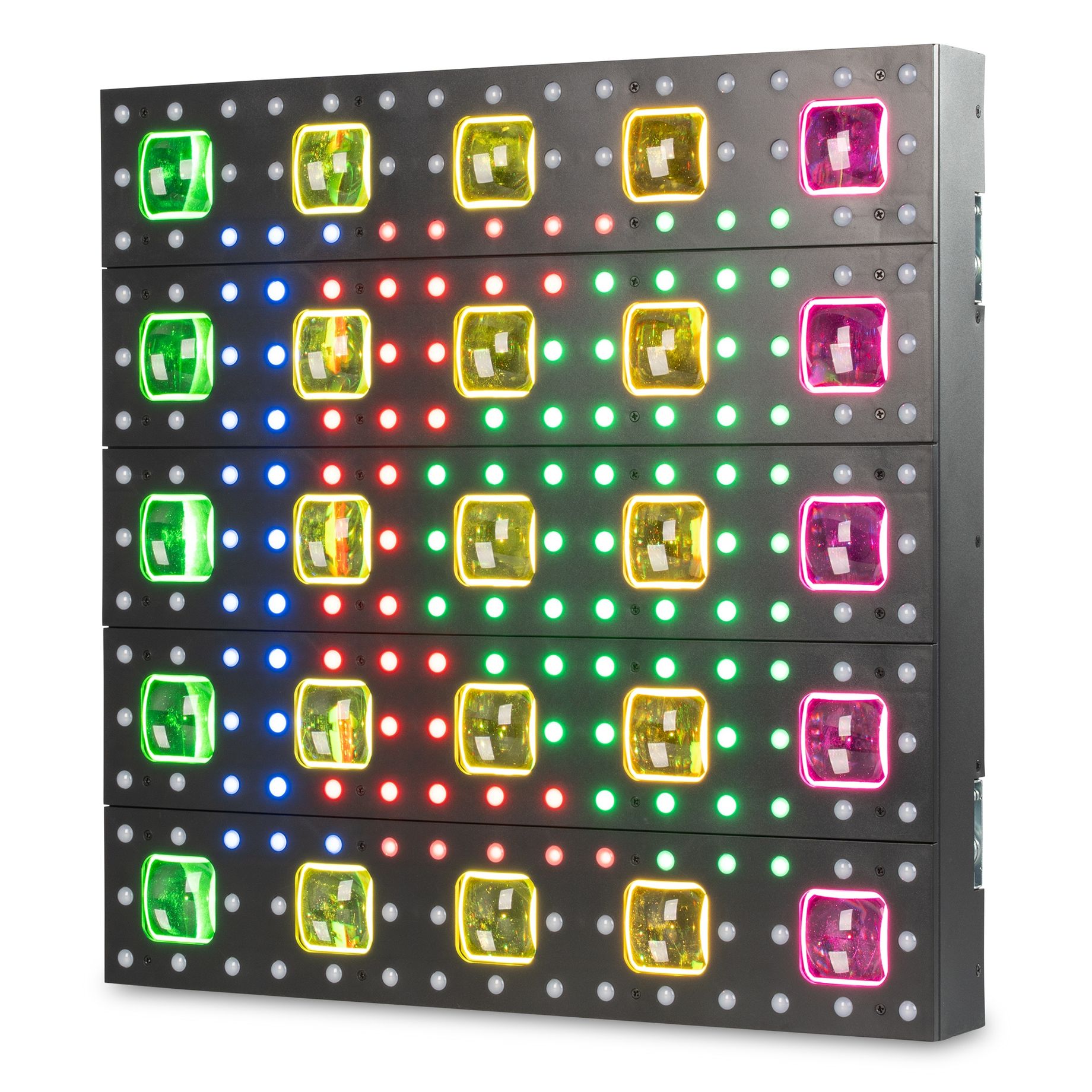

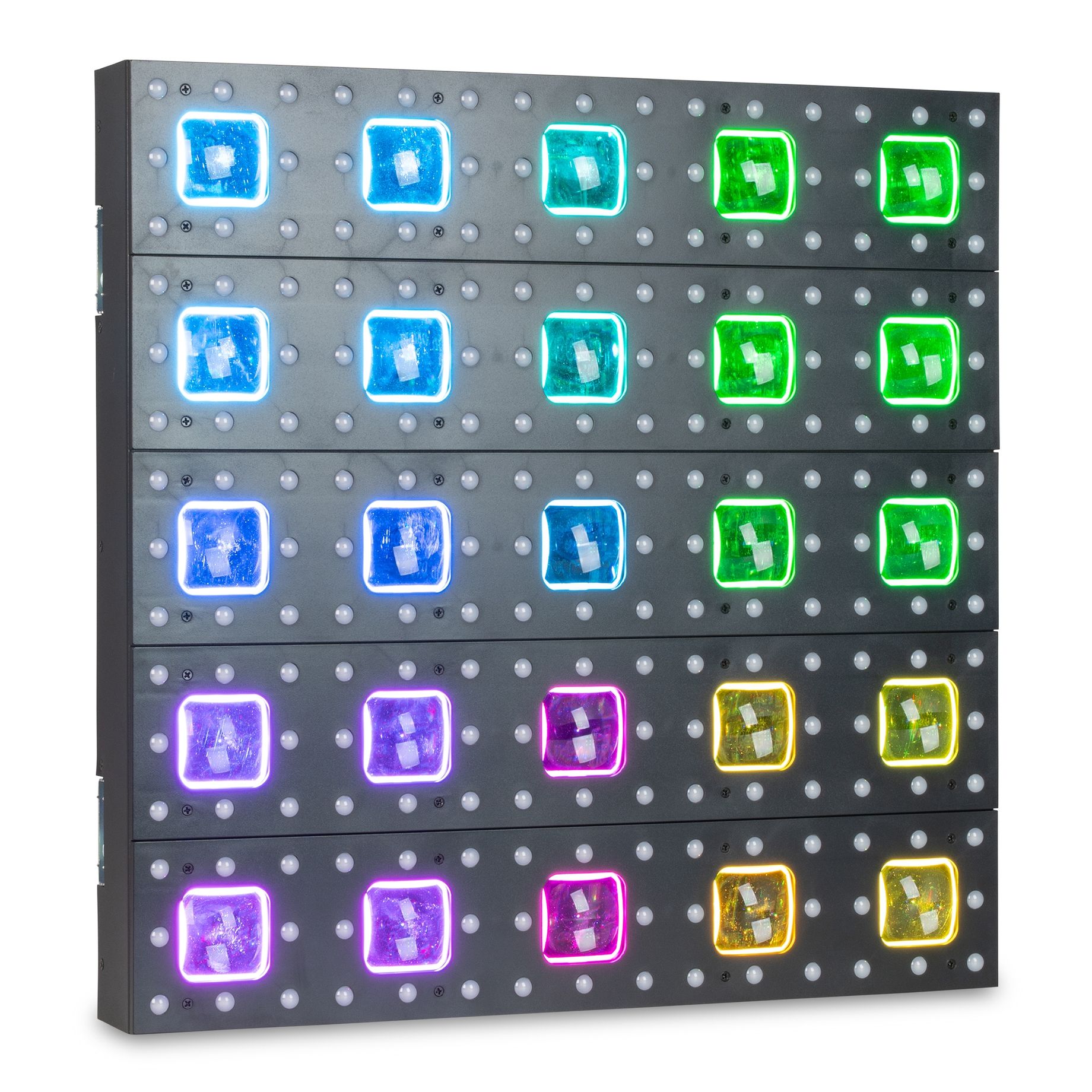

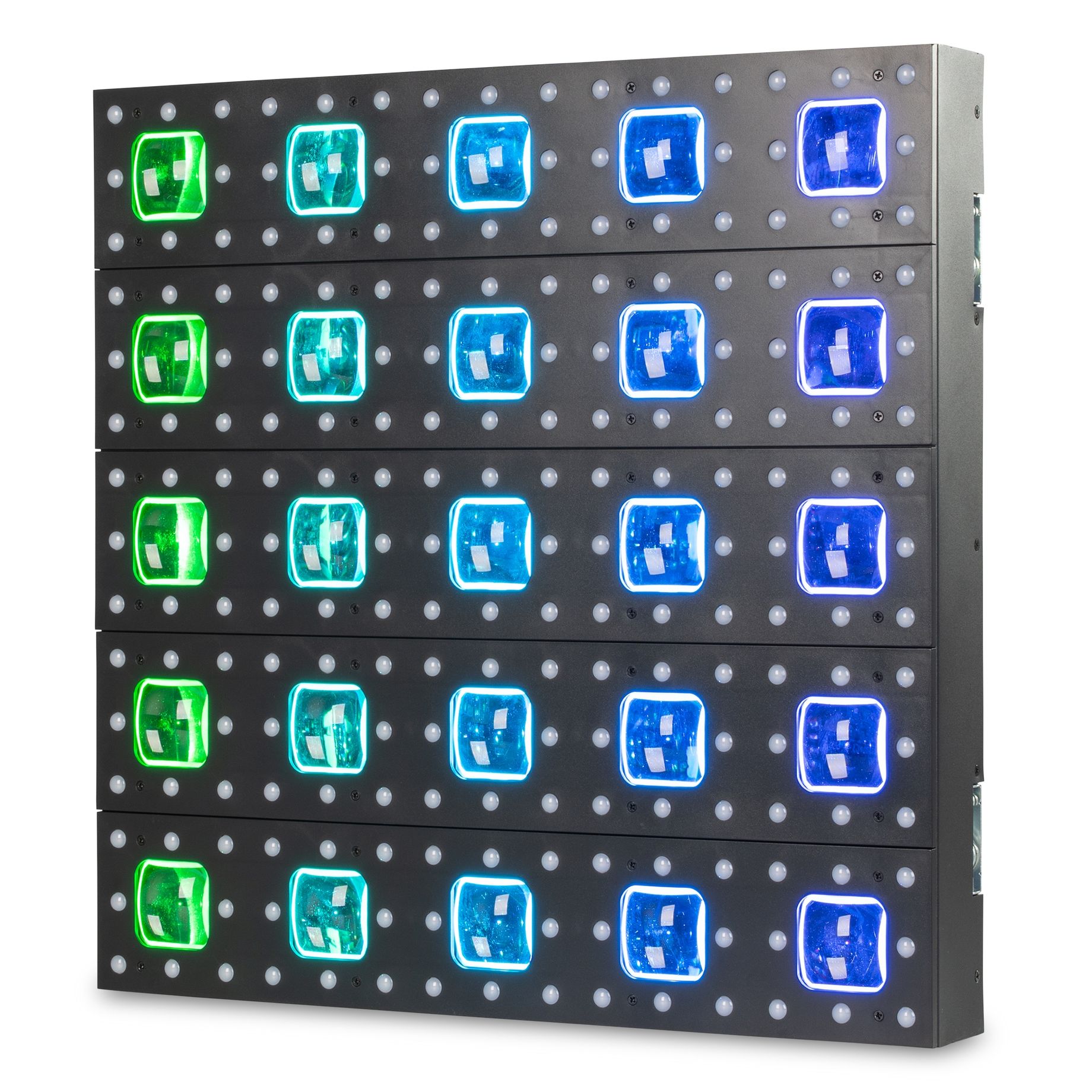

- RGB + WW colour mixing
- DMX512, stand alone and Master/slave Mode
- Also controllable with Madrix software through the RJ45 connection
- 30 Automatic programs with adjustable speed
- 30 Sound programs with adjustable speed
- Adjustable speed
- Fan cooled metal housing
- Various dimmer curves adjustable
- P-Con Powerconnector in/output

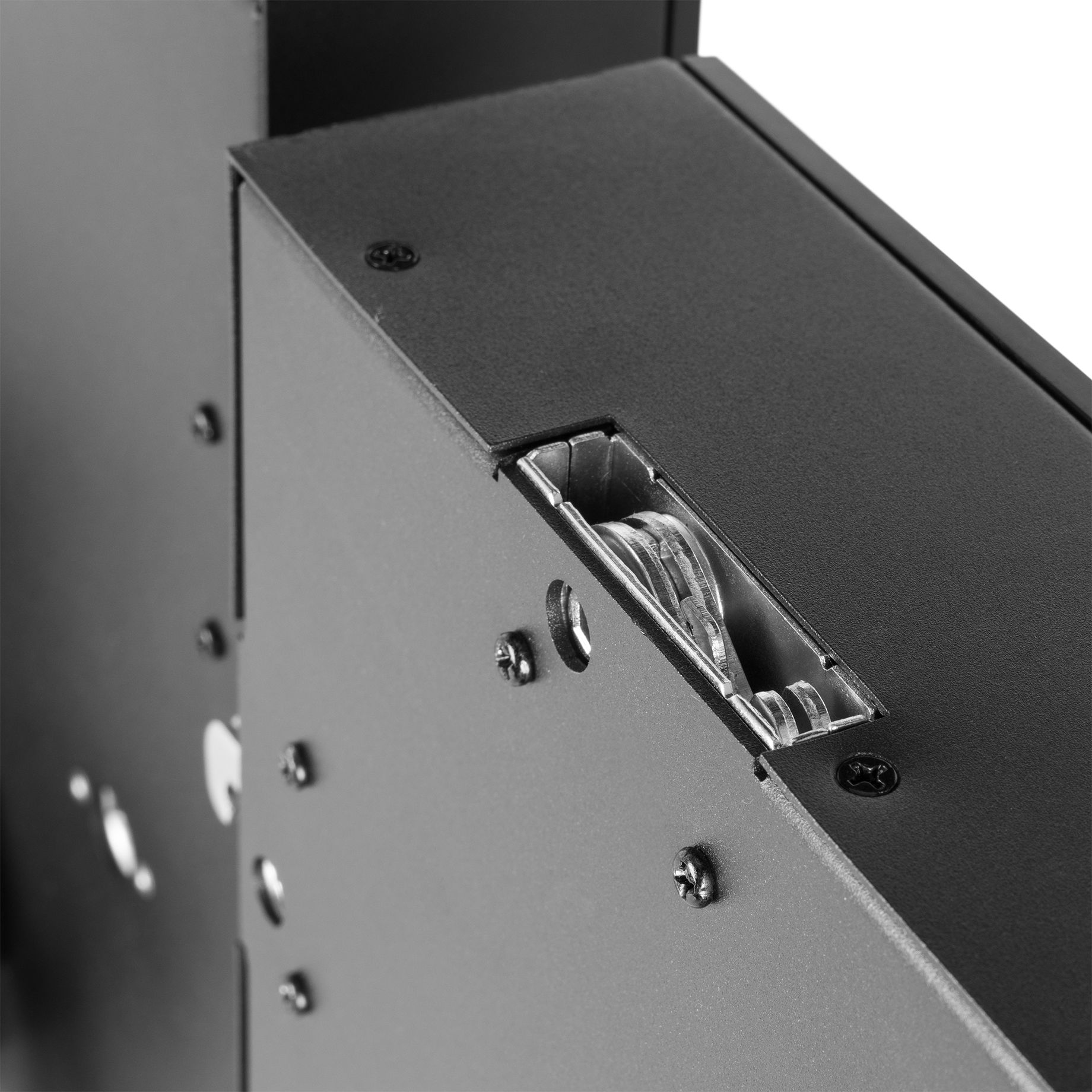

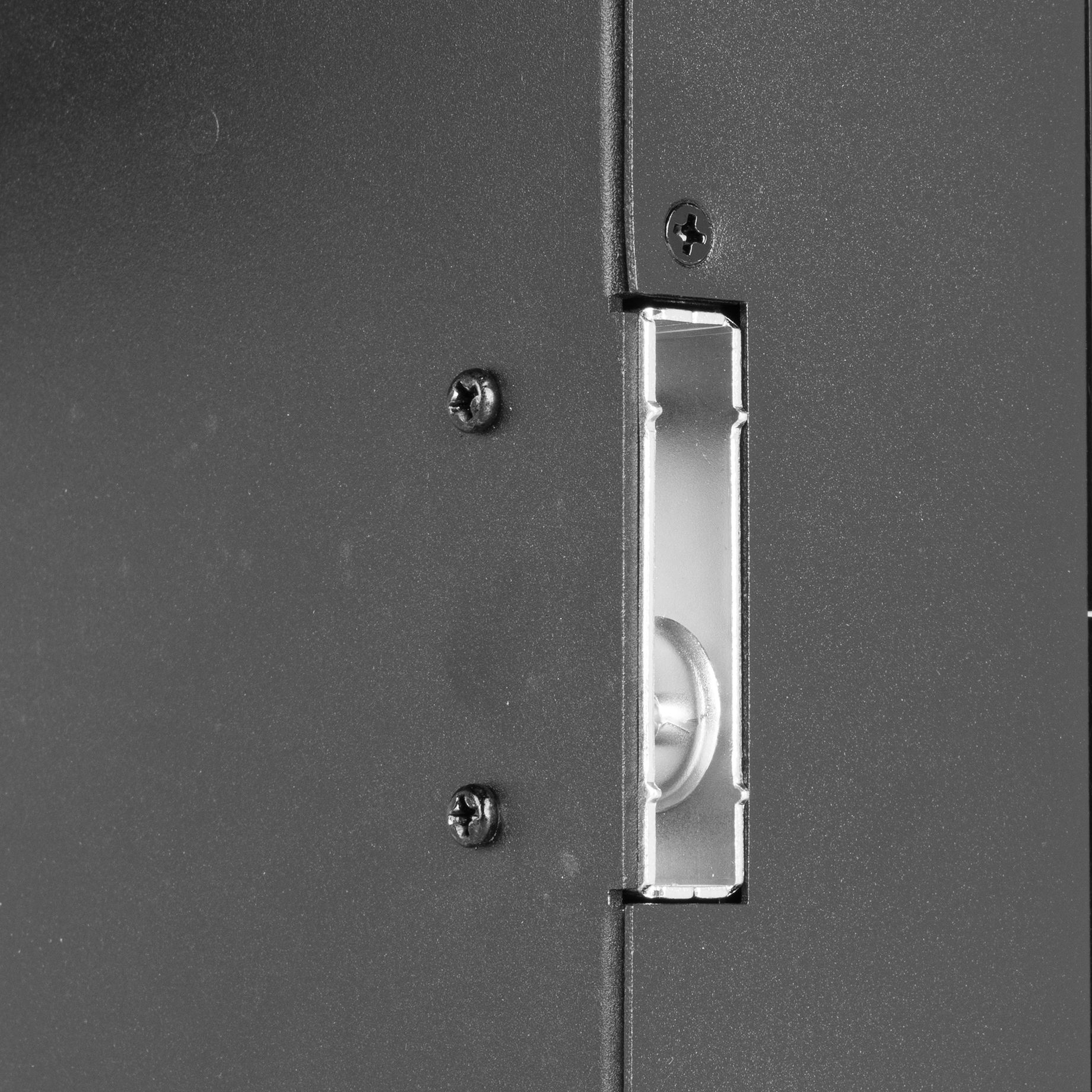

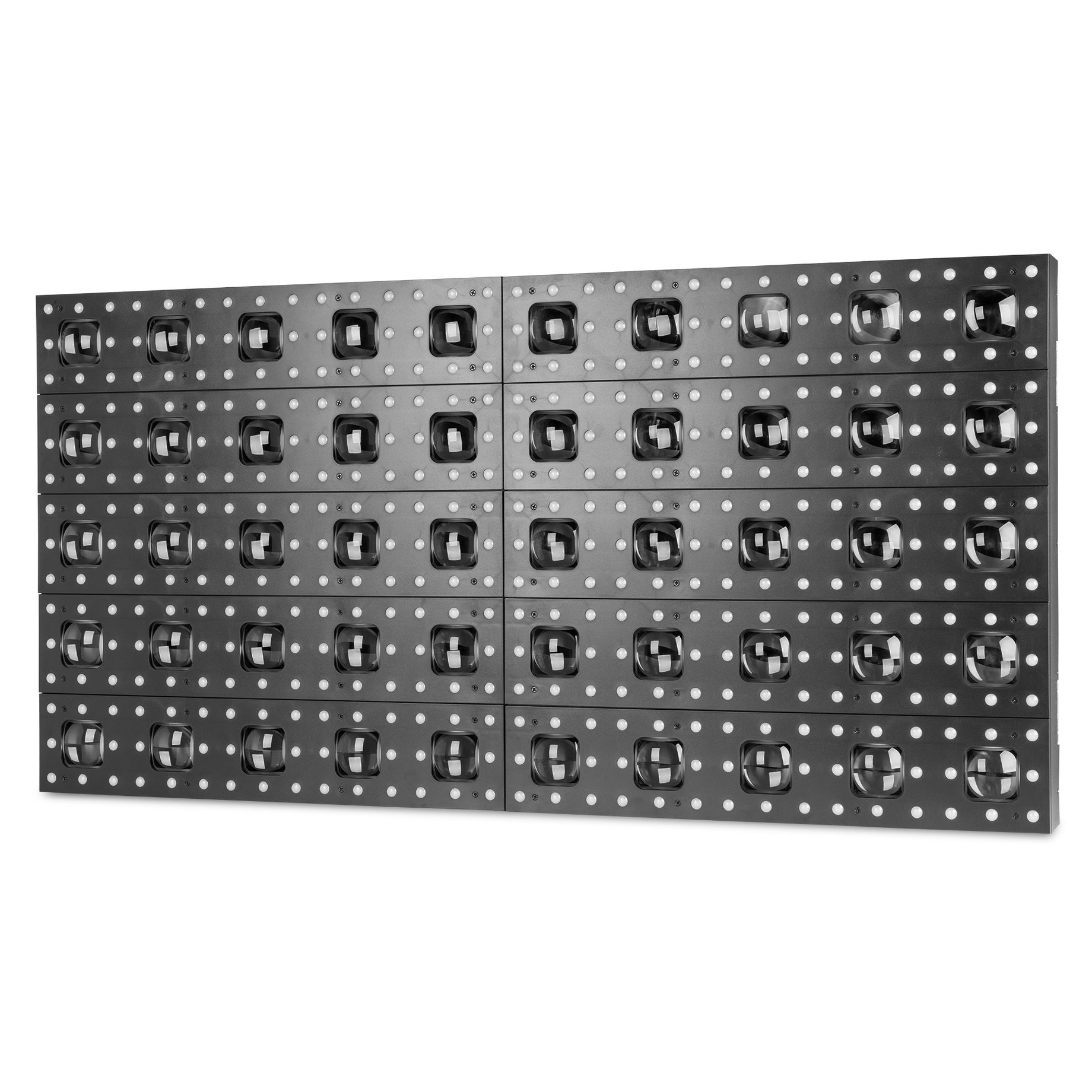

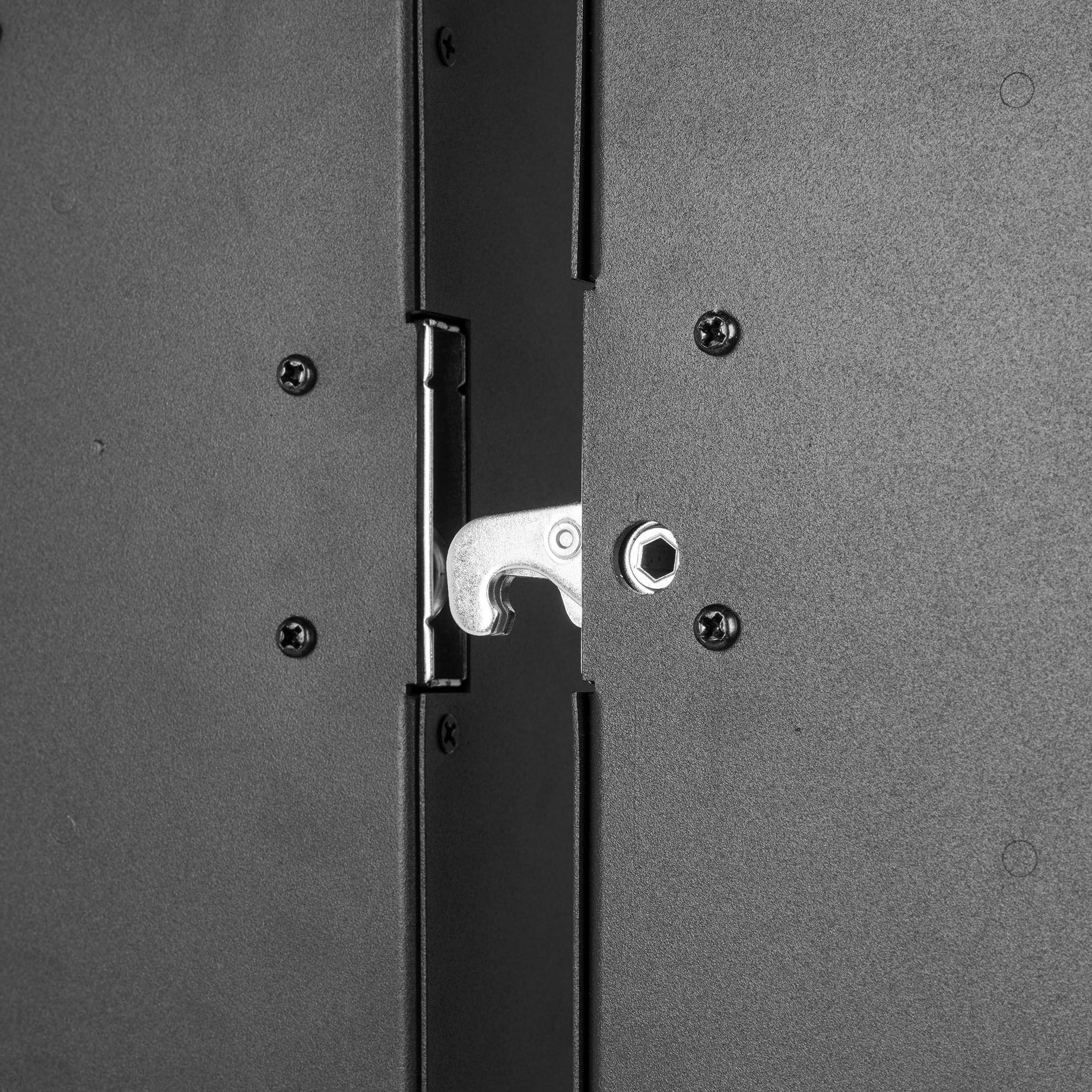

- Easy locking system to connect multiple devices
Specifications
BrandbeamZ Professional
Product serieLCBP series
ColourBlack
Light source
Light source
- 25x 10W RGBW LED
Light source
- 200x RGB SMD LED
Features
Flash Per Second1 - 20 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Sound
DMX Channels27, 175
RDMNo
DMX connector3-pin XLR

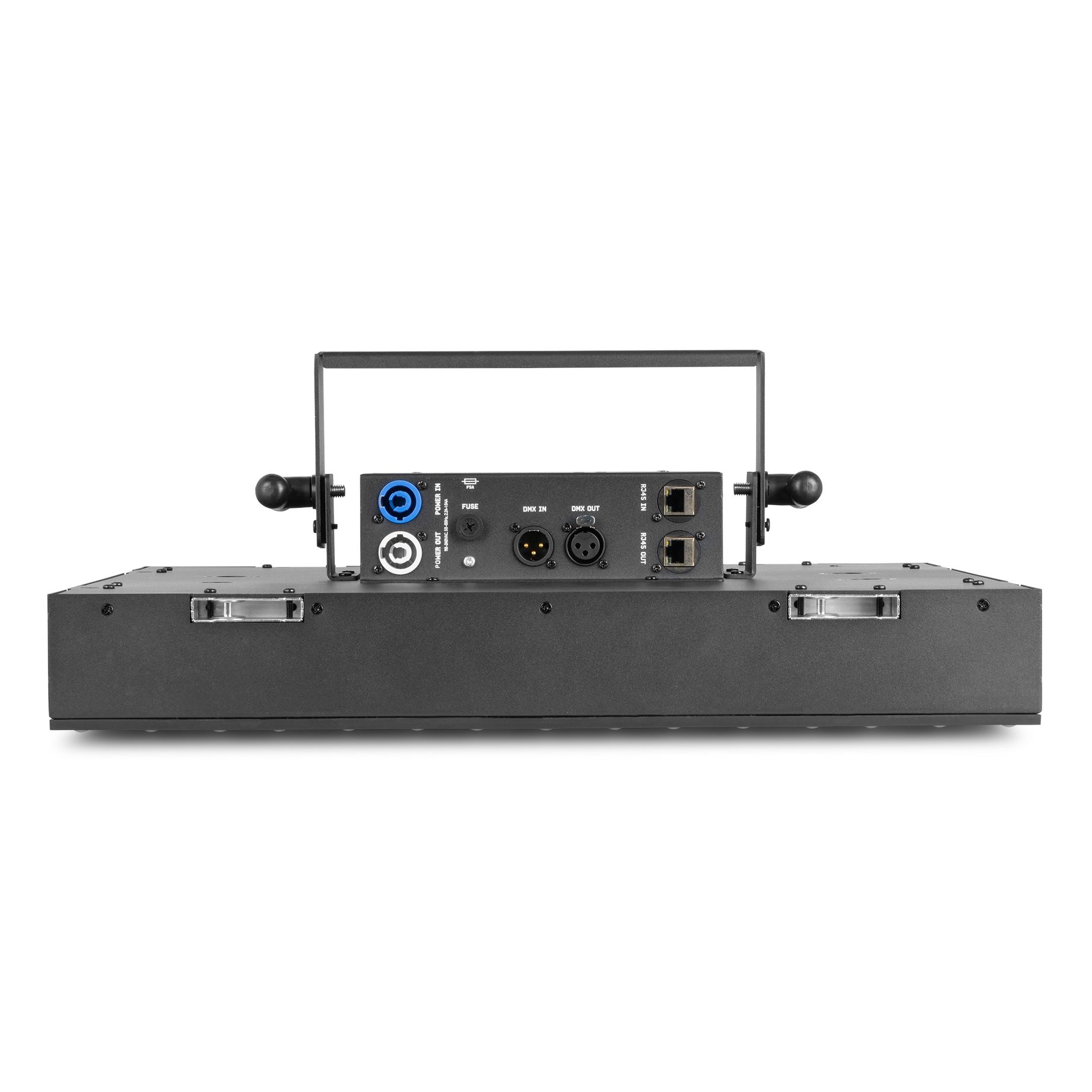

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
- 1x Data - RJ45
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
- 1x Data - RJ45
Hardware features

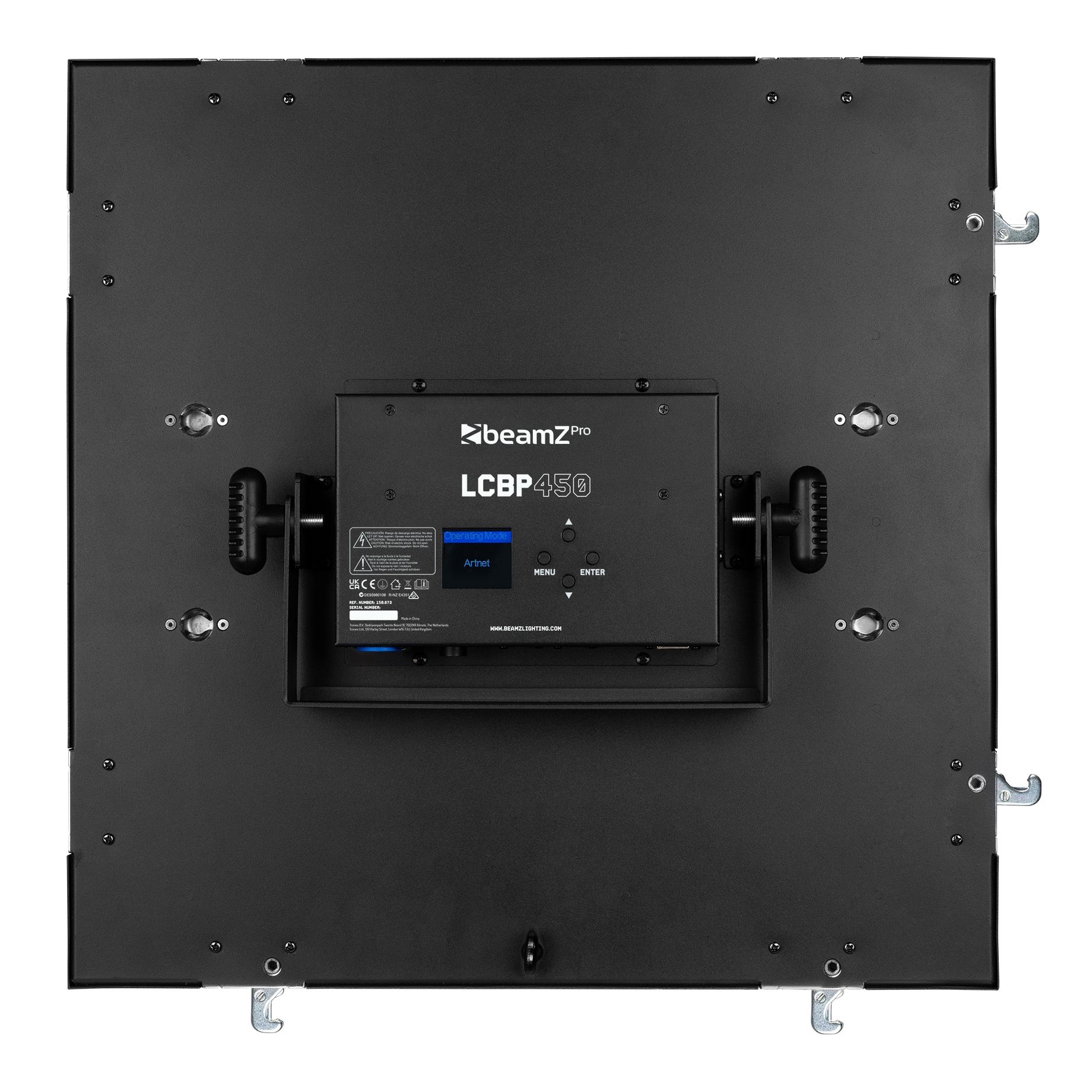

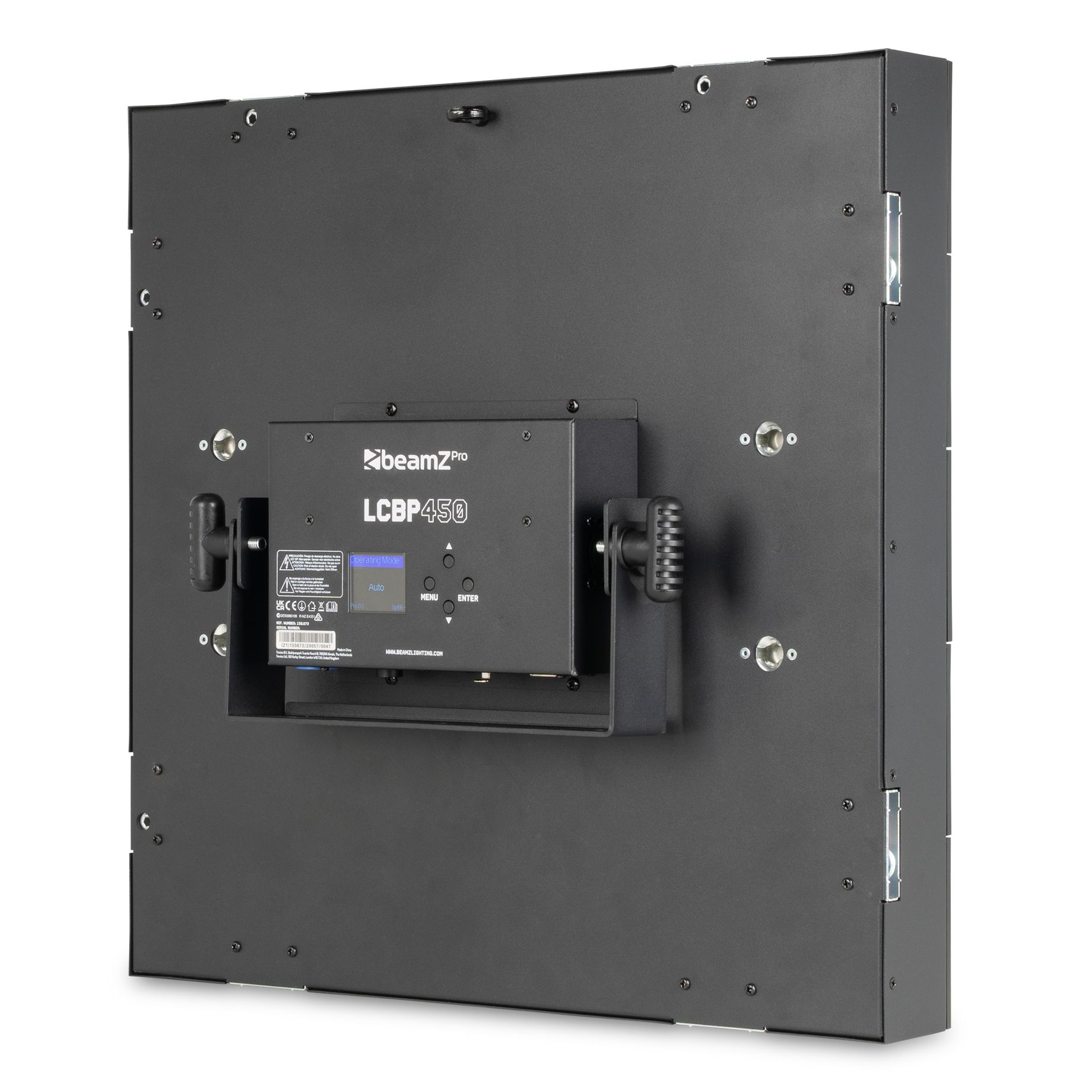

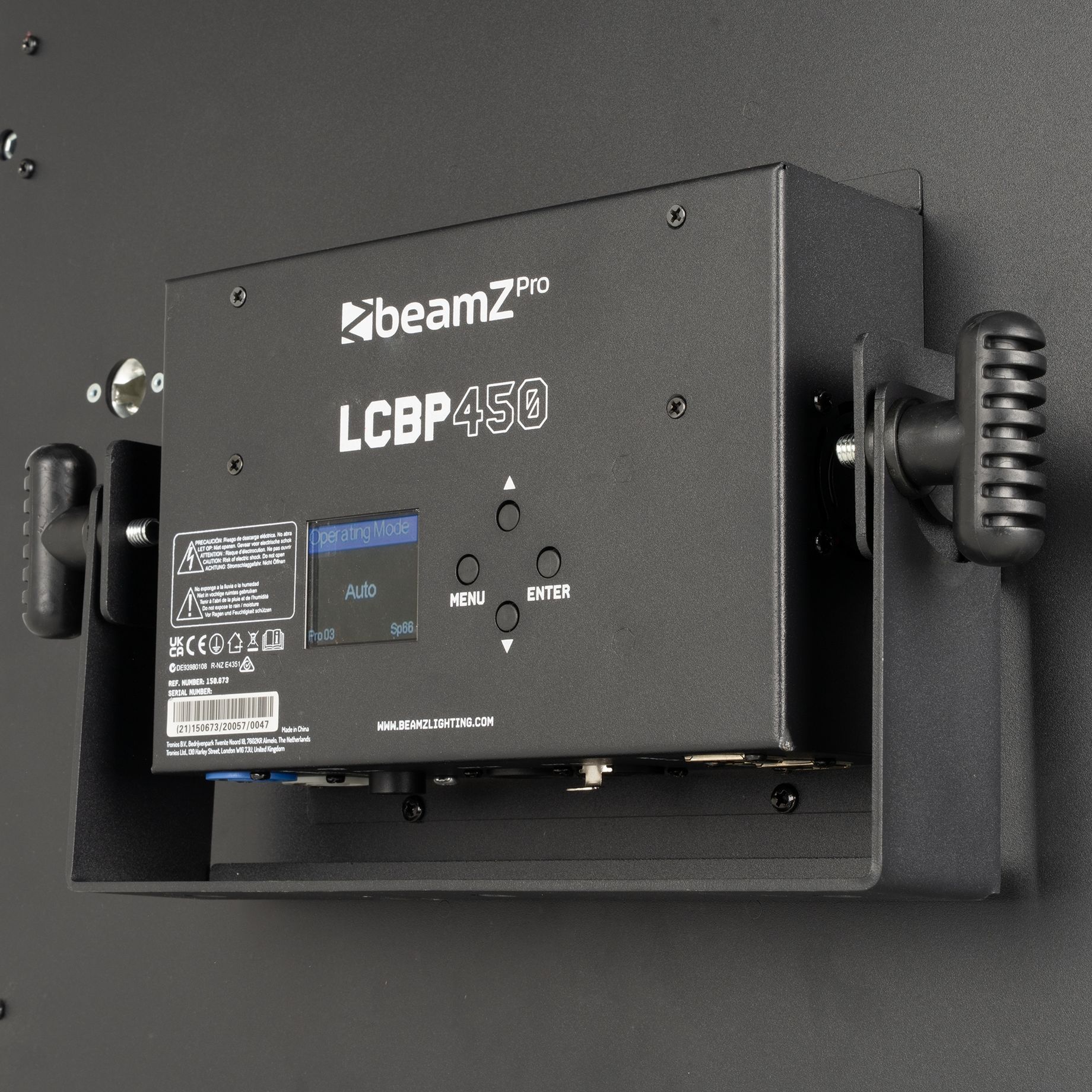

Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 200 x 500 x 500 mm (W x D x H)
Weight
- 8.8 kg
Accessories

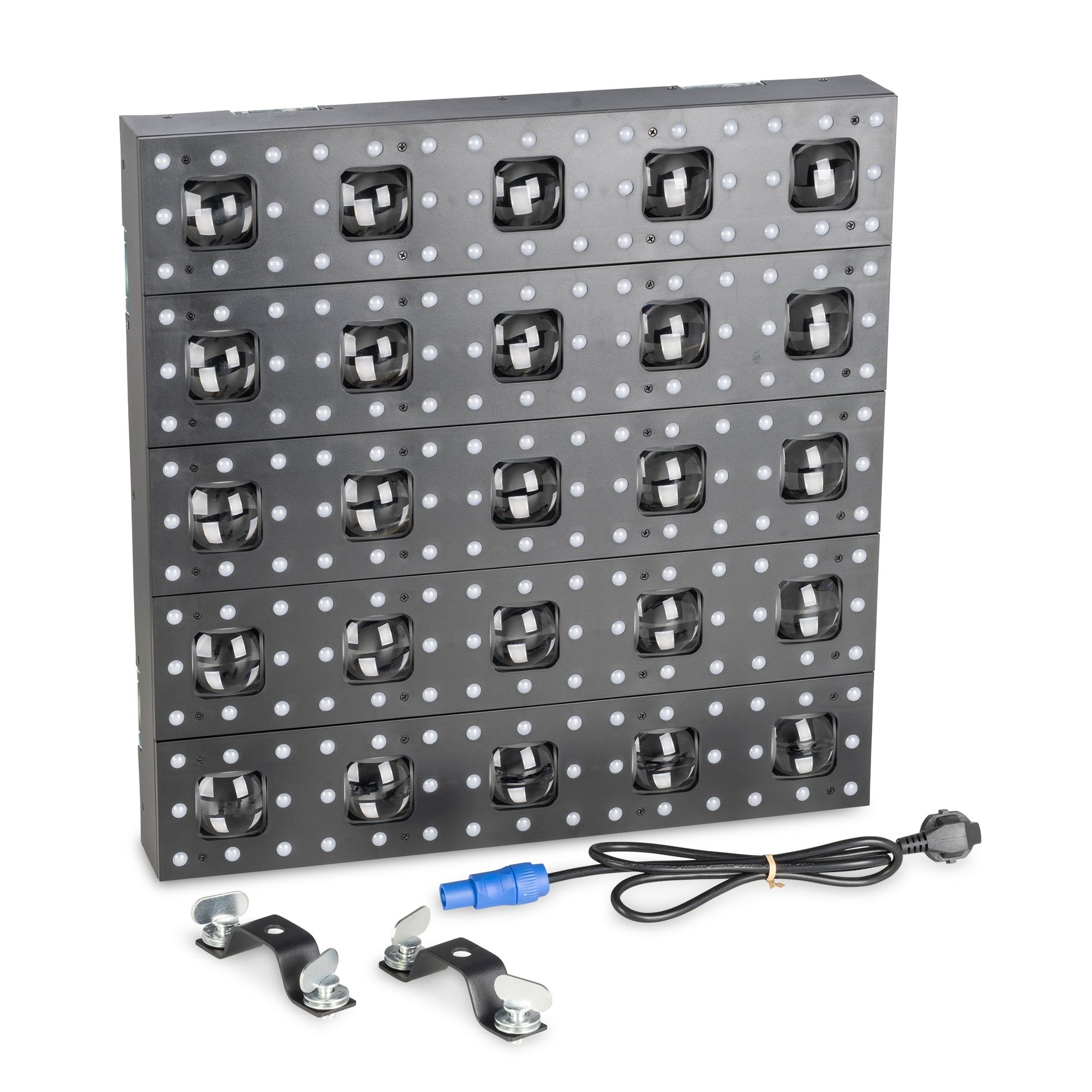

Included Accessories

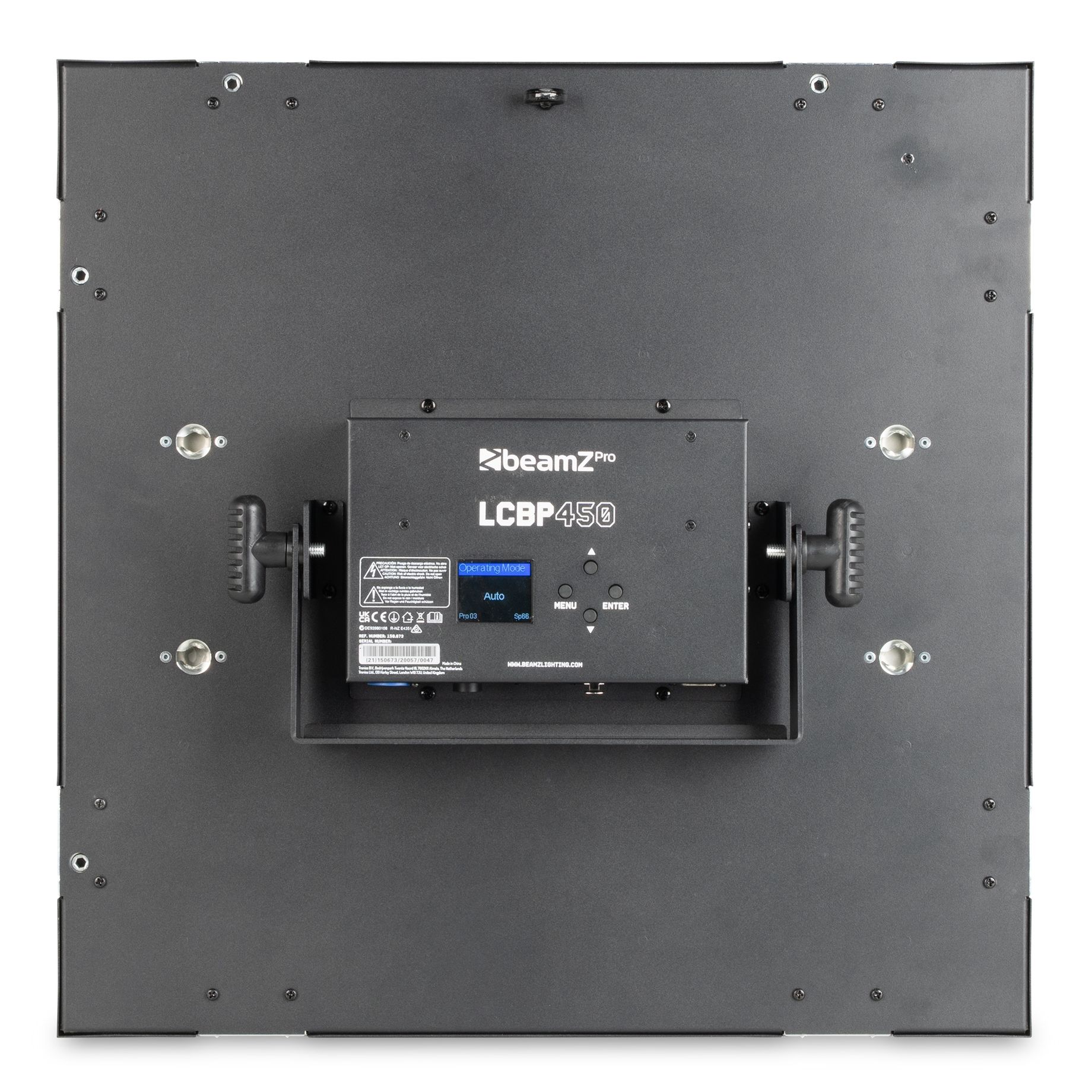

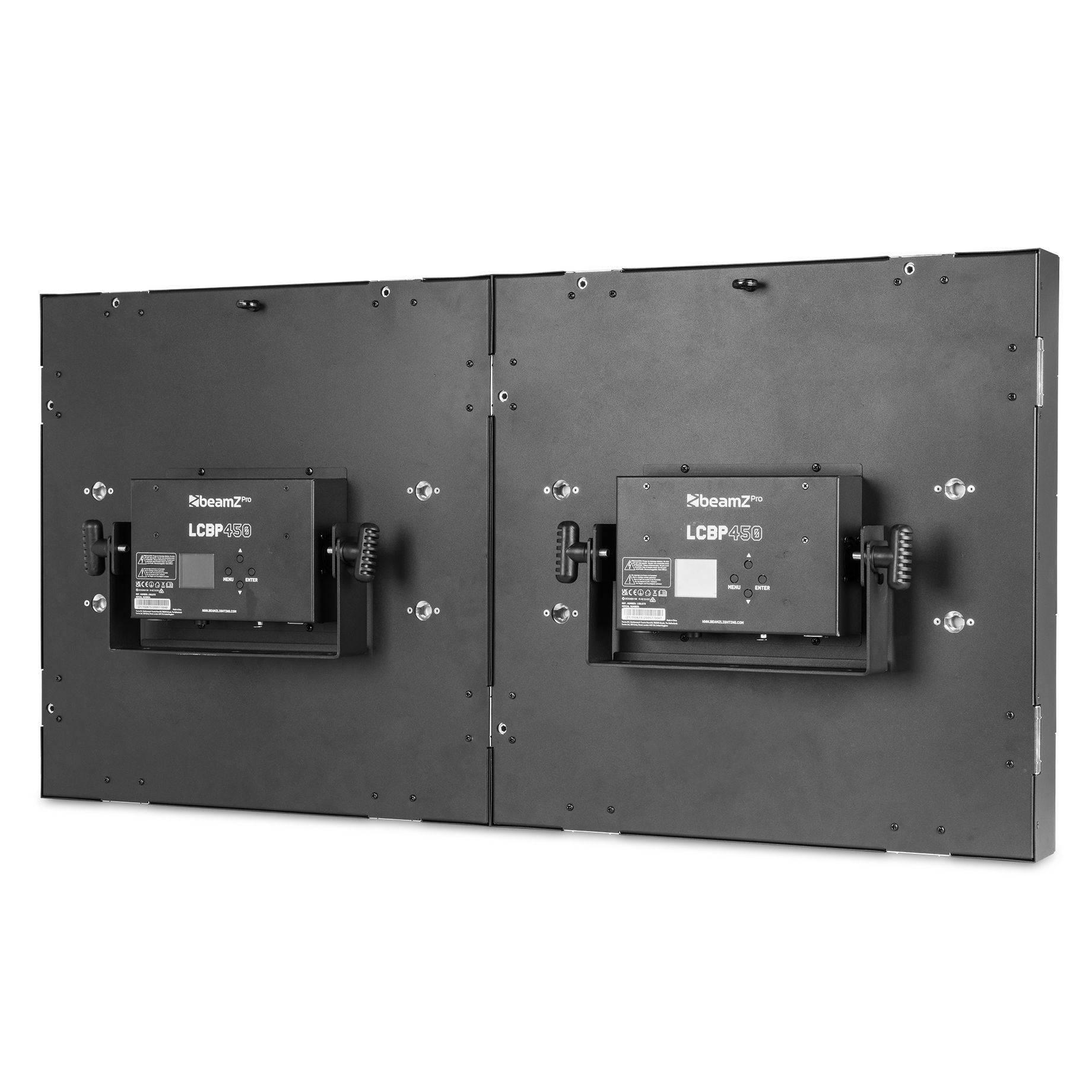

- Mounting bracket
