Hyaden

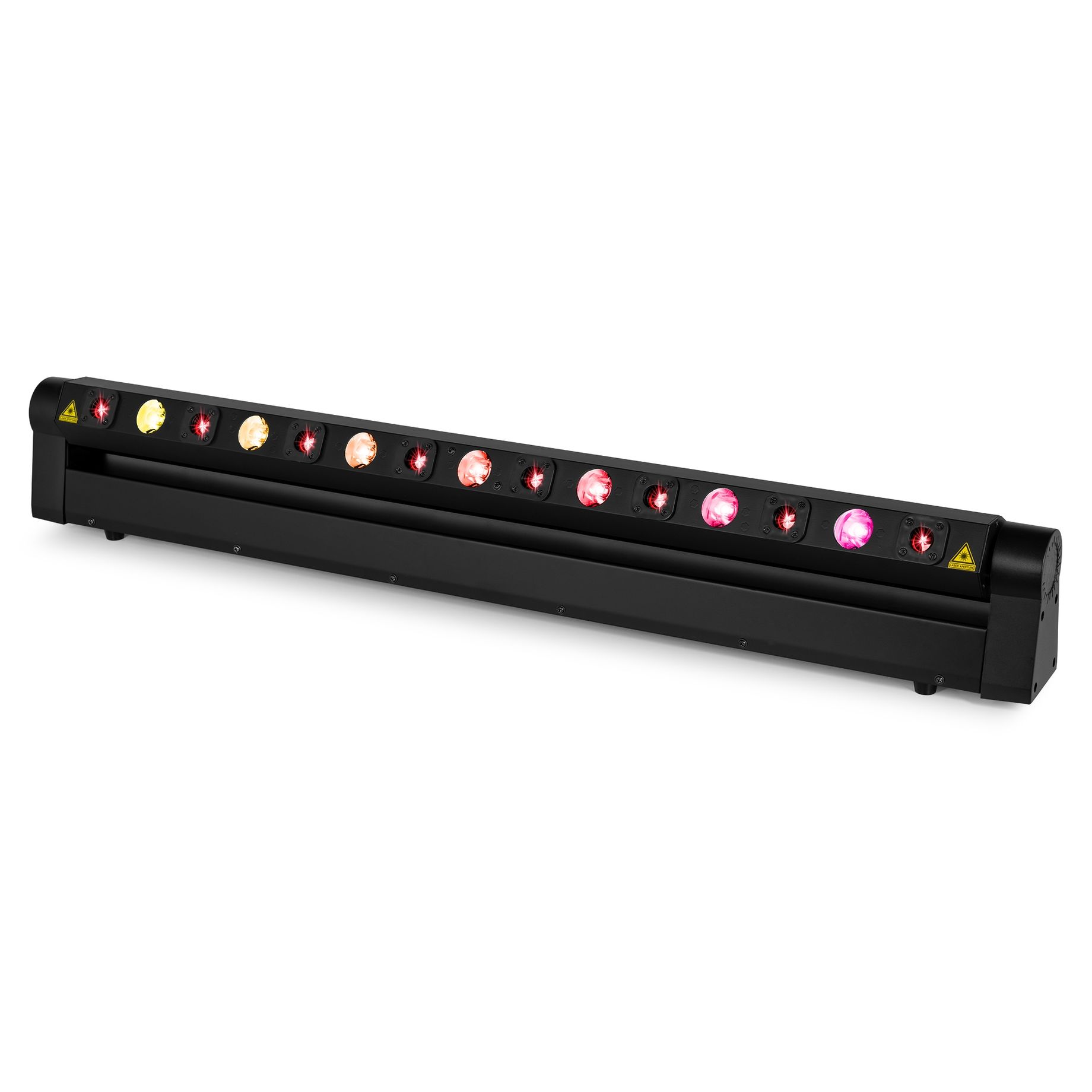

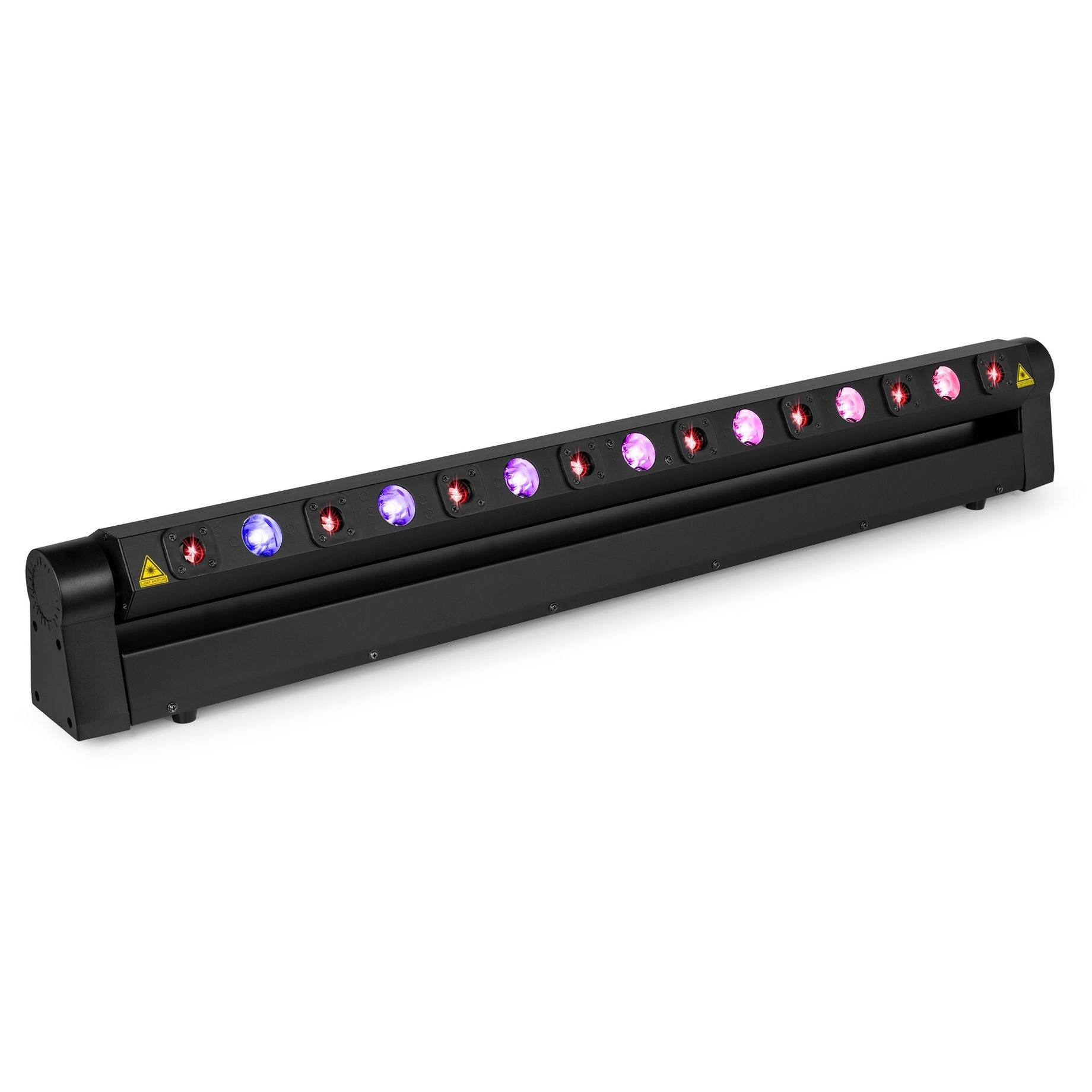

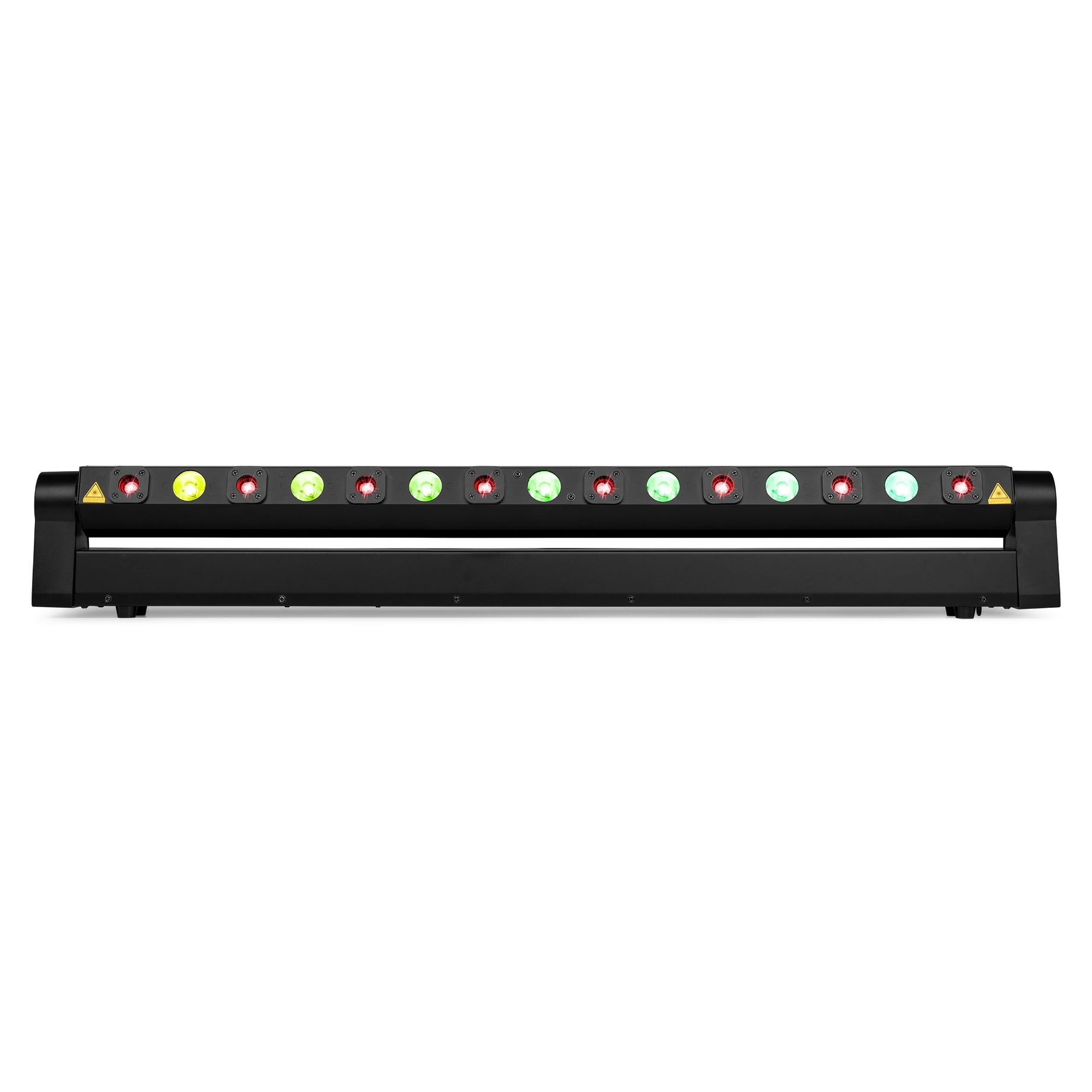

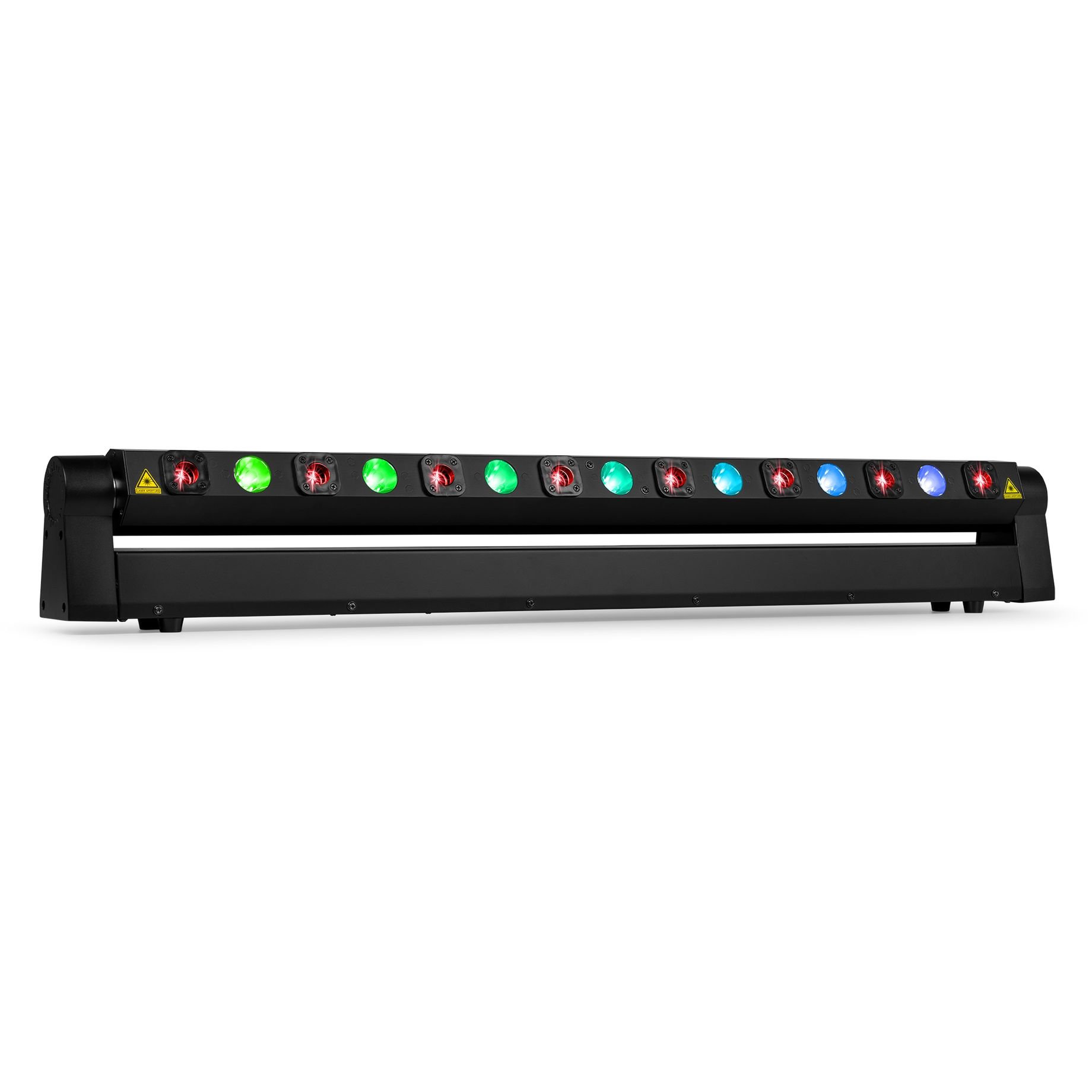

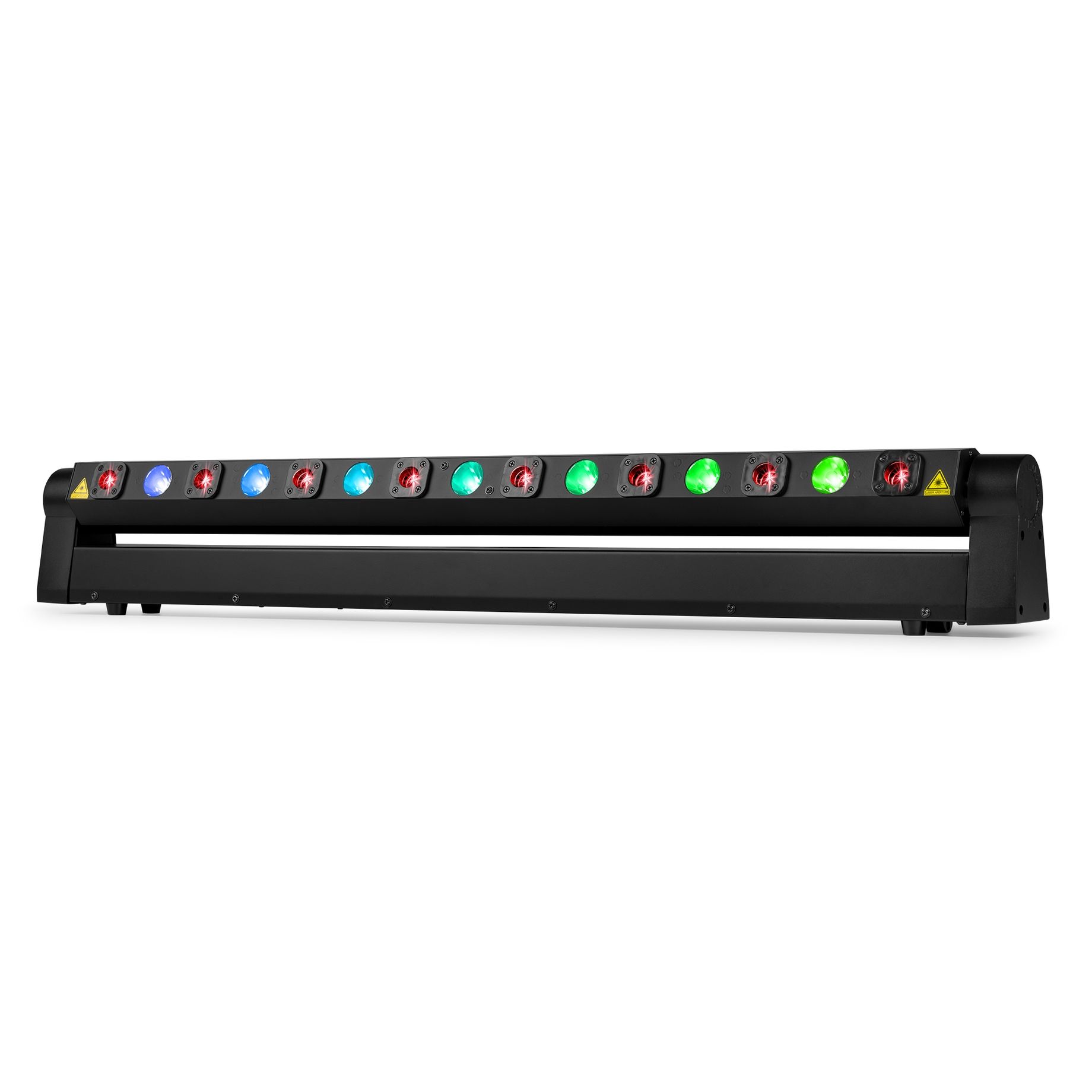

Moving Bar with 7 LED and 8 Laser beams
SKU 152.829
|EAN 8715693355086
+10
All product information
Compare
Hyaden series
Description
Highlights
- Moving Bar with 5° Fat Beam and Red Laser effects
- 7x 3W 4-in-1 LEDs
- RGBW Colour Mixing
- 8x Red (638nM) Laser Beams

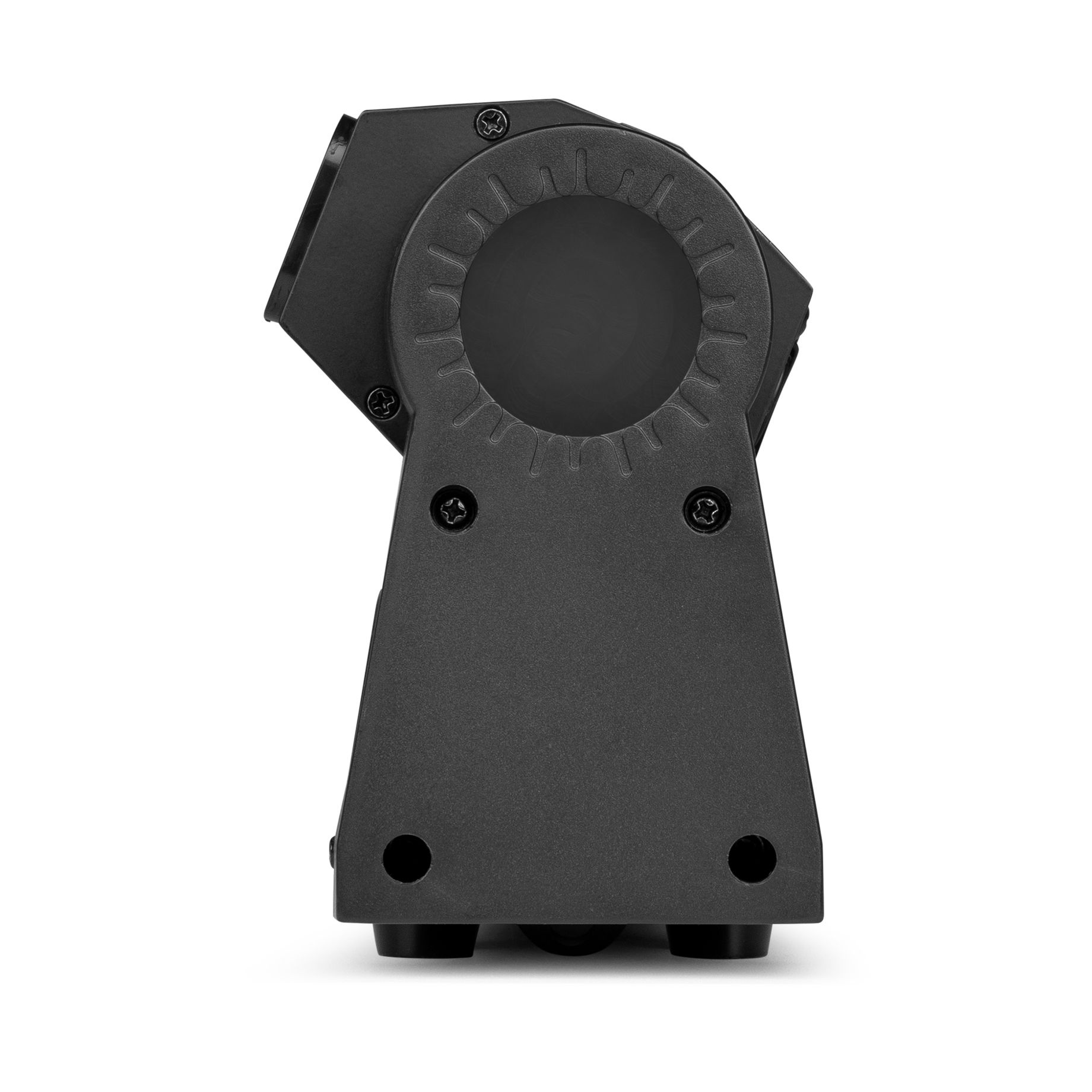

- 200 Degrees tilt movement
- Modulation: TTL
- DMX and Stand-alone mode
- Master/slave function
- Sound activated with adjustable sensitivity
- Auto mode
- Preprogrammed shows and patterns
- DMX in/output via 3-pin XLR
- P-Con connector in/output
- Control panel with LED display
Specifications
BrandbeamZ
Product serieHyaden series
ColourBlack
Light source
Light source: LED bar
- 7x 3W RGBW LED
Laser Red499mW @ 638nm
Control
Control modesDMX, Master/Slave, Manual, Sound
DMX Channels10, 23
DMX connector3-pin XLR

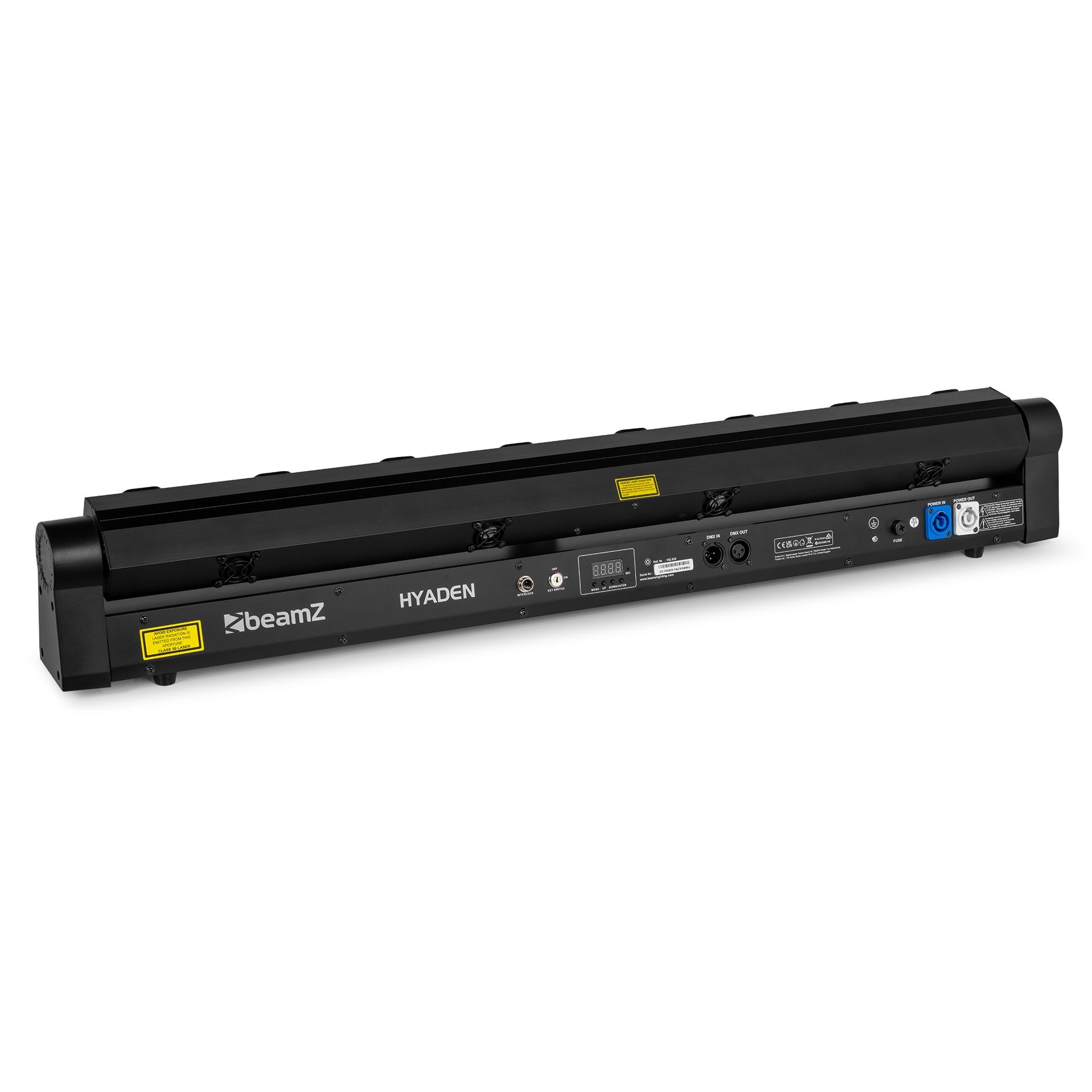

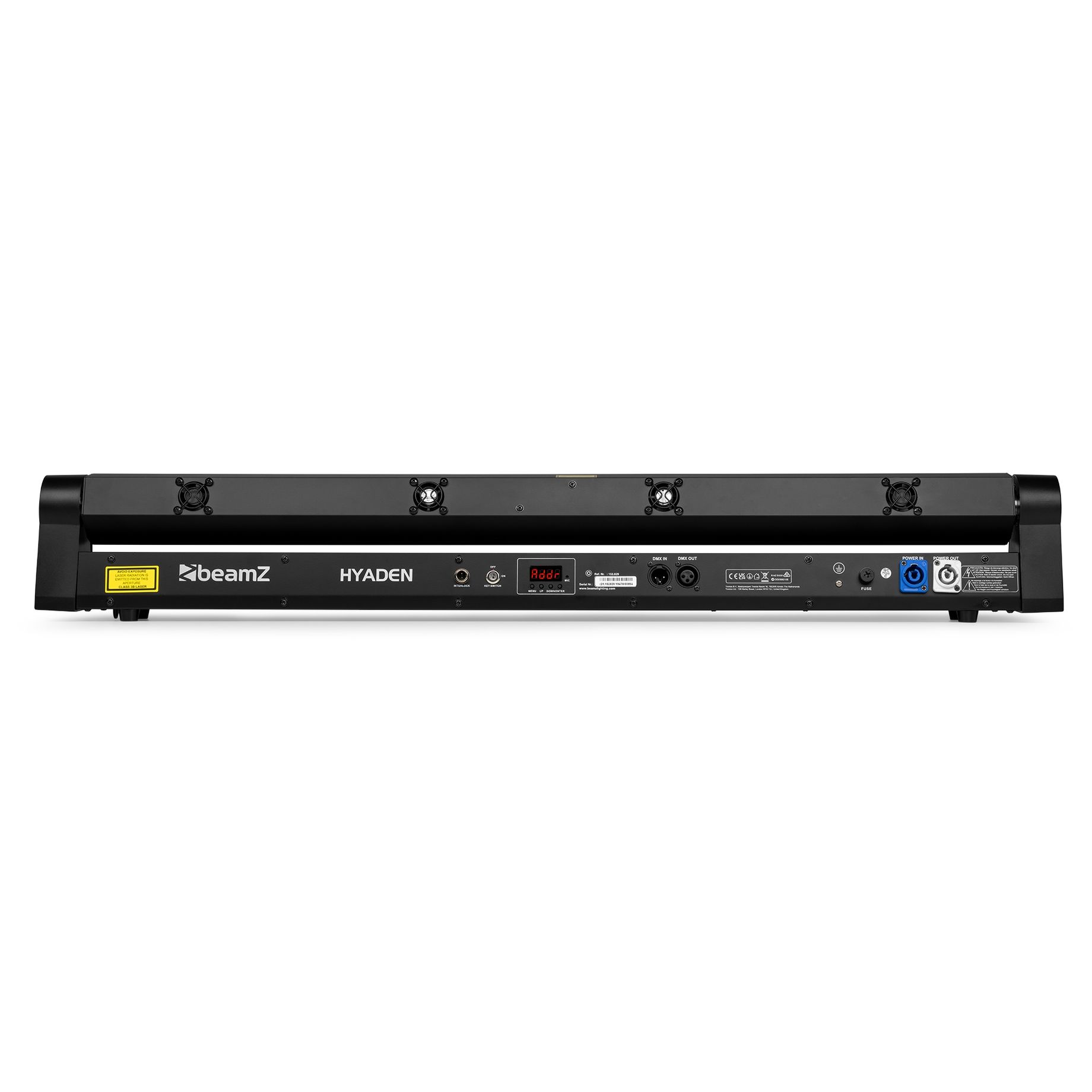

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
Mechanical
Dimensions
- 1000 x 83 x 164 mm (W x D x H)
Weight
- 7.2 kg
Accessories

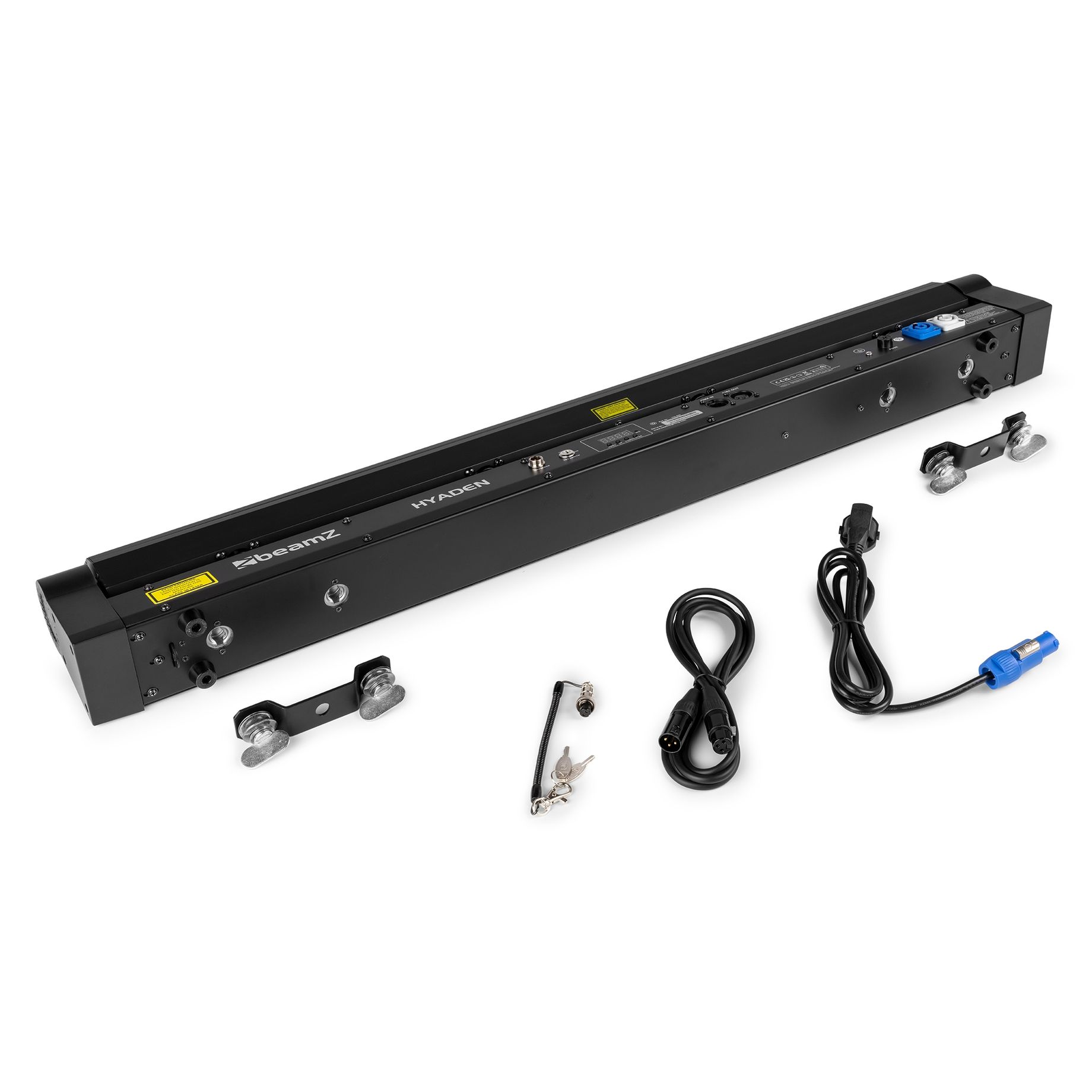

Included Accessories

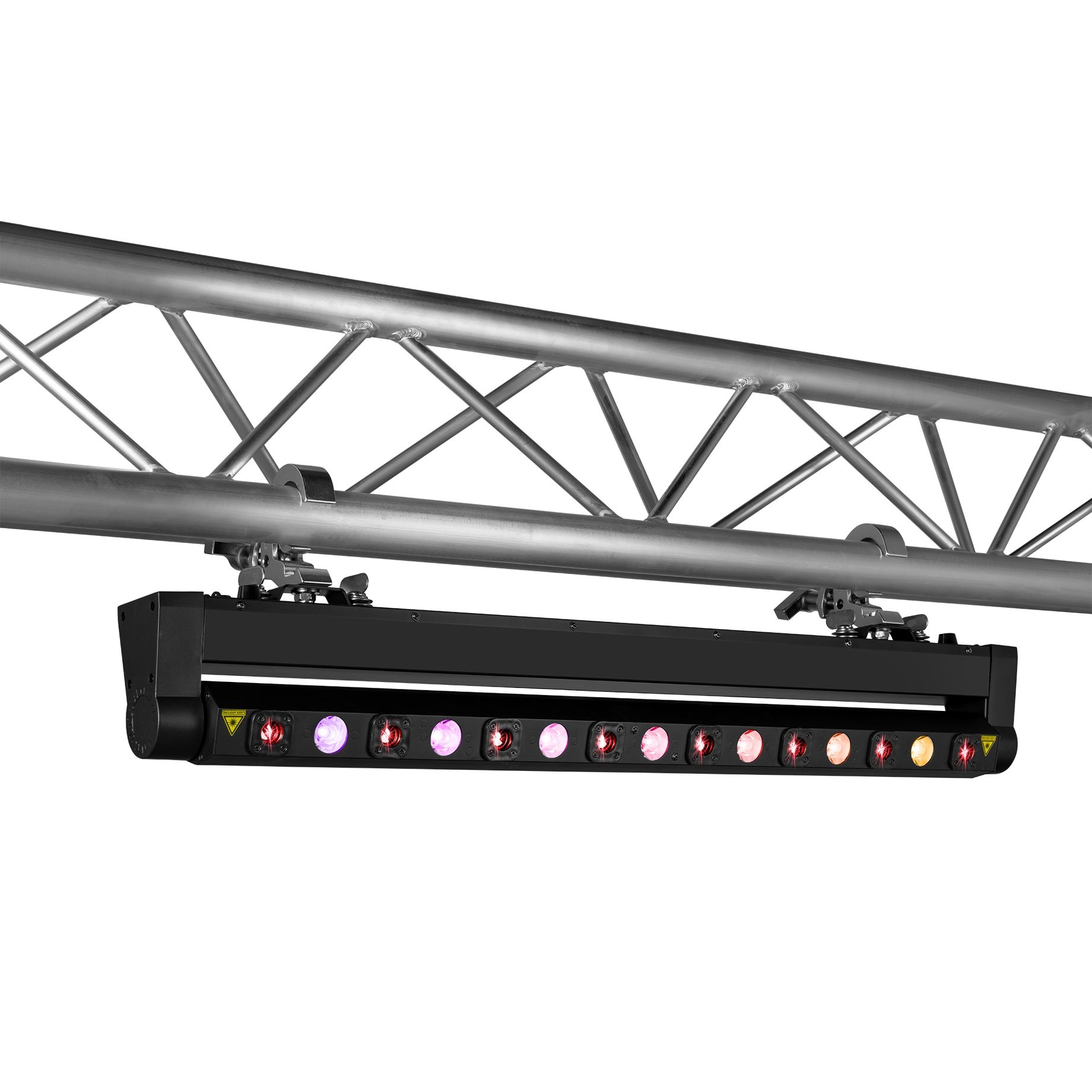

- Mounting bracket
- Power cable
Manuals & Documents
Manual
PDF
