Cobra

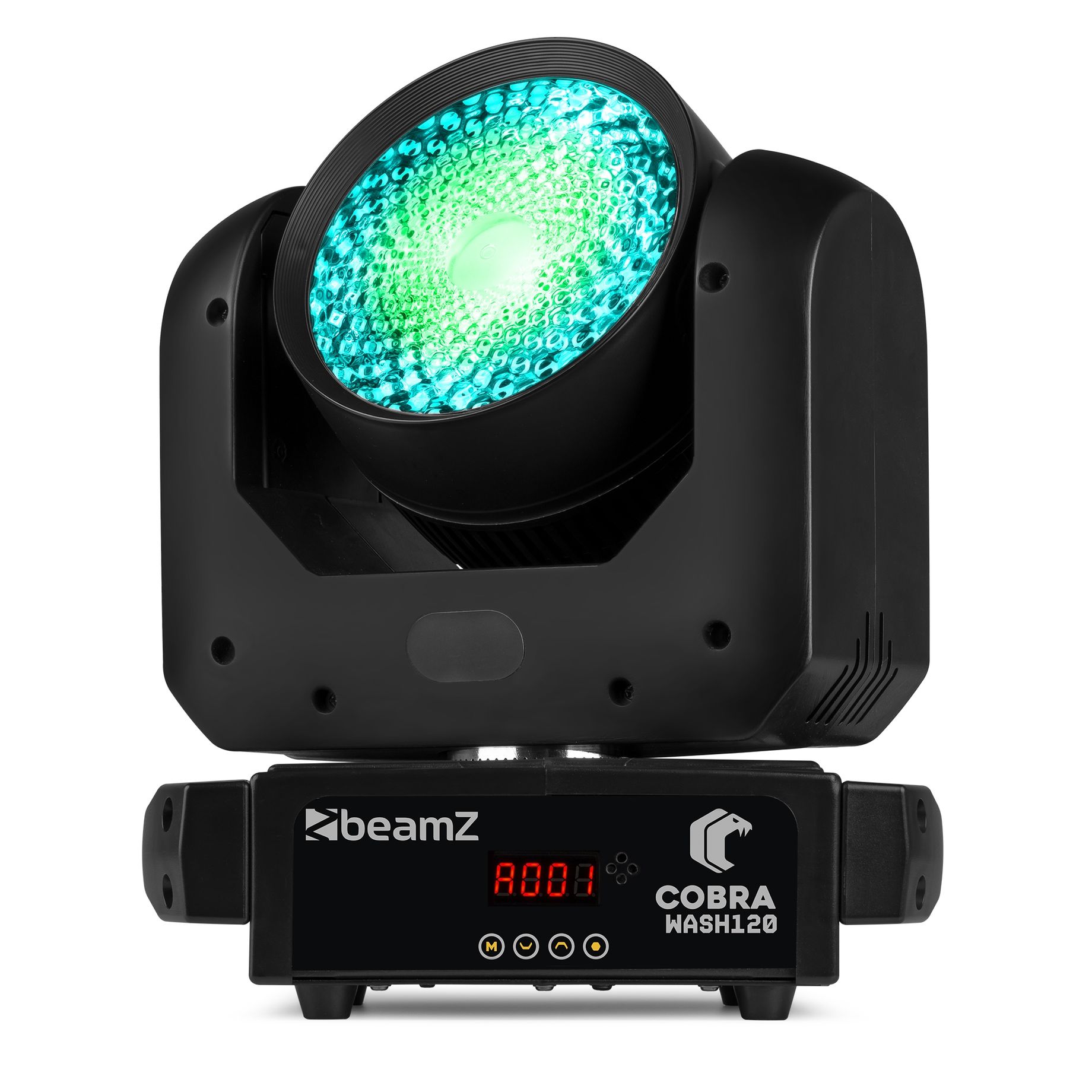

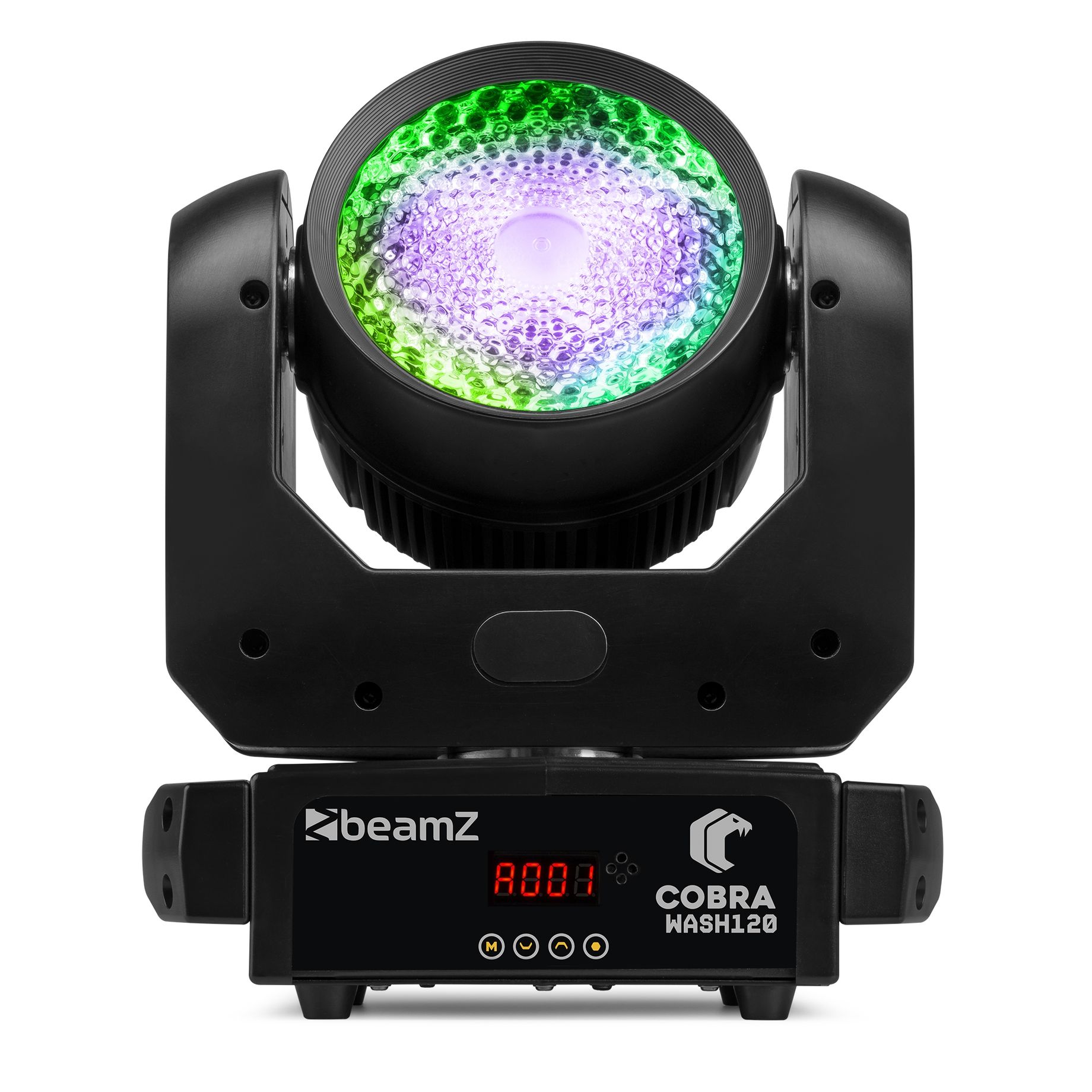

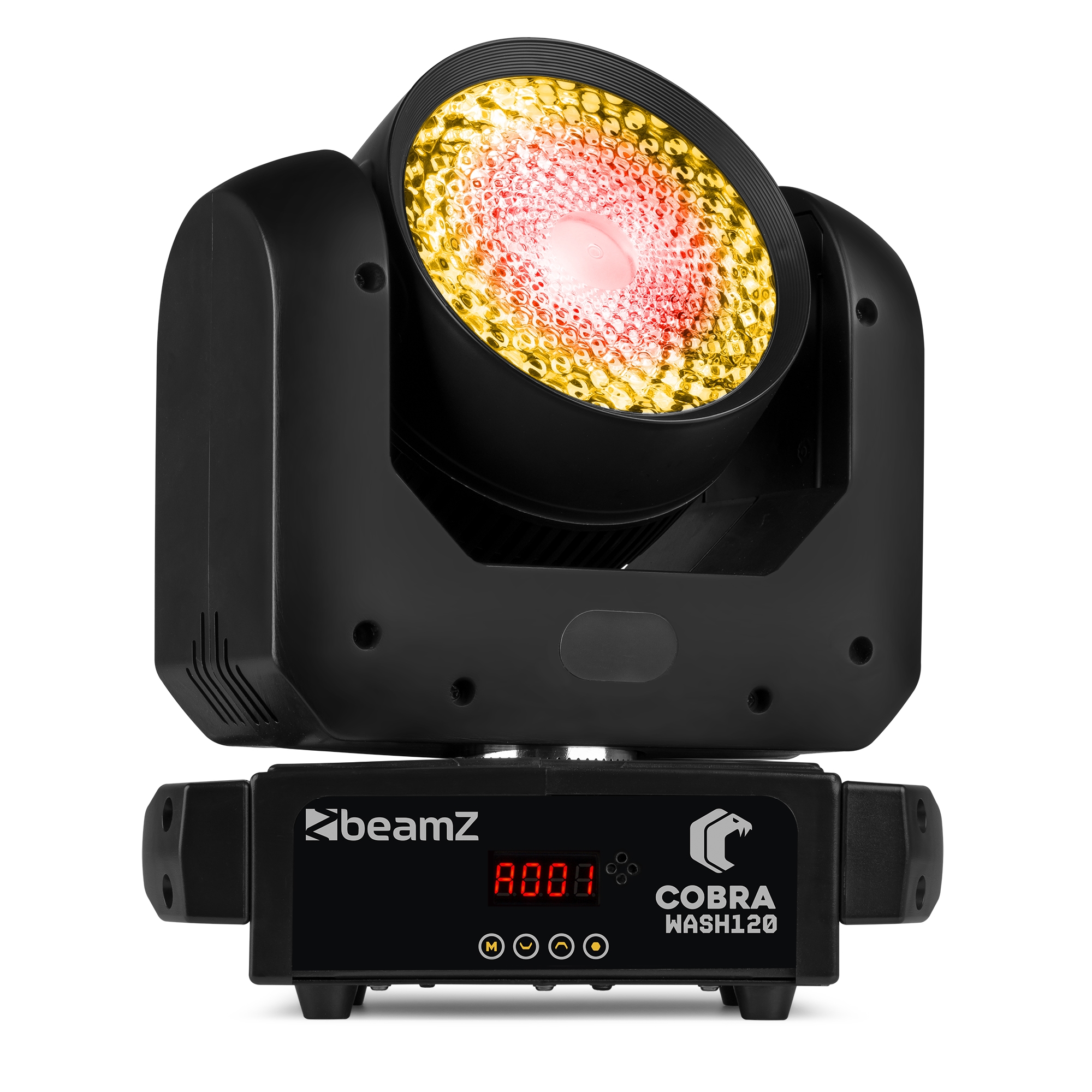

Wash120 LED Moving Head with LED Ring
SKU 150.437
|EAN 8715693352627
+2
All product information
Compare
Cobra series
Description
Highlights
- 120W High Intensity 4-in-1 LED
- Colours: RGBW
- LED Ring: 26x SMD RGB LEDs
- Specially shaped lens
- Control Mode: DMX 512, Master/Slave, Auto, Sound active
- 0-100% Electronic Dimmer
- Pan and Tilt Range: 540° pan / 205° tilt
- 16bit Fine Pan/Tilt control
- Control panel with LED display
- DMX in/output via 3-pin XLR
- P-Con input
- P-Con cable included
Specifications
BrandbeamZ
Product serieCobra series
ColourBlack
Moving head typeWash
Light source
Light source: Wash
- 1x 120W RGBW LED
Light source: Aura Effect Ring
- 26x RGB SMD LED
Illuminance13860 lx @ 1m
Optics
Beam angle
- 24°
ZoomNo
Movement
Pan Movement540°
Tilt Movement205°
Features
Gobo ShakeNo
Interchangeable GoboNo
Frost FilterNo
Flash Per Second1 - 22 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels22
RDMNo
DMX connector3-pin XLR

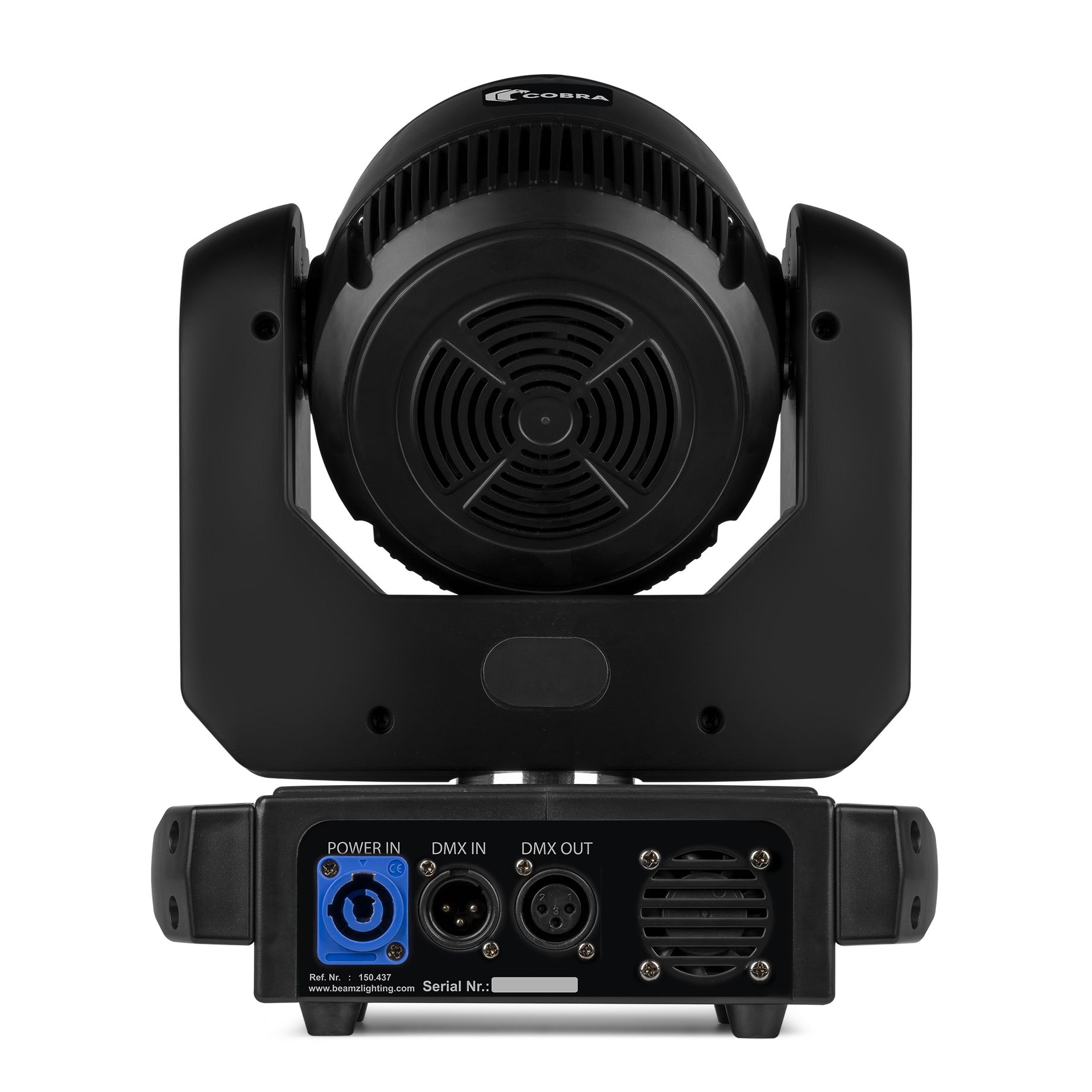

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x DMX - 3-pin XLR (F)
Hardware features
Display typeLED
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 220 x 240 x 290 mm (W x D x H)
Weight
- 3.5 kg
Accessories
Included Accessories
- Mounting bracket
- Power cable
Manuals & Documents
Manual
PDF
