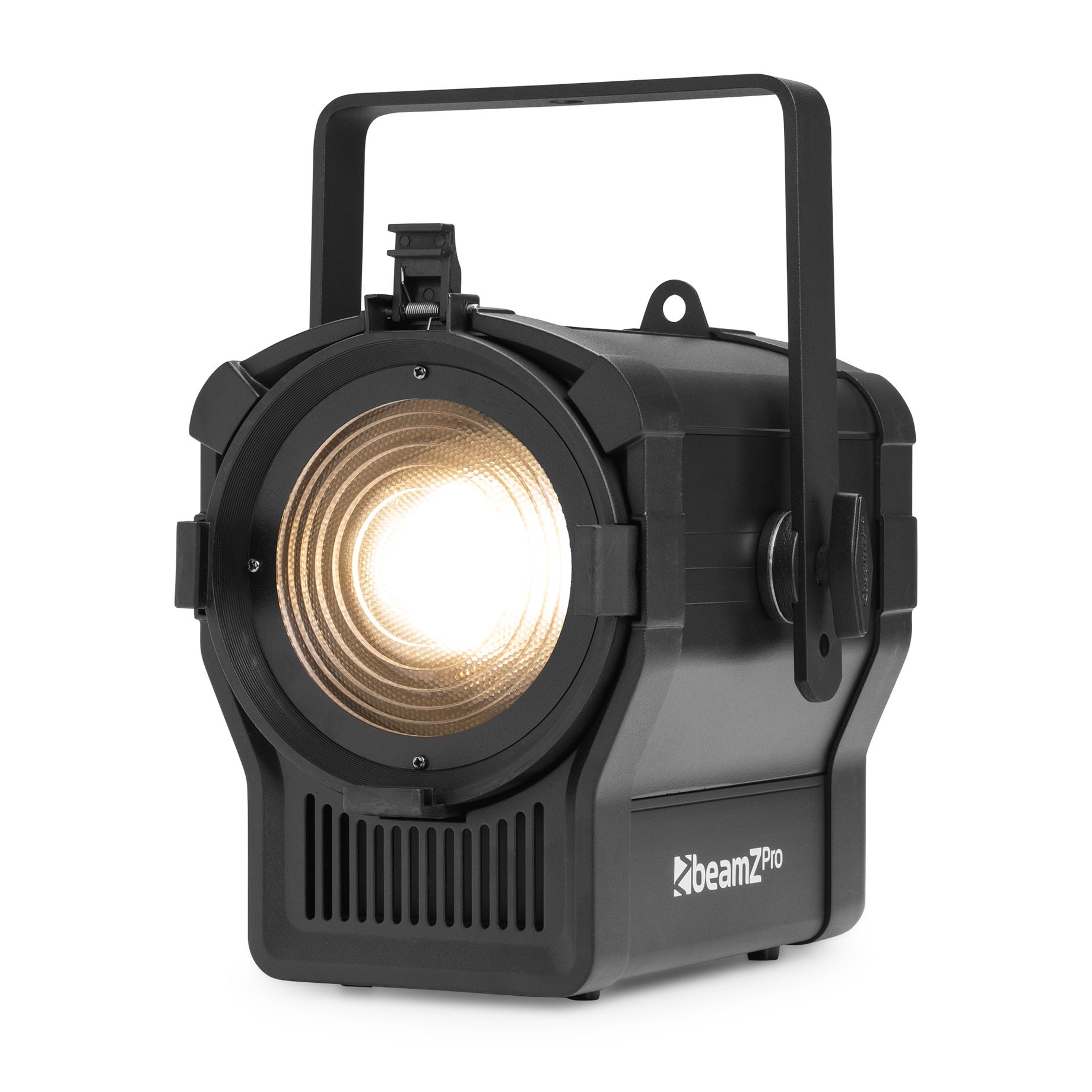

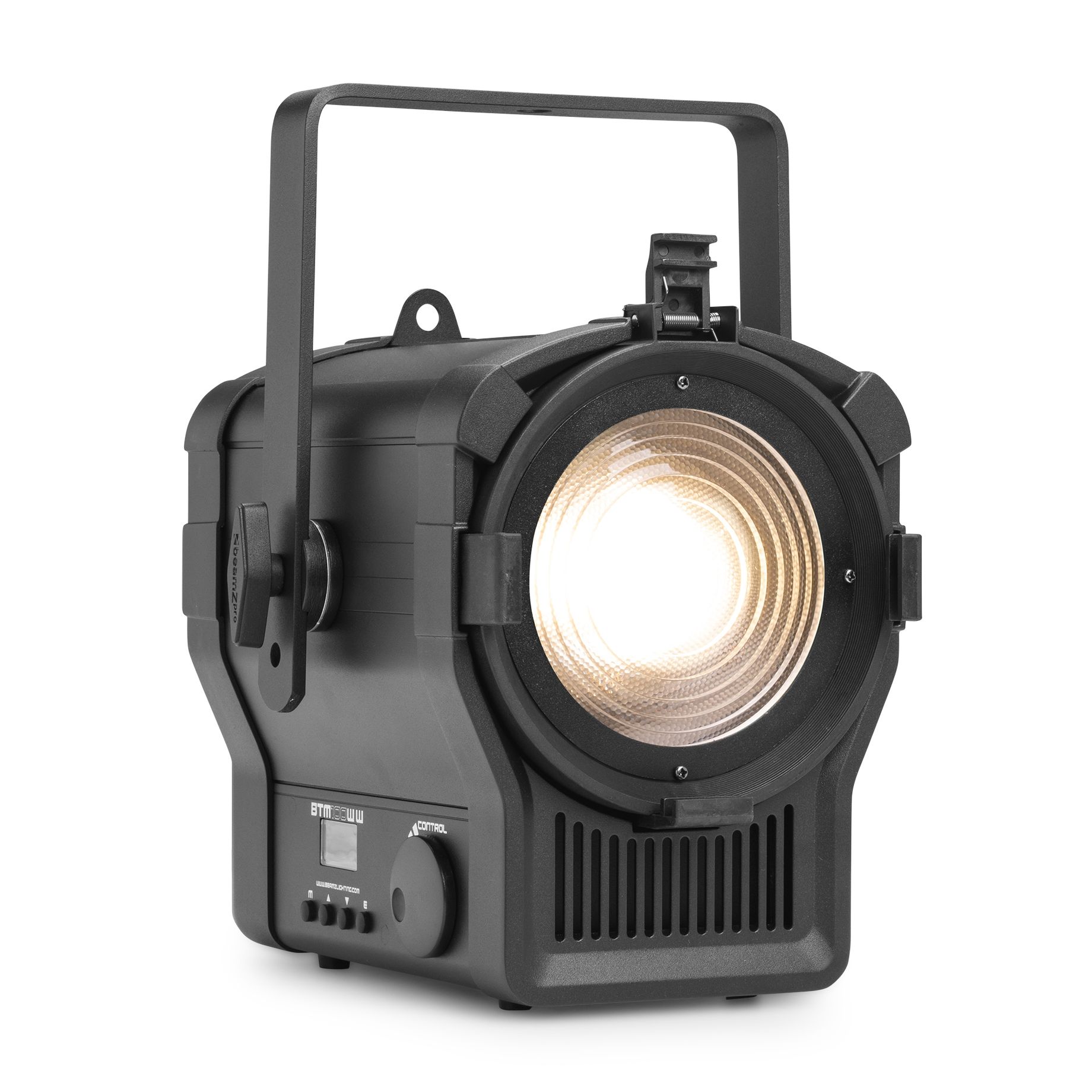

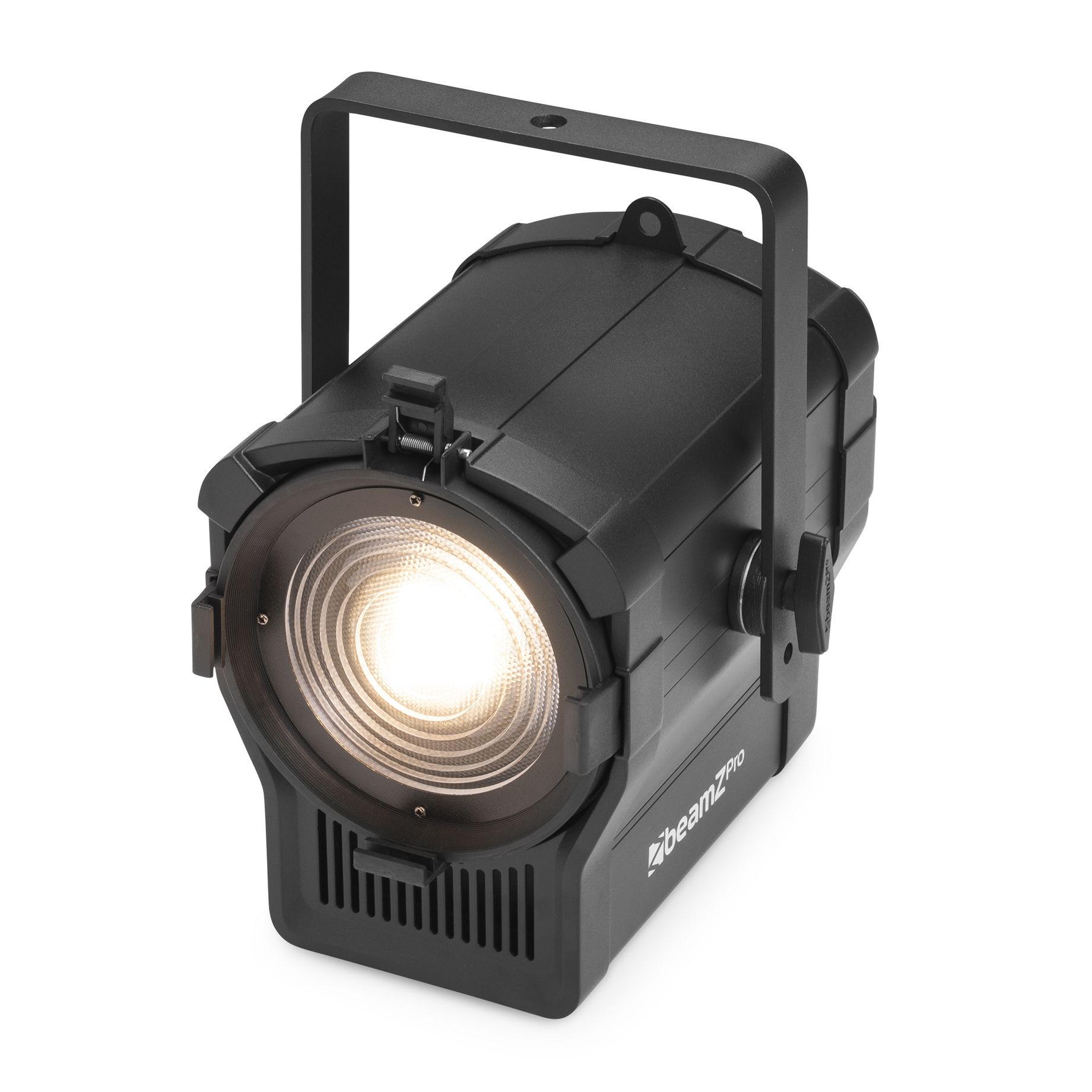

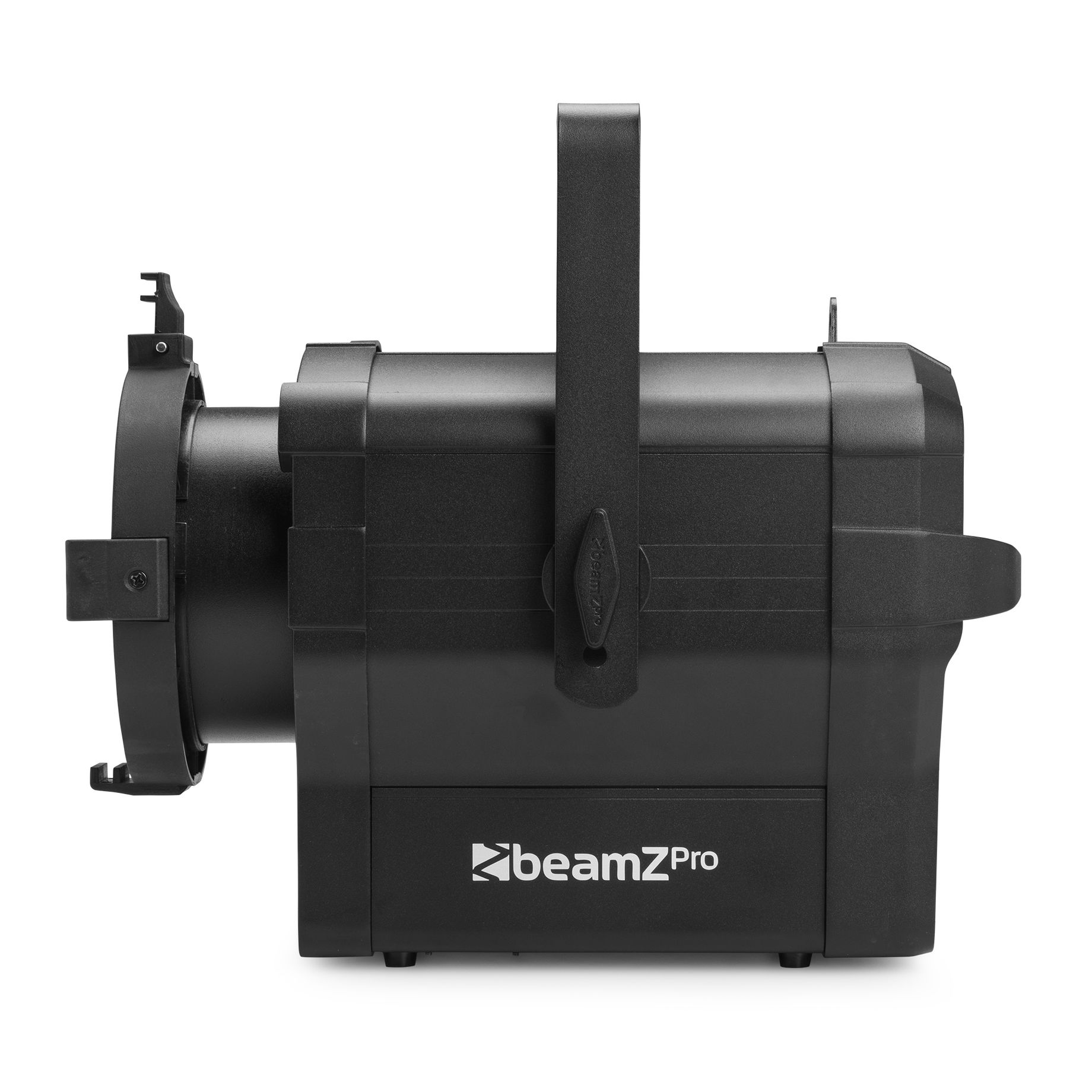

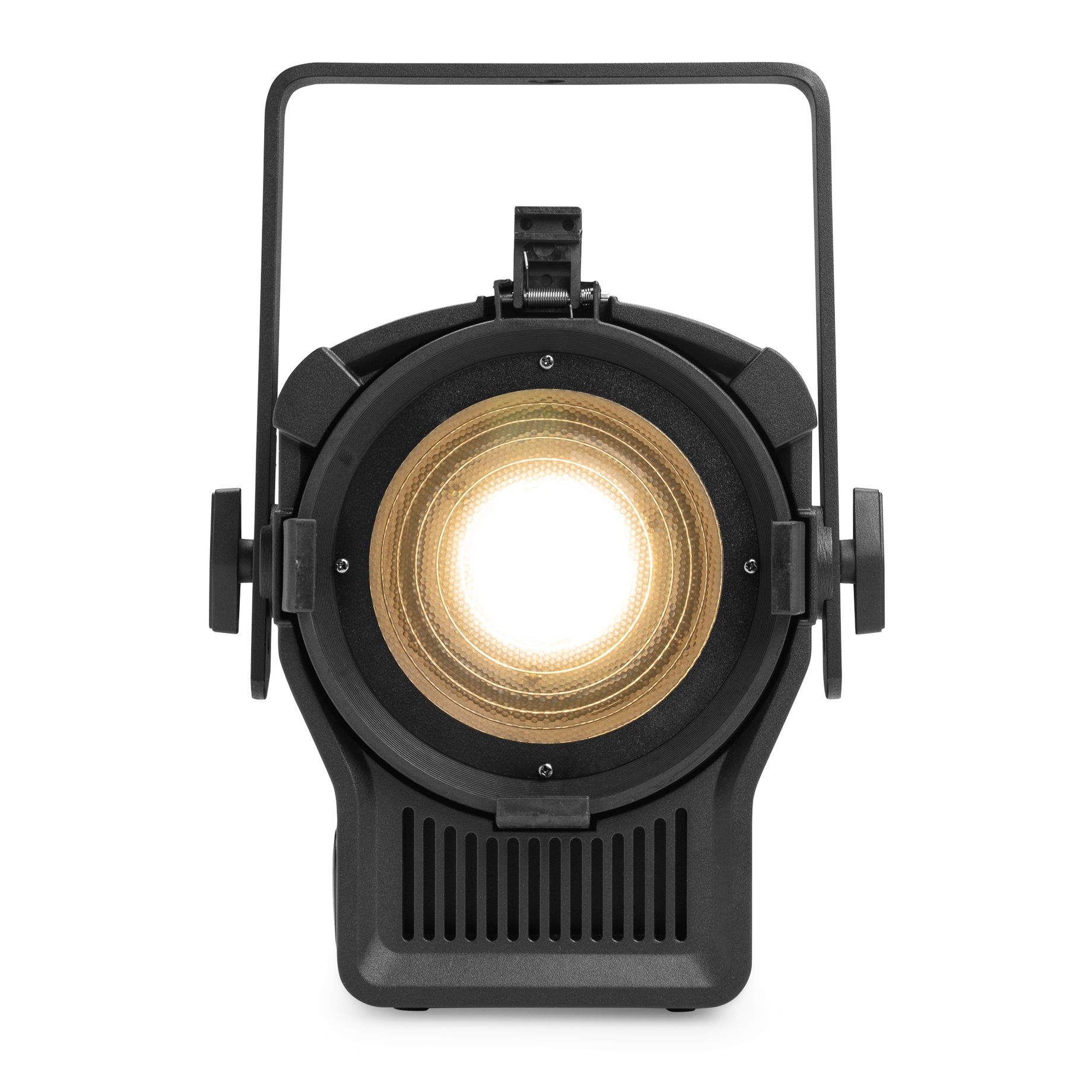

BTM100WW
Fresnel Zoom 100W WW 3200K
SKU 155.109
|EAN 8715693359329
+5
All product information
Compare
BTM series
Description
Highlights
- 100W Warm White COB LED
- Colour Temperature: 3200K
- Lifetime LED: 50.000 hours
- 15° to 45° Motorized zoom
- Compact and lightweight Aluminium body
- HQ optical system
- CRI 97 (Colour Rendering Index)
- 16 bit dimming via DMX
- Flicker free with selectable PWM
- OLED Display
- DMX (3/5-pin), Manual and Master/Slave control options
- Intelligent temperature control and silent mode
- IP65 Powerconnector in&out
Specifications
BrandbeamZ Professional
Product serieBTM series
ColourBlack
Light source
Light source
- 1x 100W Warm white COB LED (3200K)
Illuminance71245 lx @ 1m
CRI≥97
Optics
Beam angle: Spot
- 15 - 55
ZoomYes
Features
Flash Per Second1 - 25 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels2, 3, 5
DMX connector3-pin XLR, 5-pin XLR

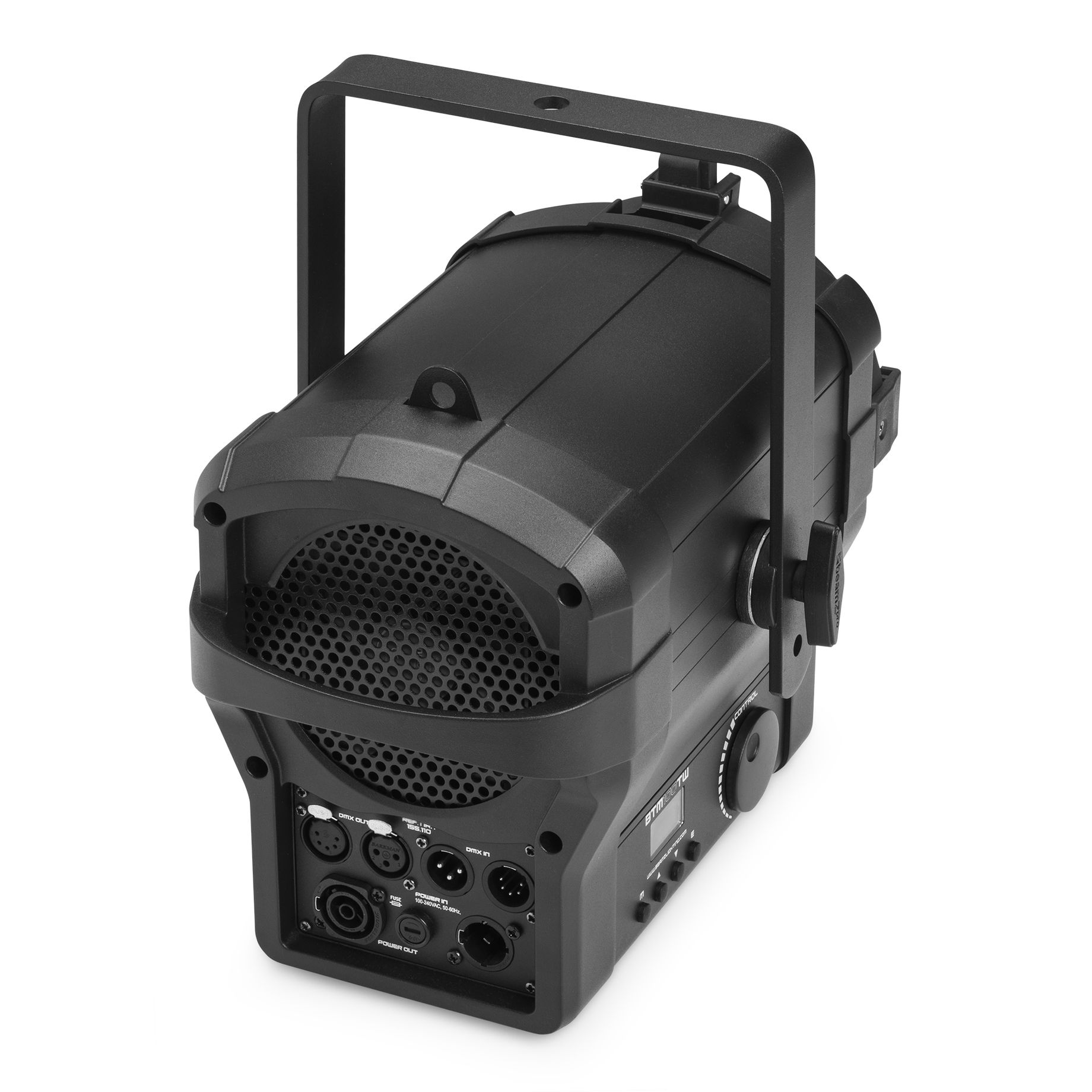

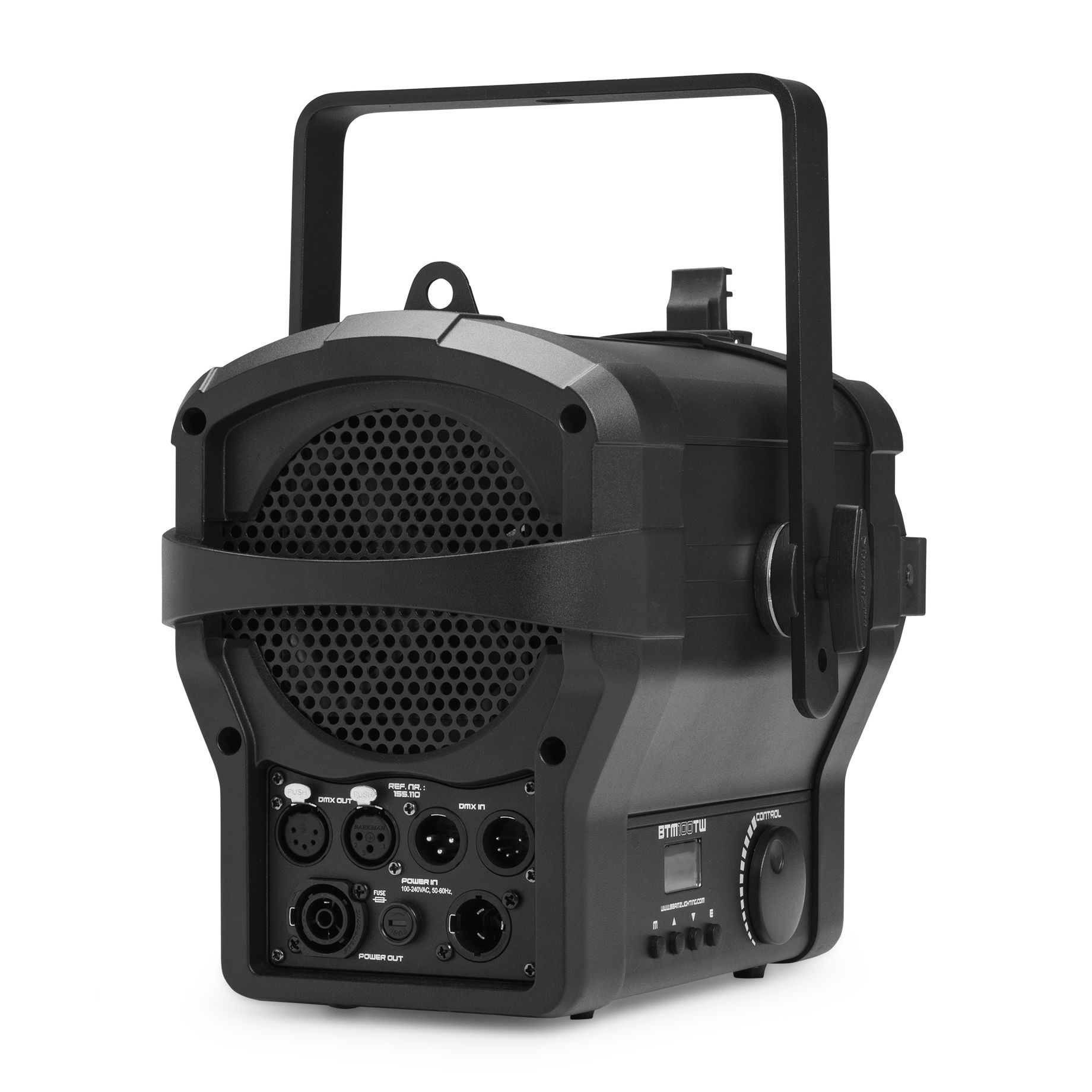

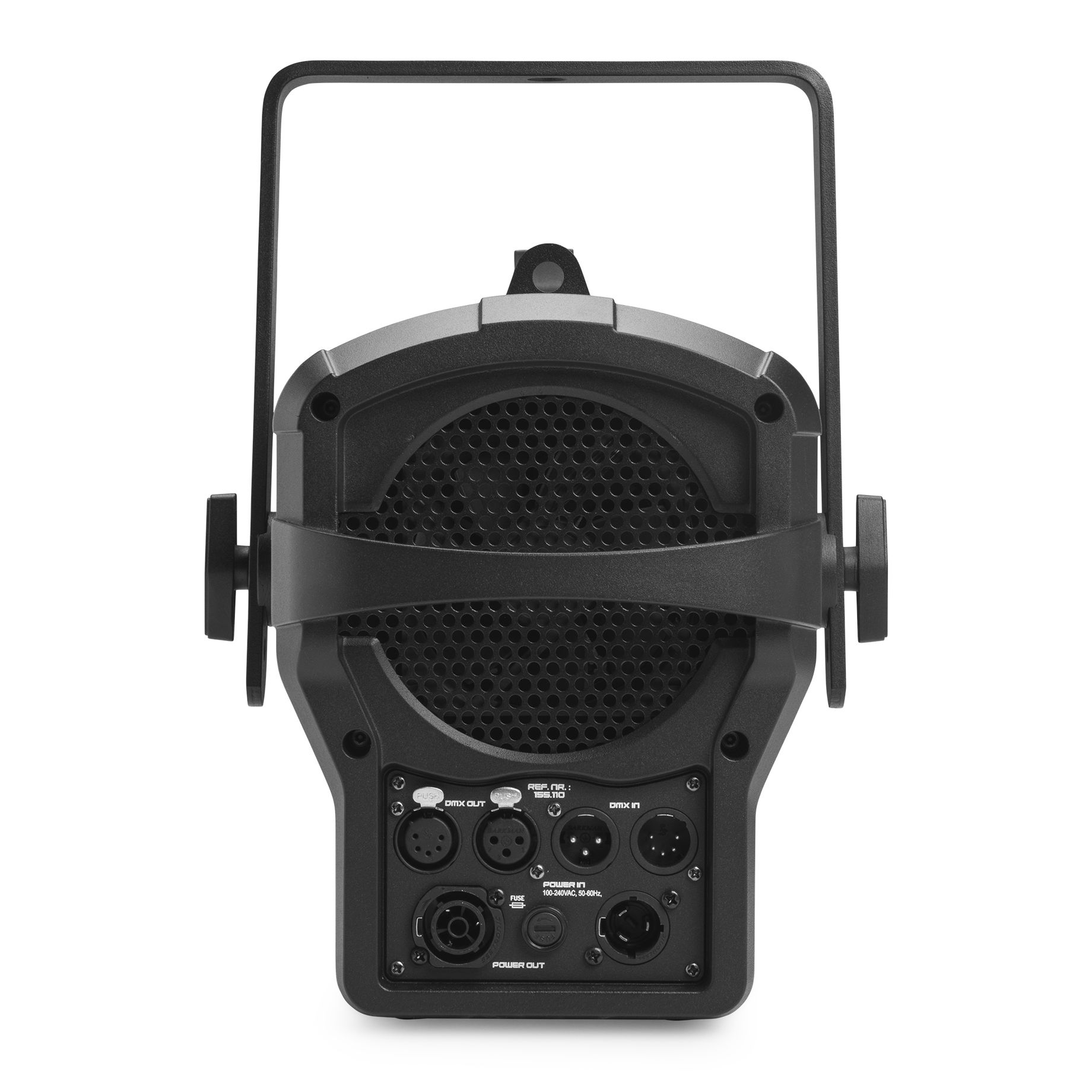

Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR (M)
- 1x DMX - 5-pin XLR (M)
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 3-pin XLR (F)
- 1x DMX - 5-pin XLR (F)
Hardware features

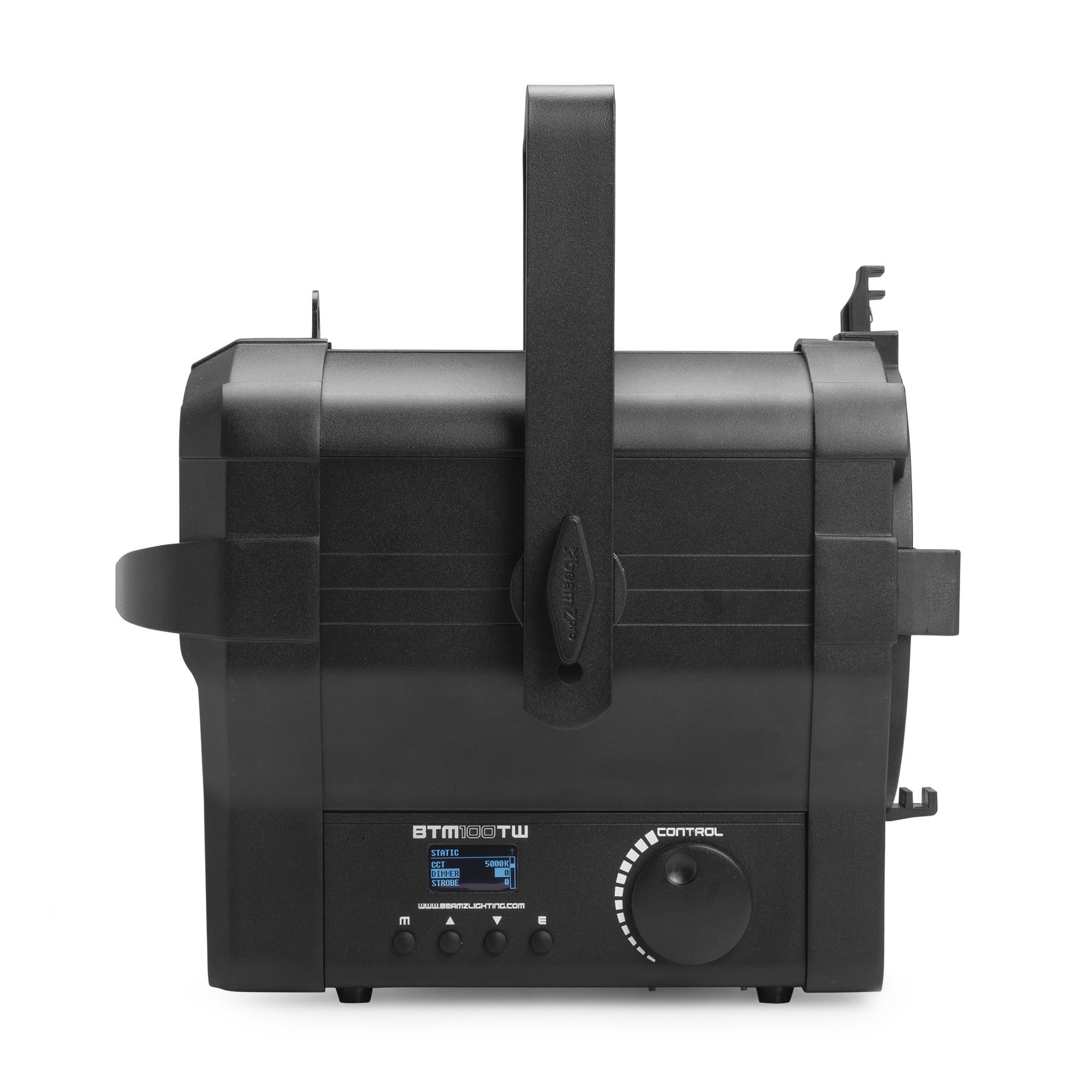

Display typeOLED
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 257 x 248 x 309 mm (W x D x H)
Weight
- 5.2 kg
Accessories
Included Accessories
- Mounting bracket
- Power cable
