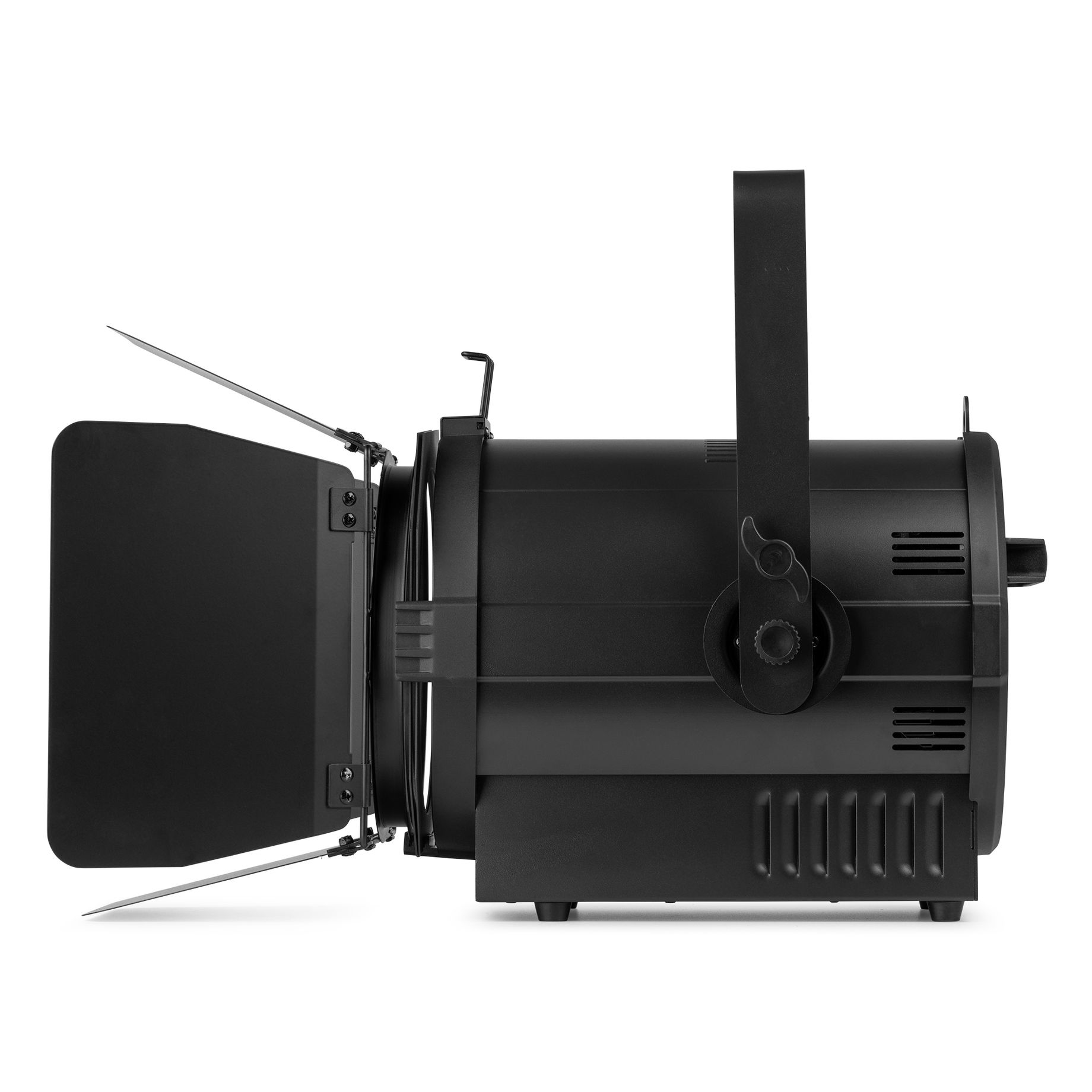

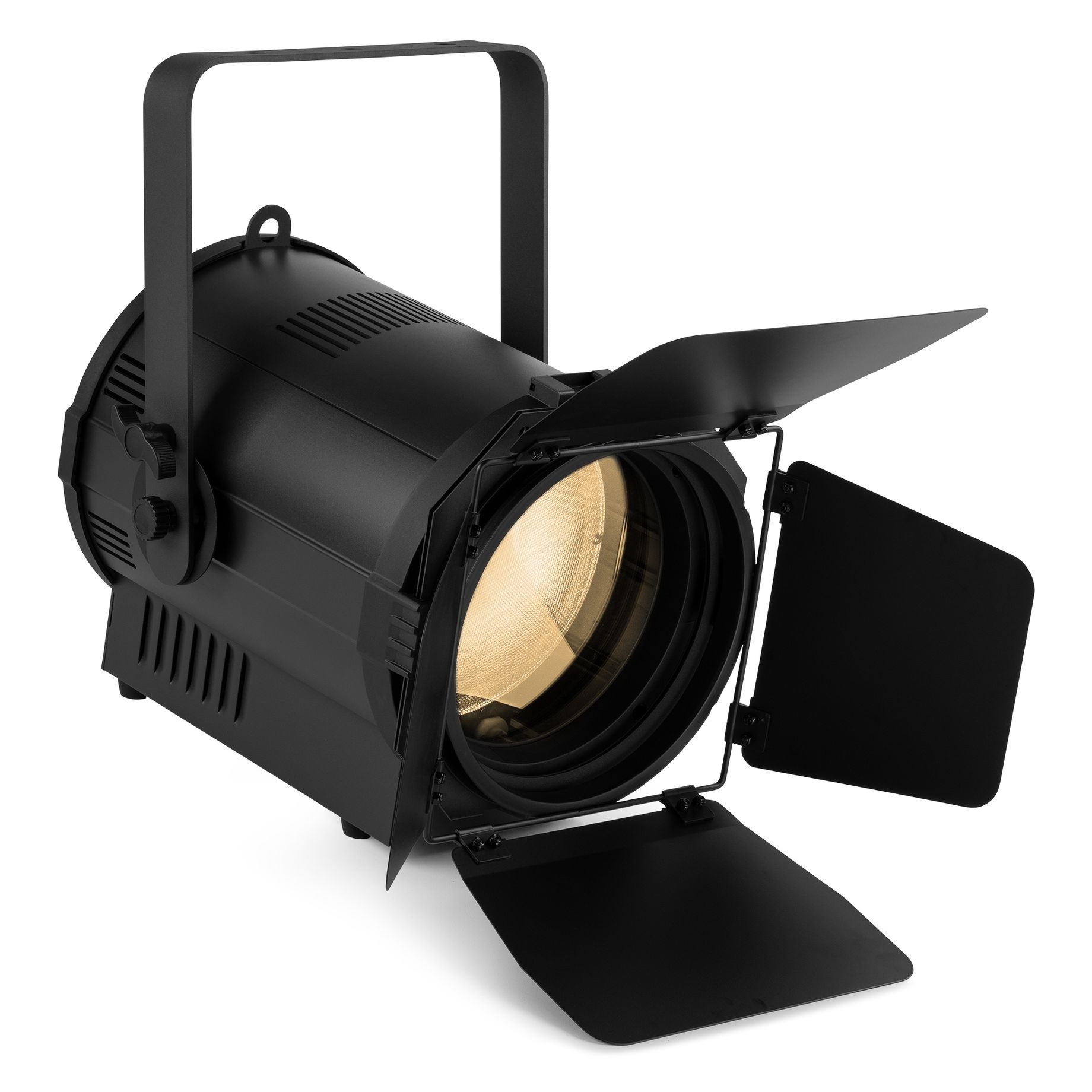

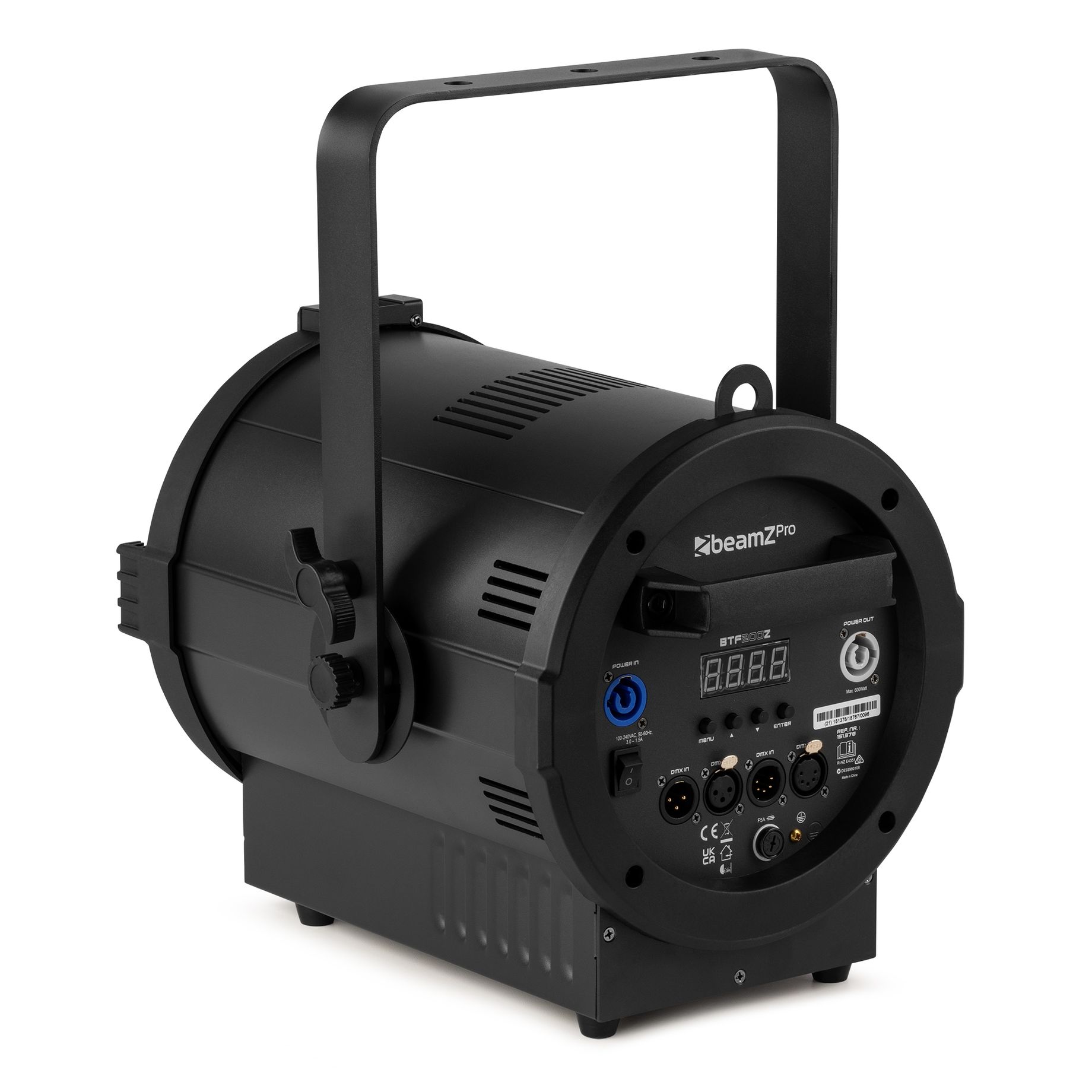

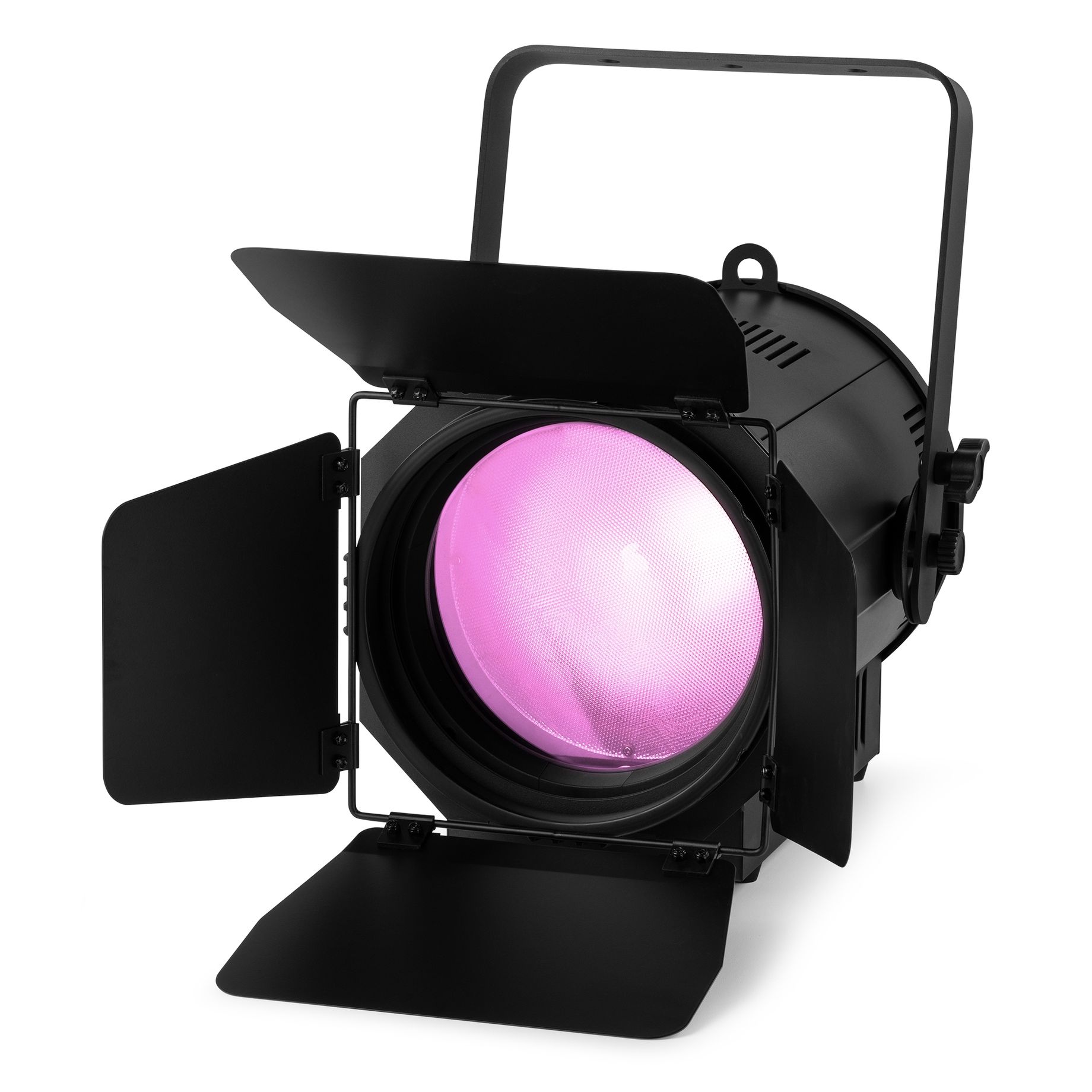

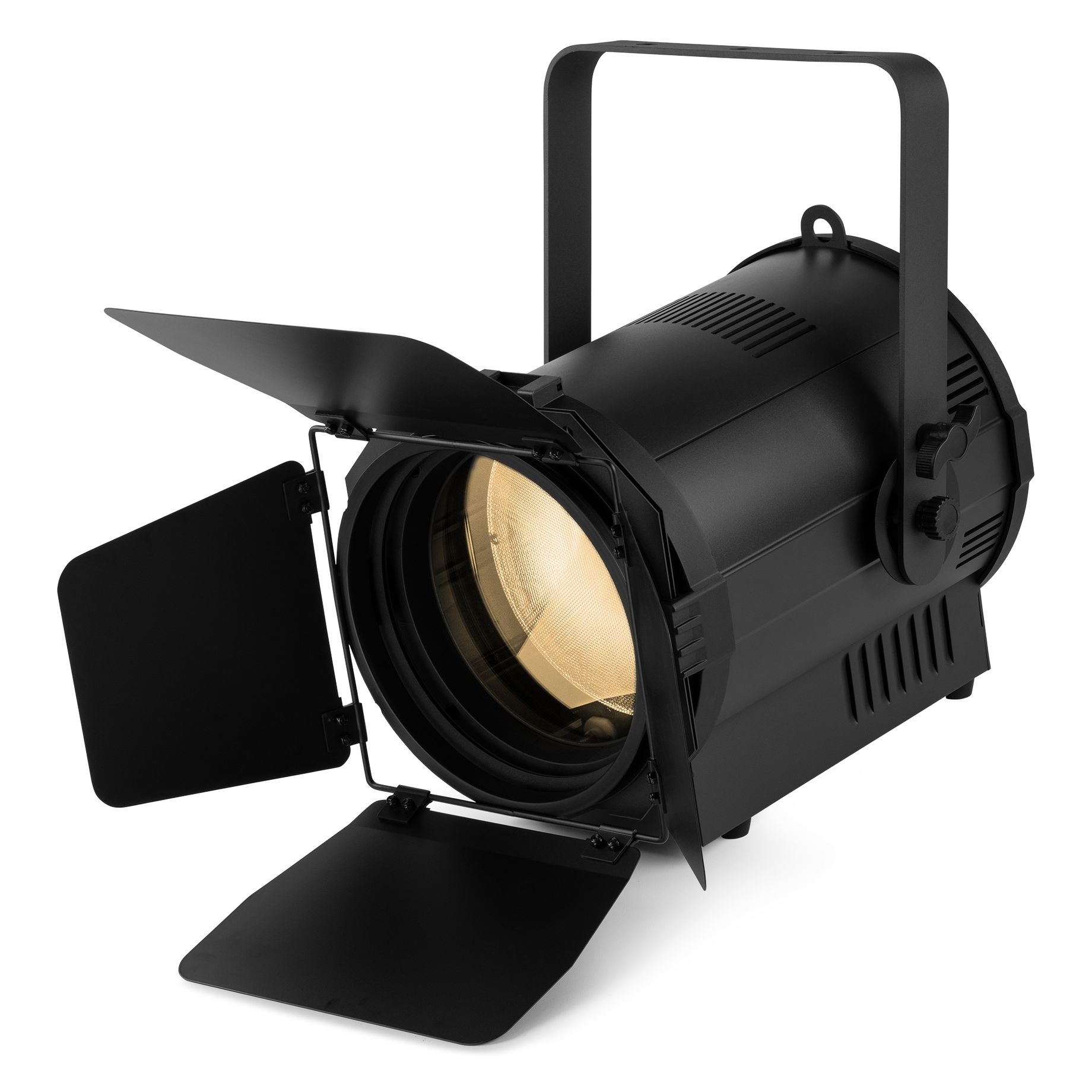

BTF200Z
Fresnel Zoom 200W LED White 3200K
SKU 151.378
|EAN 8715693310054
+8
All product information
Compare
BTF series
Description
Highlights
- 200W Warm White COB LED
- Colour Temperature: 3200K
- Lifetime LED: 50.000 hours
- 15° to 60° Motorized zoom
- Compact and lightweight Aluminium body
- HQ optical system
- CRI 97 (Colour Rendering Index) TLCI up to 98
- 16 bit dimming via DMX
- Flicker free with selectable PWM
- Dimmer curves selectable
- Control Panel: LED Display
- DMX (3/5-pin) or manual control options
- Intelligent temperature control for silent operation
- Powerconnector in&out

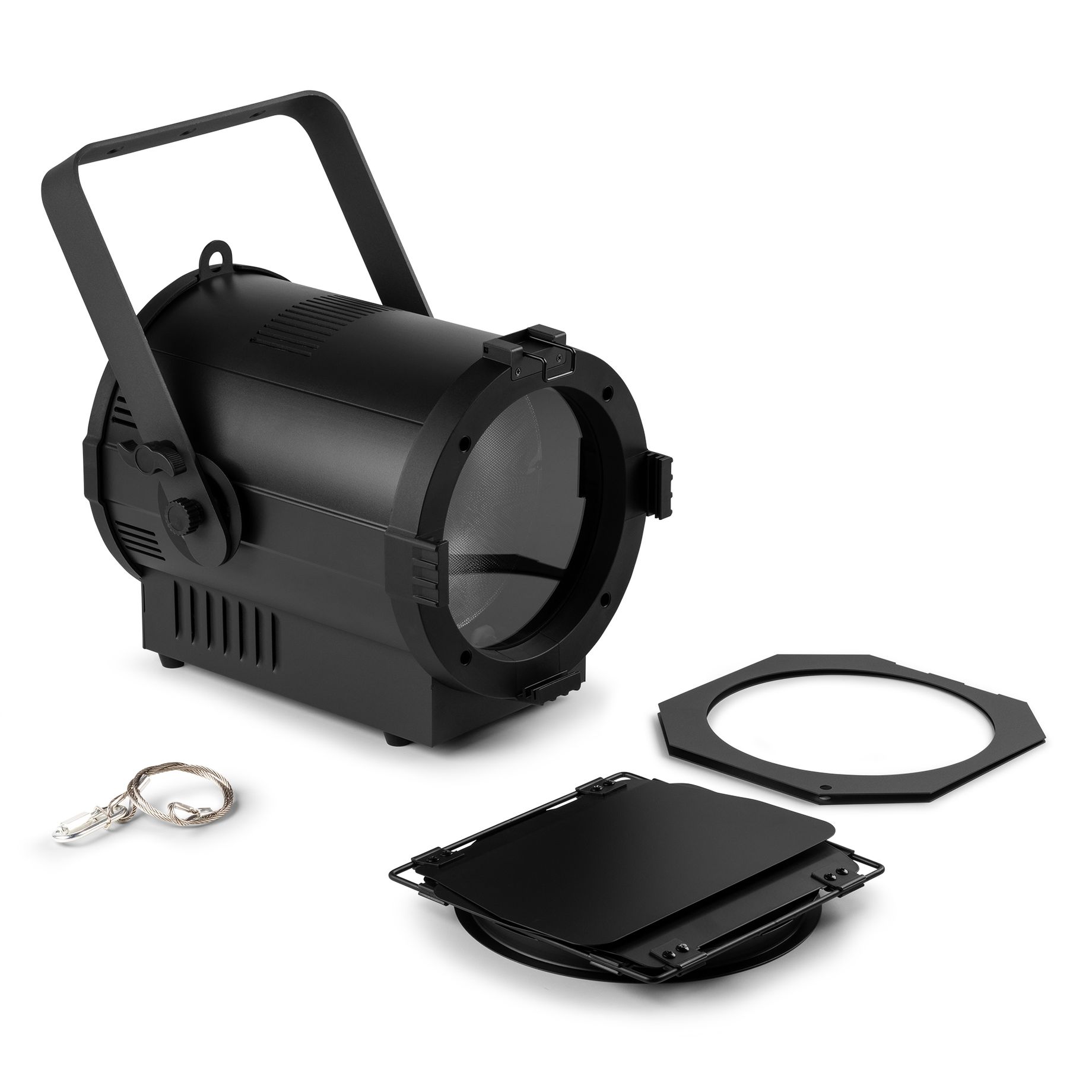

- Including power cable, barndoor, safety cord and colour frame
Specifications
BrandbeamZ Professional
Product serieBTF series
ColourBlack
Light source
Light source
- 1x 200W Warm white LED (3200K)
Colour Temperature3,200 K
Illuminance45750 lx @ 1m
CRI≥97
Optics
Beam angle
- 15 - 60
ZoomYes
Features
Flash Per Second1 - 19 Hz
Control
Control modesDMX, Manual
DMX Channels2, 3, 4, 5
DMX connector3-pin XLR, 5-pin XLR

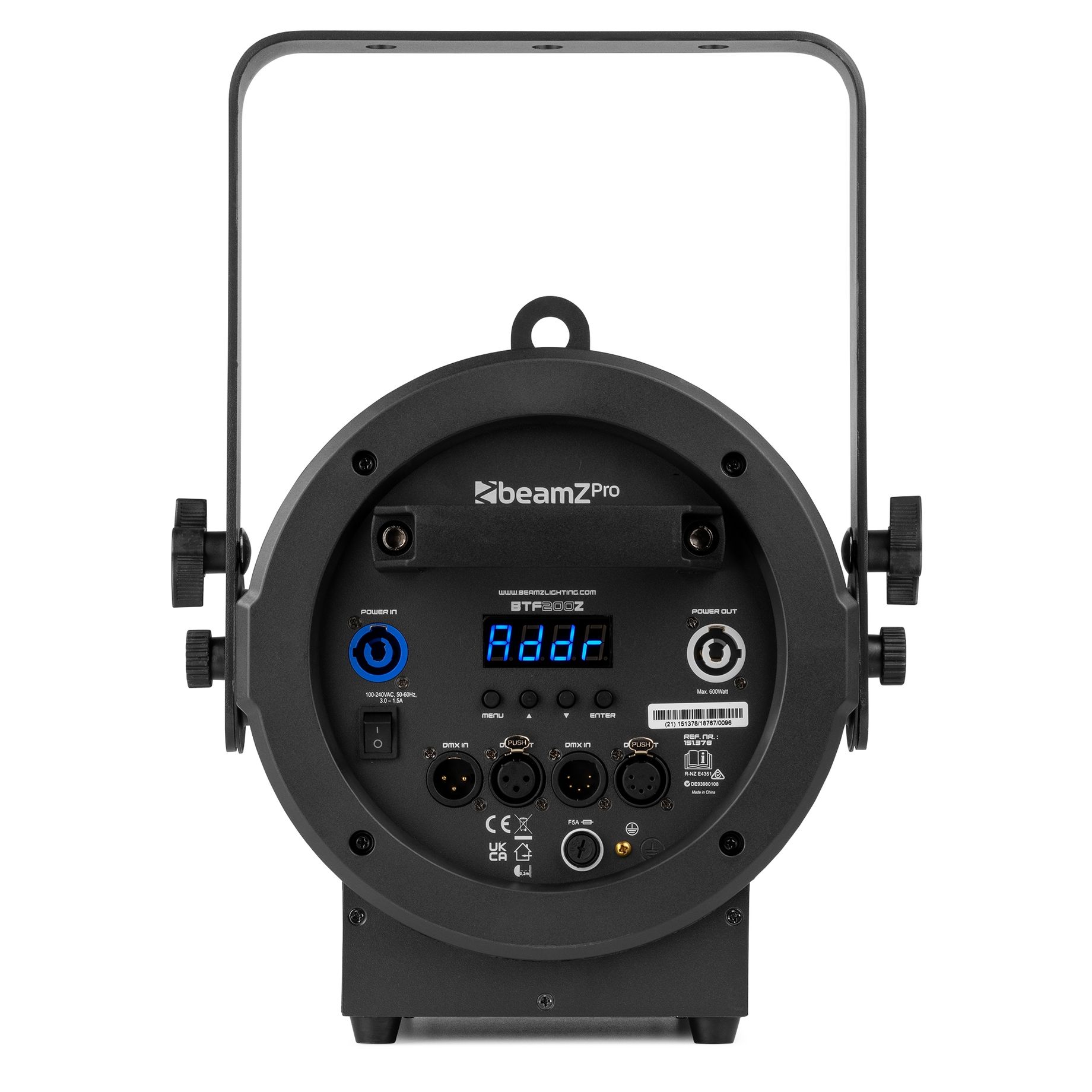

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
- 1x DMX - 5-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
- 1x DMX - 5-pin XLR (F)
Hardware features
Display typeLED
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 315 x 296 x 330 mm (W x D x H)
Weight
- 9 kg
Accessories
Included Accessories
- Mounting bracket
- Safety cord
Manuals & Documents
Manual
PDF
