Brute

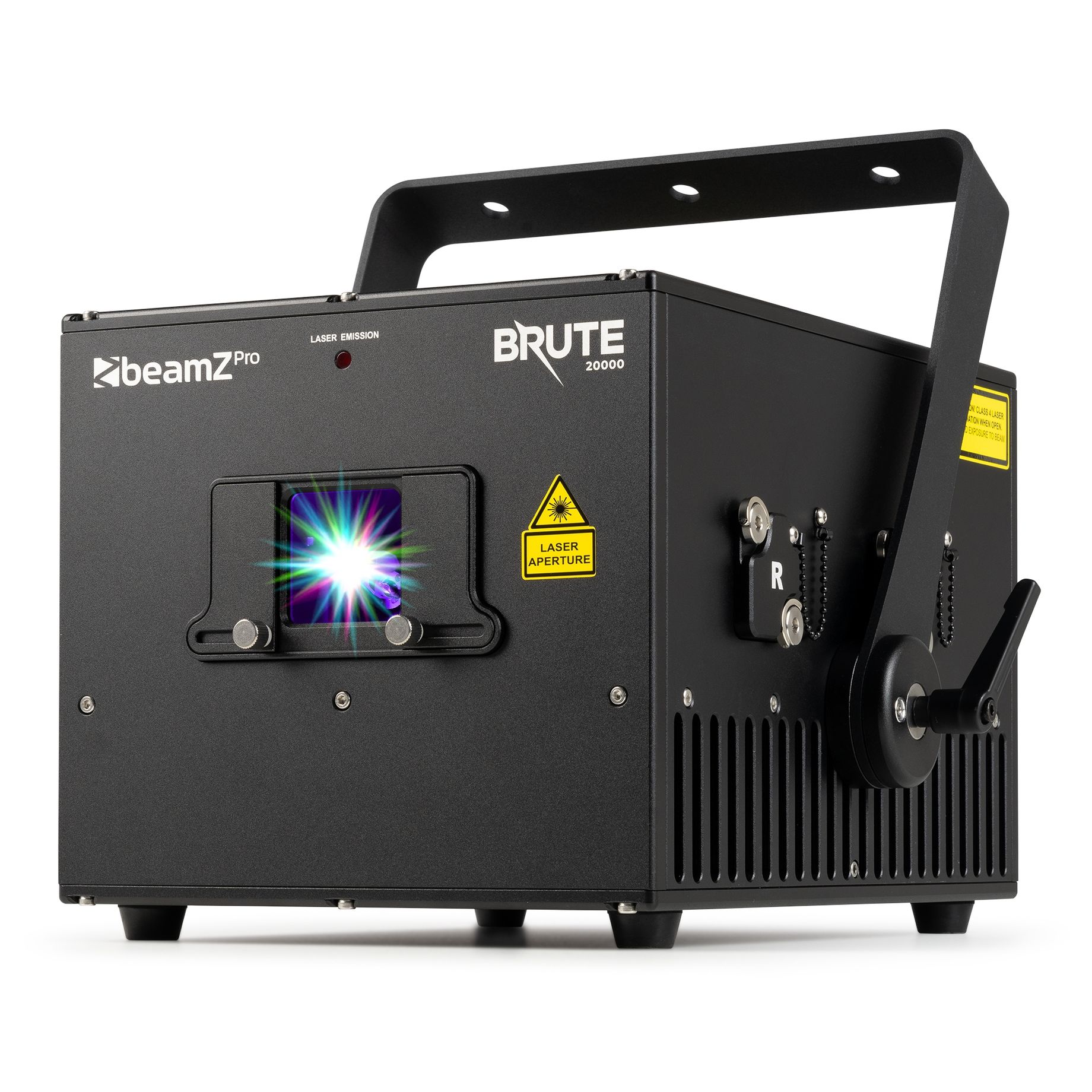

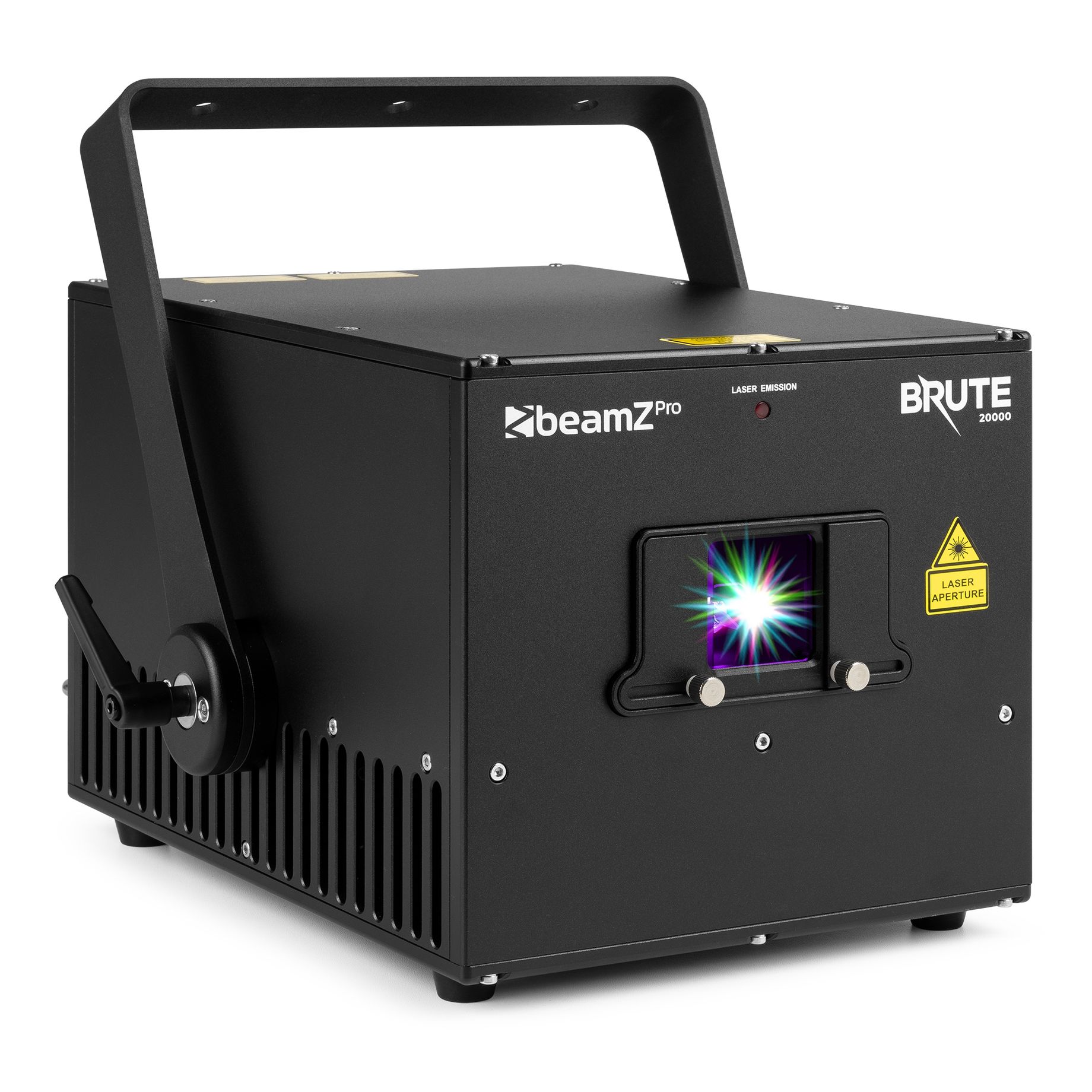

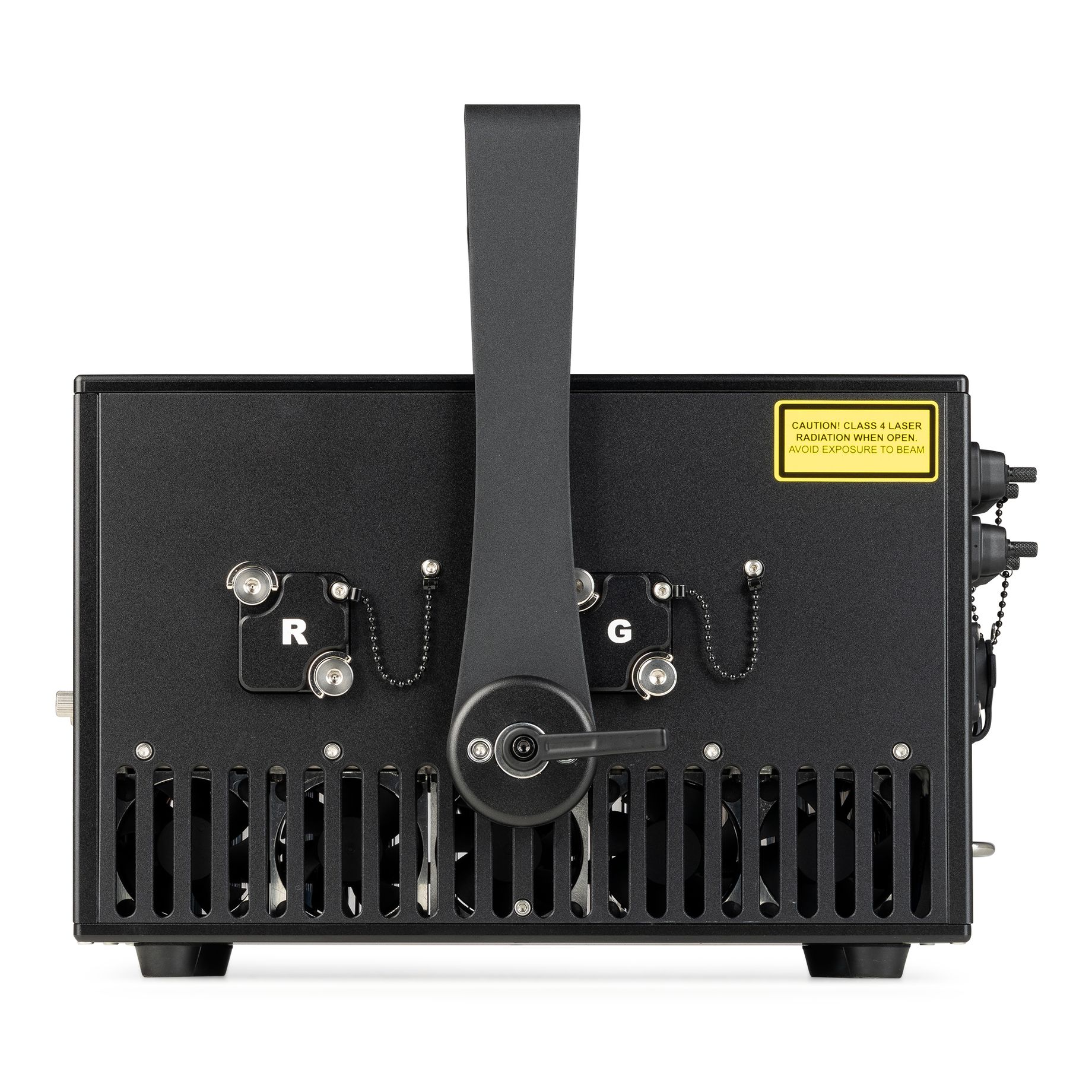

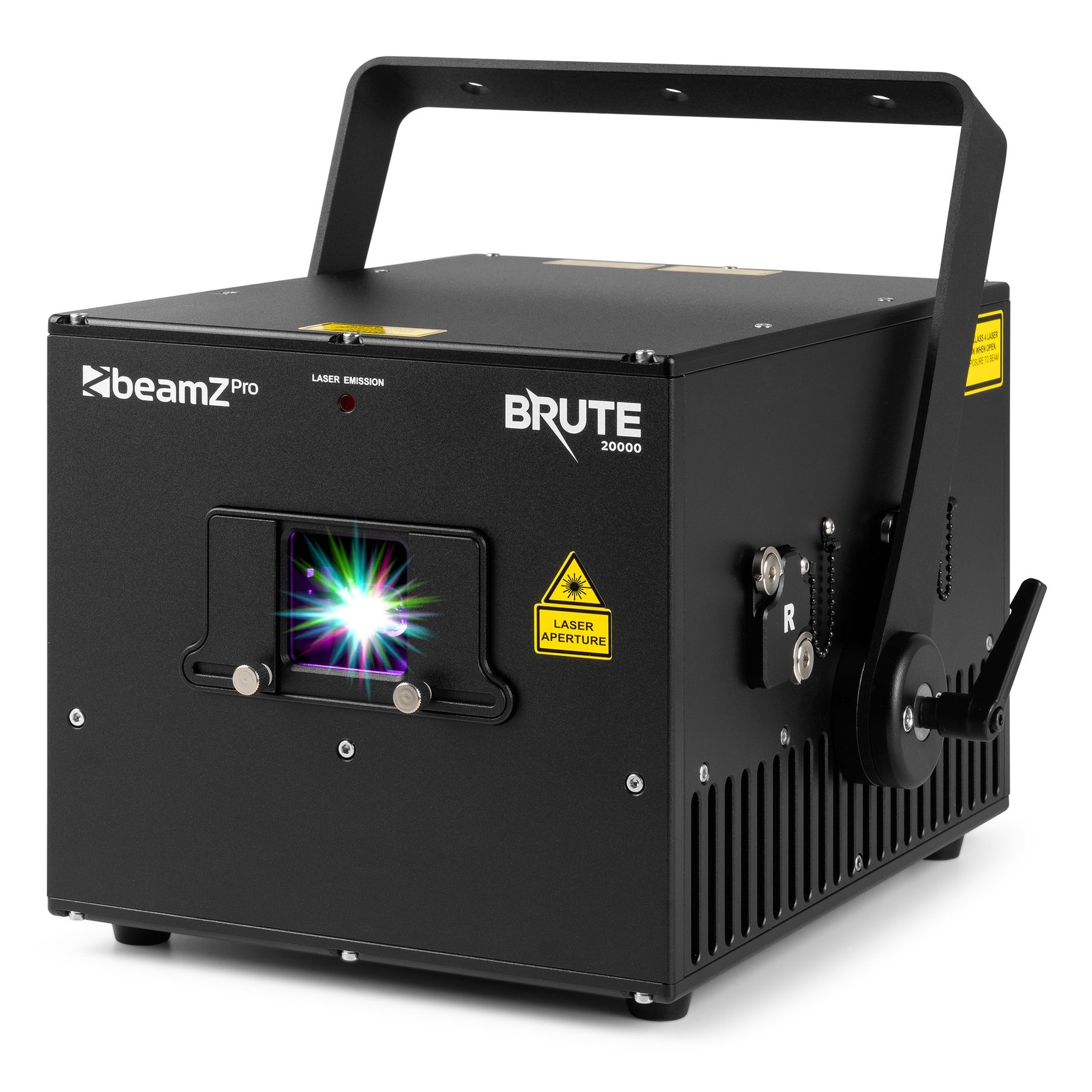

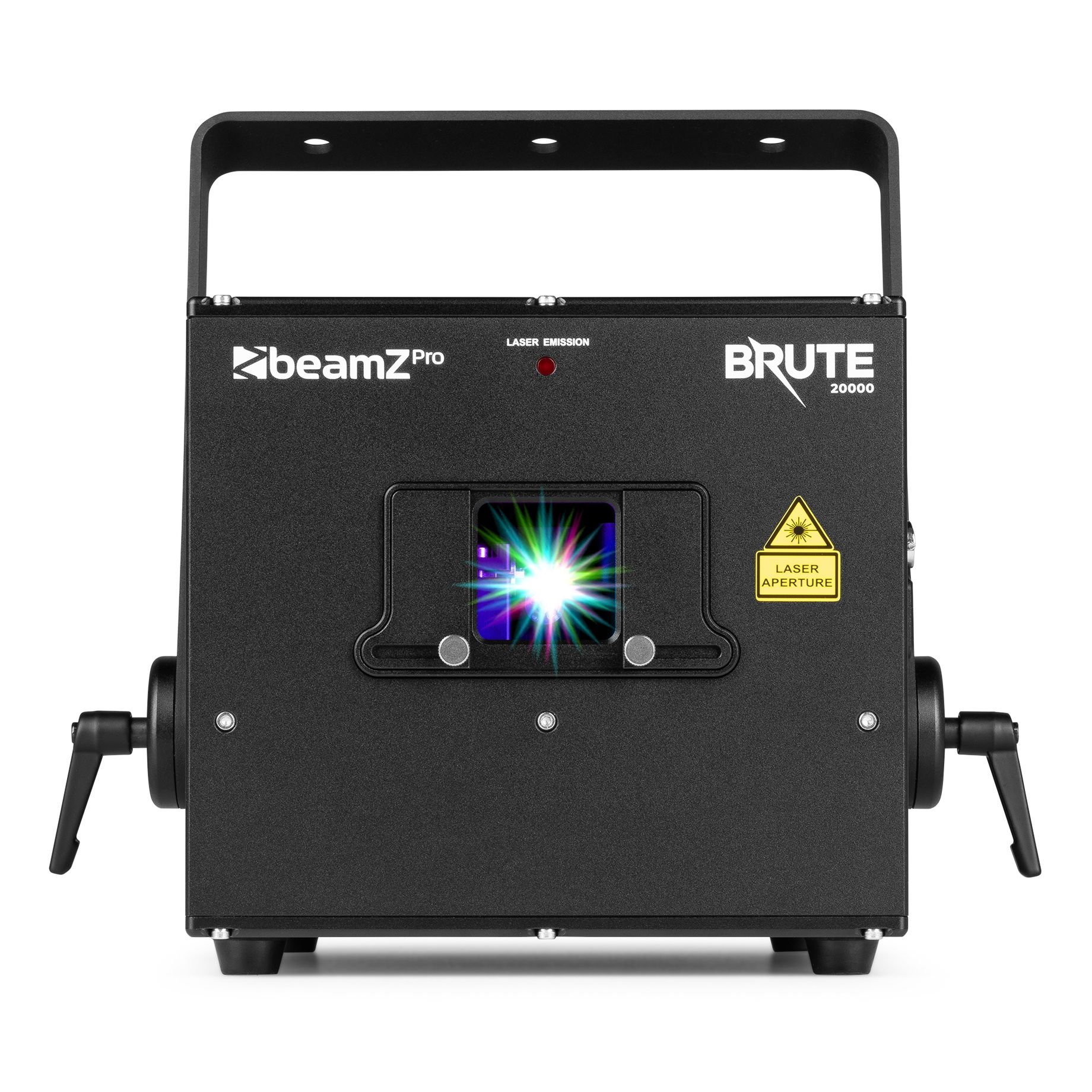

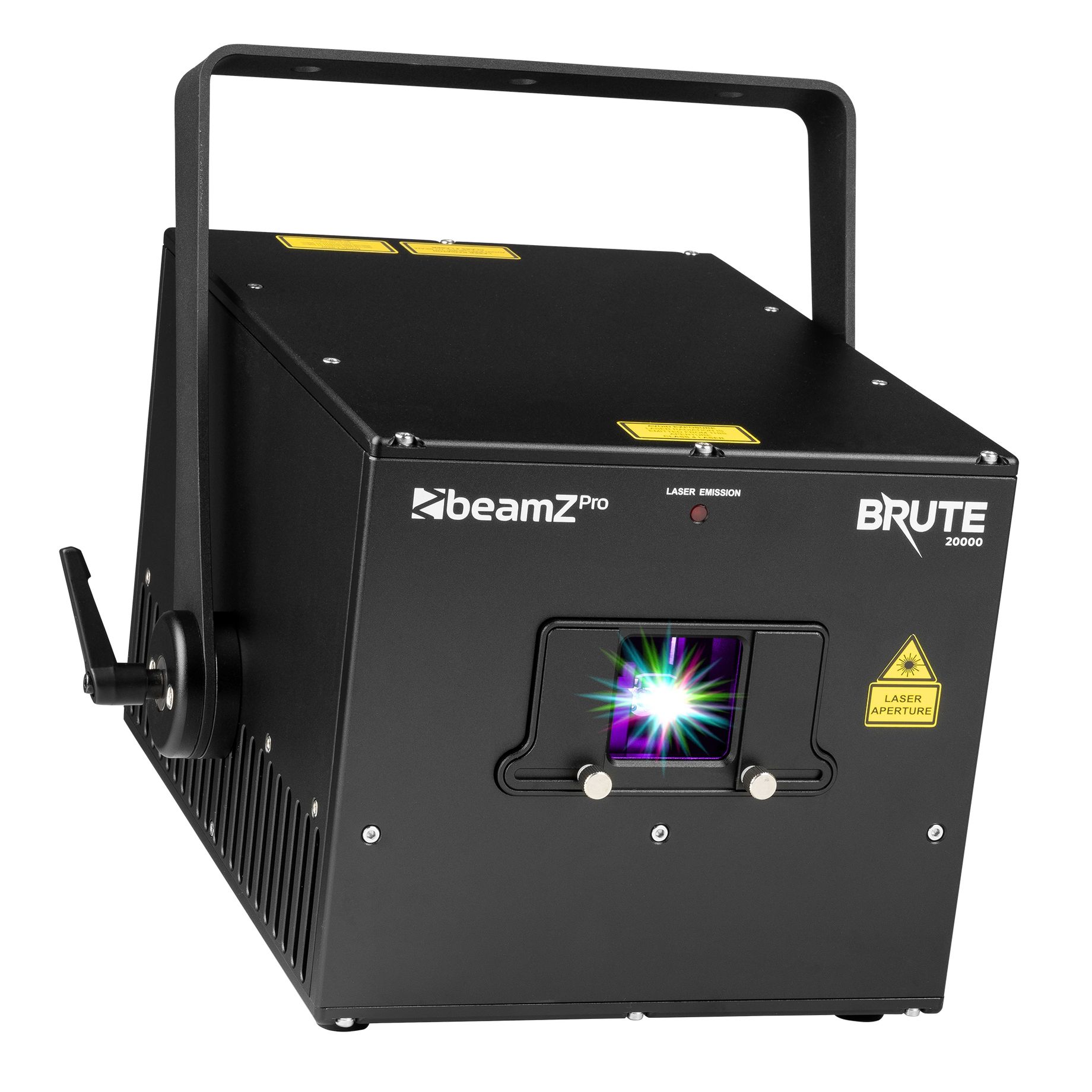

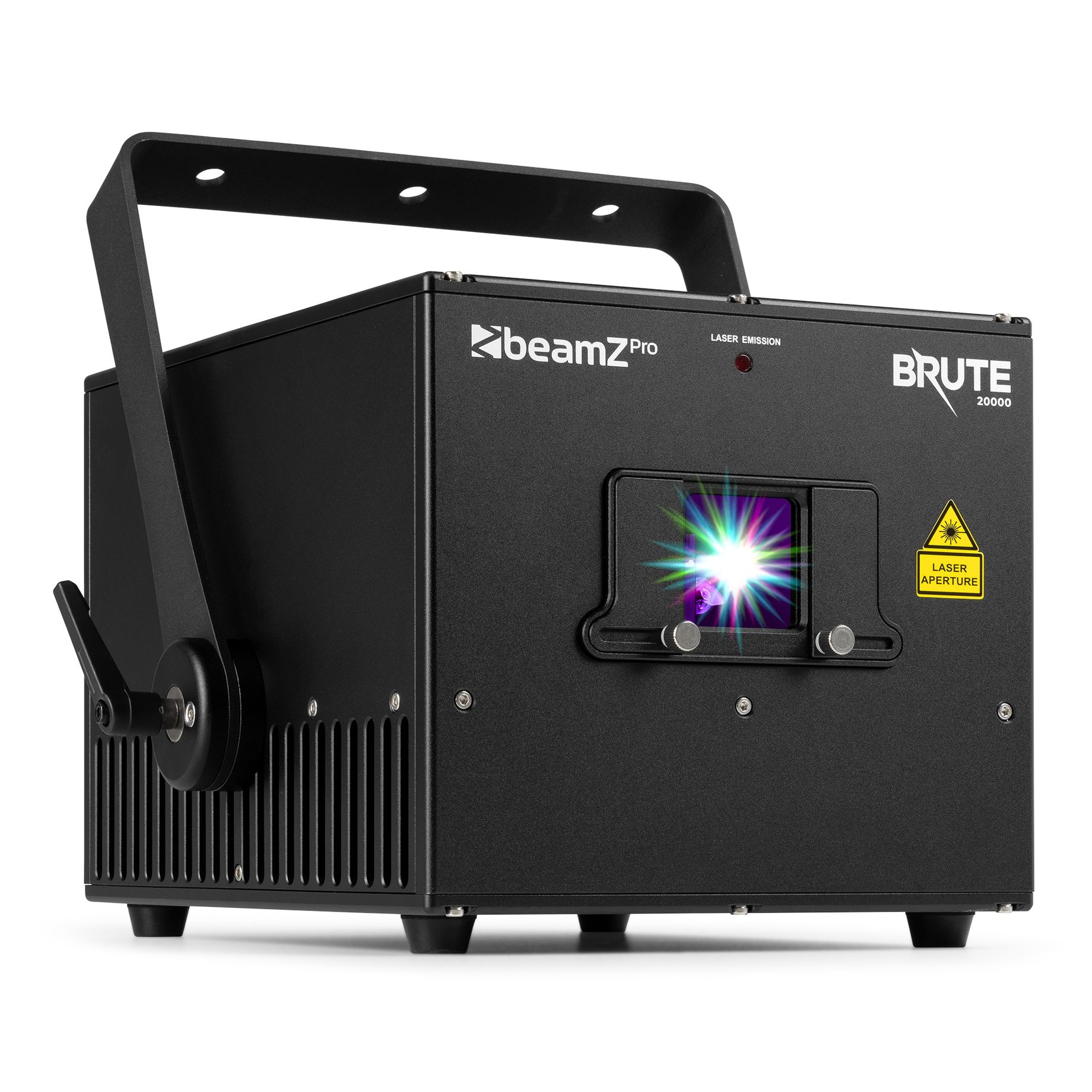

20000 Pure Diode Laser Outdoor
SKU 152.572
|EAN 8715693362824
+6
All product information
Compare
Brute series
Description
Highlights
- Full-colour, IP65 semiconductor diode laser system
- Red (4000mW), Green (4000mW) and Blue (12000mW) Powerful laser
- Guaranteed 20W output
- Dust-proof aluminium housing for minimum maintenance
- LCD display
- Interlock emergency stop signal in/output Ethercon
- Scan Fail Safety system
- 35K@8° high speed optical scanner system
- Maximum scan angle 50°
- Temperature-controlled low-noise fan
- DMX in/output via 5-pin XLR
- Ilda in/output
- Auto mode
- X- en Y-Size inverter
- Analog RGB colour modulation
- Powerconnector TR in/output
Specifications
BrandbeamZ Professional
Product serieBrute series
ColourBlack
Light source
Optics
Laser Scan Angle Max.50 °
Laser Scanner System35 kpps @ 8°
Control

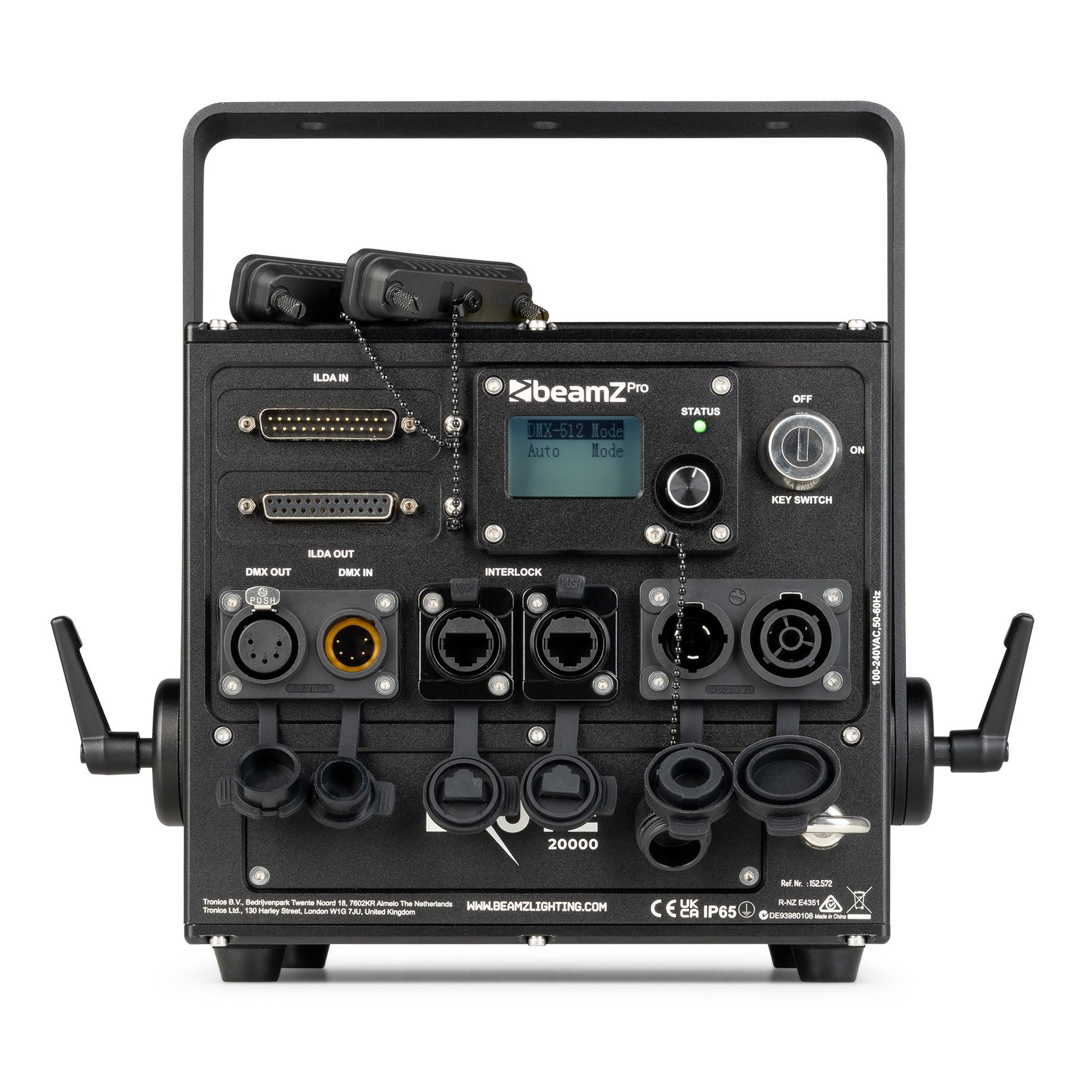

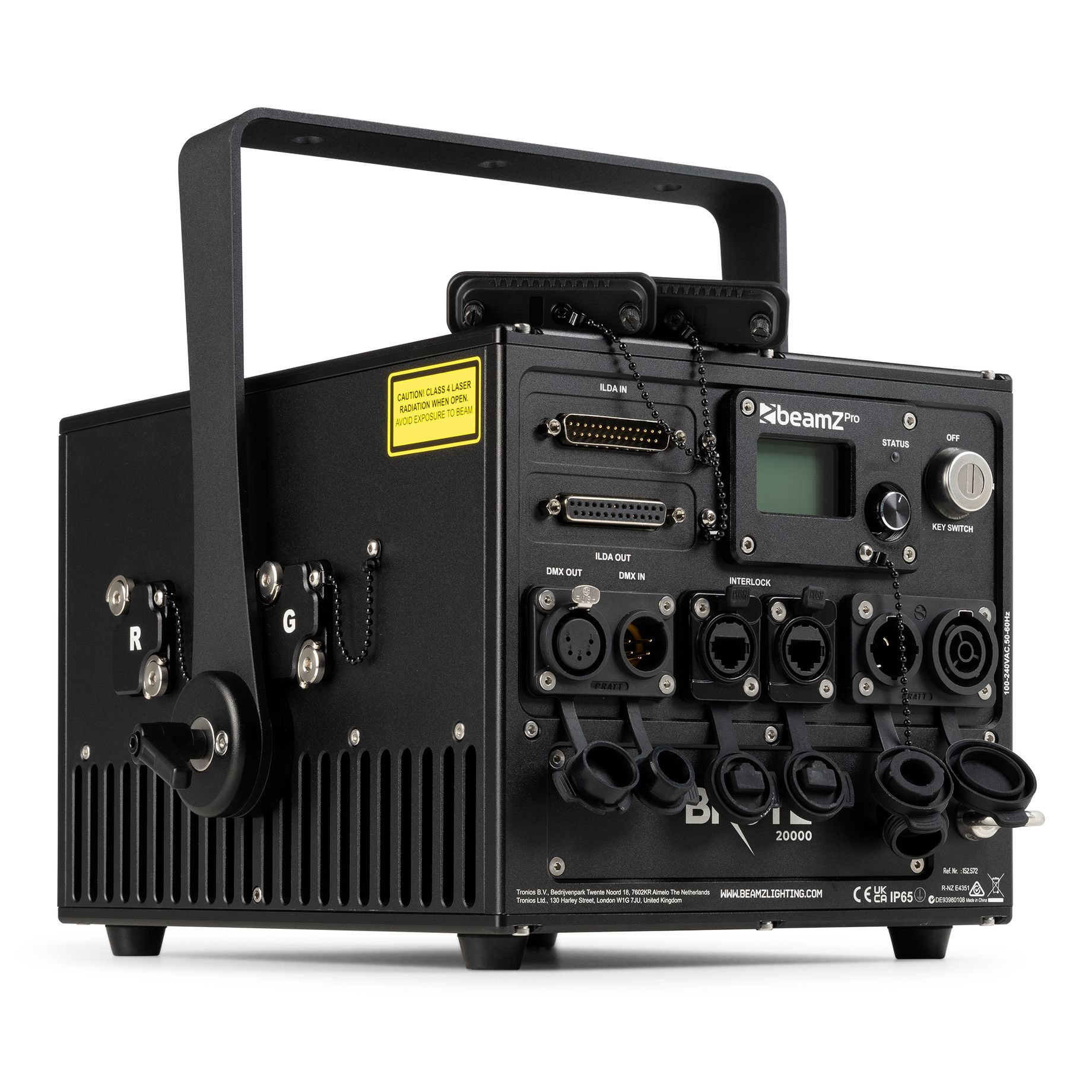

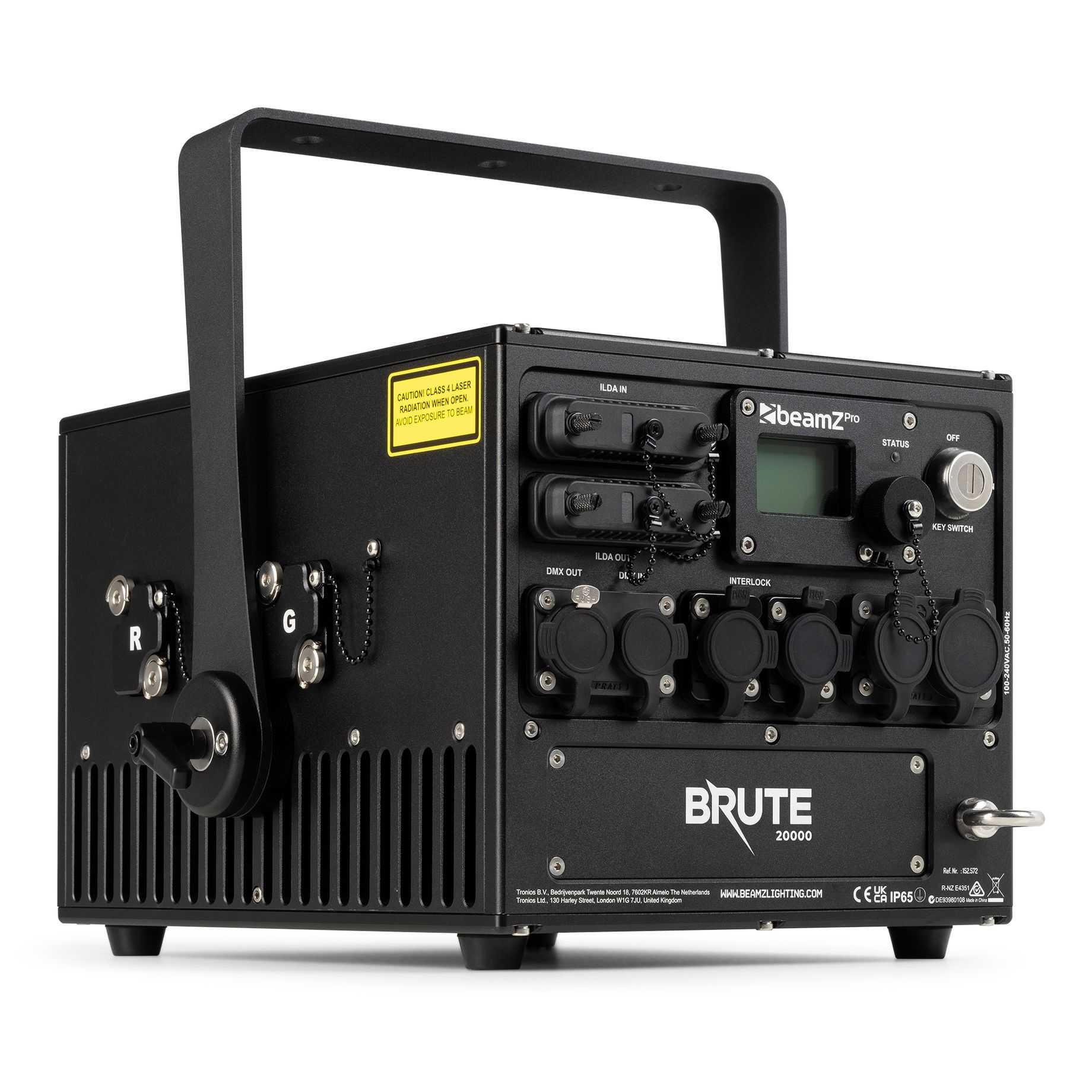

Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 5-pin XLR (M)
- 1x Ilda - DB25 (M)
- 1x Interlock - RJ45
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 5-pin XLR (F)
- 1x Ilda - DB25 (F)
- 1x Interlock - RJ45
Hardware features
CoolingTemperature controlled fan
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions: Without bracket
- 205 x 285 x 186 mm (W x D x H)
Weight: Without bracket
- 9.3 kg
Accessories

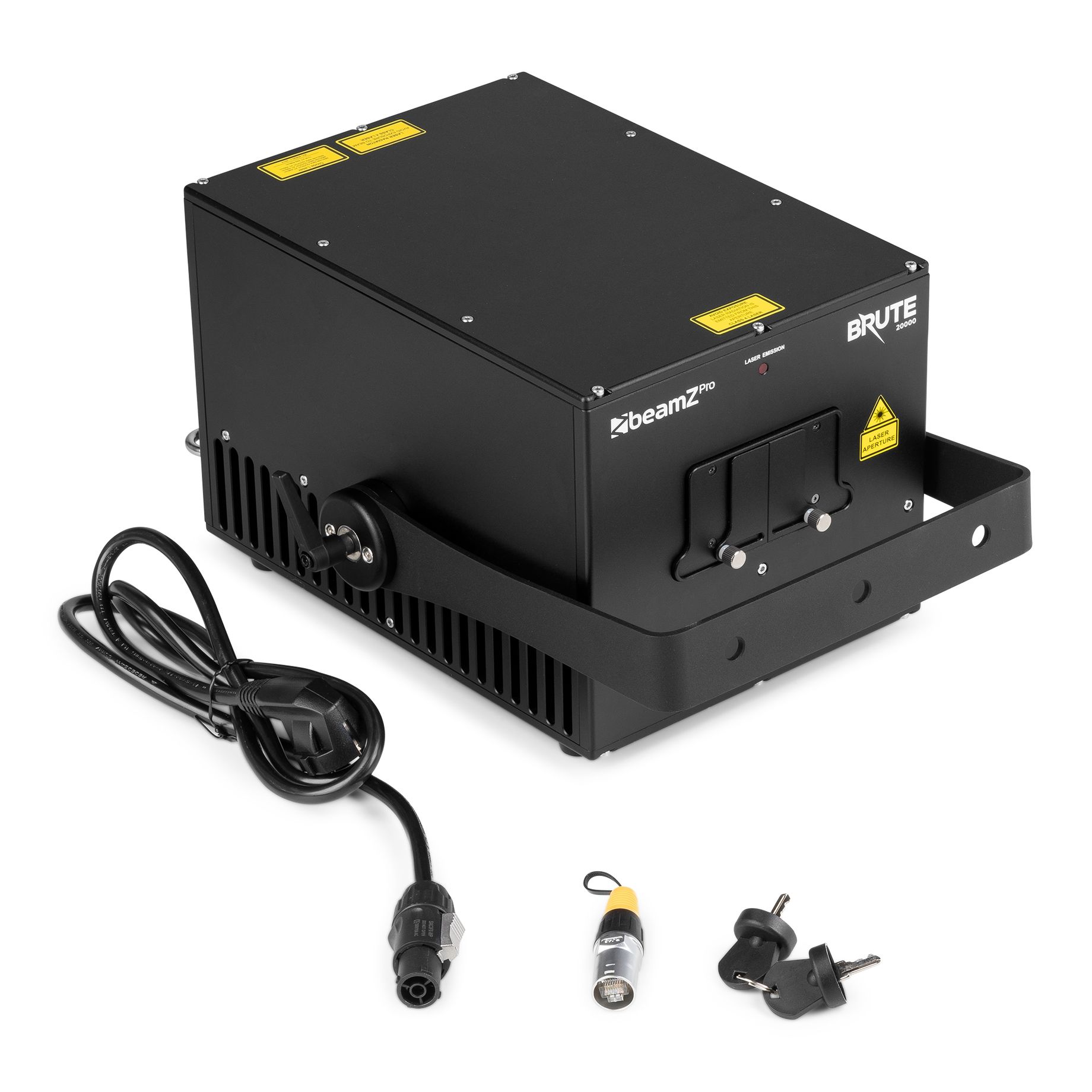

Included Accessories
- Mounting bracket
