AM8A

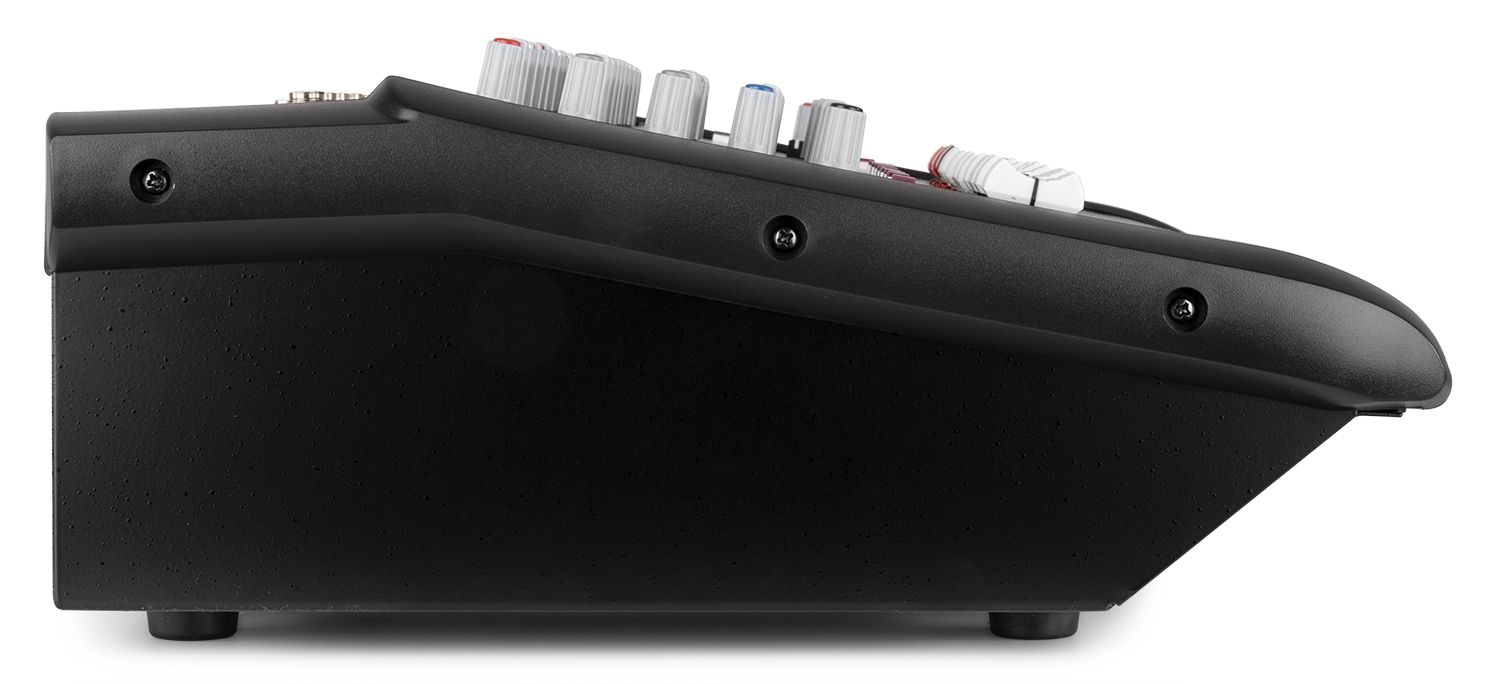

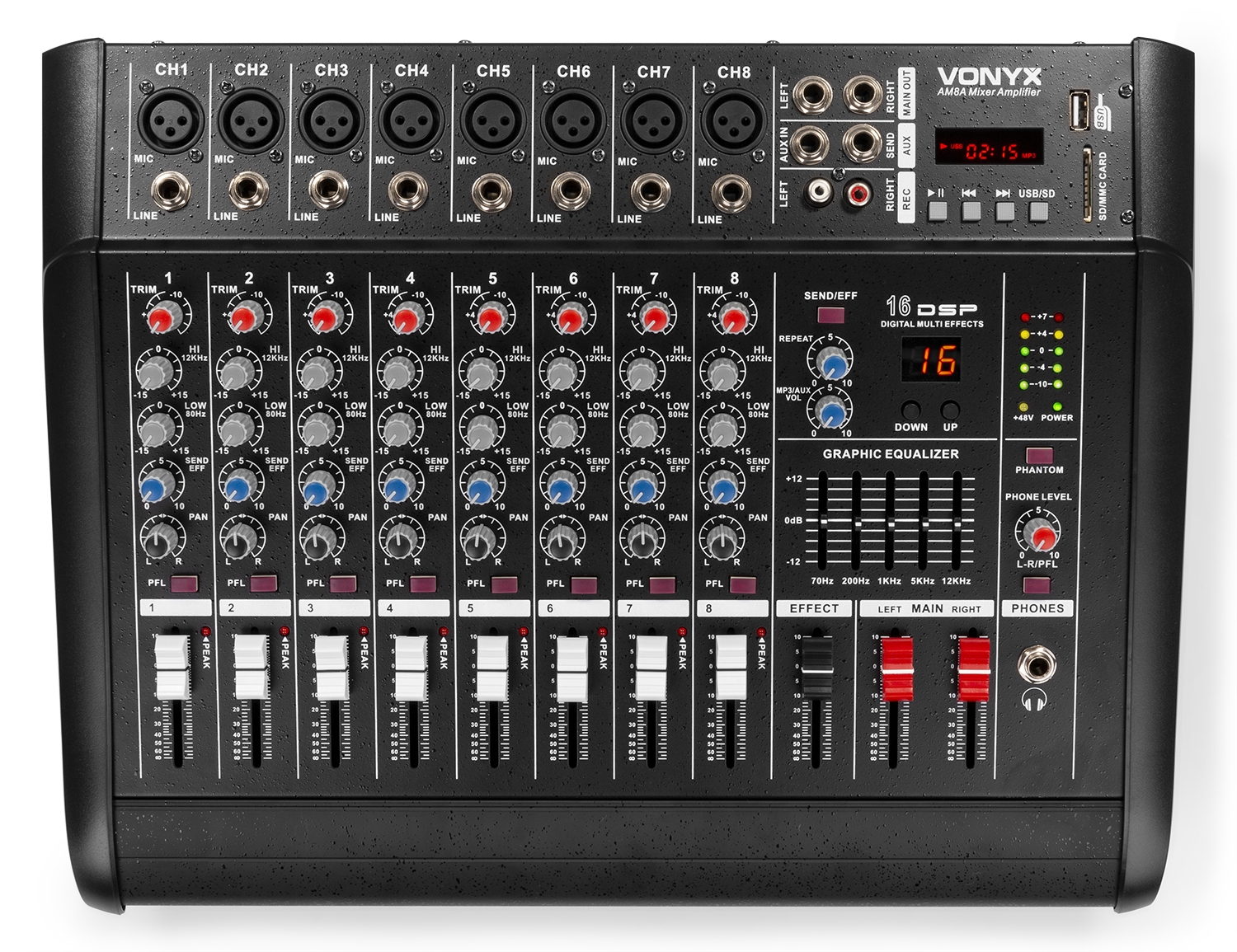

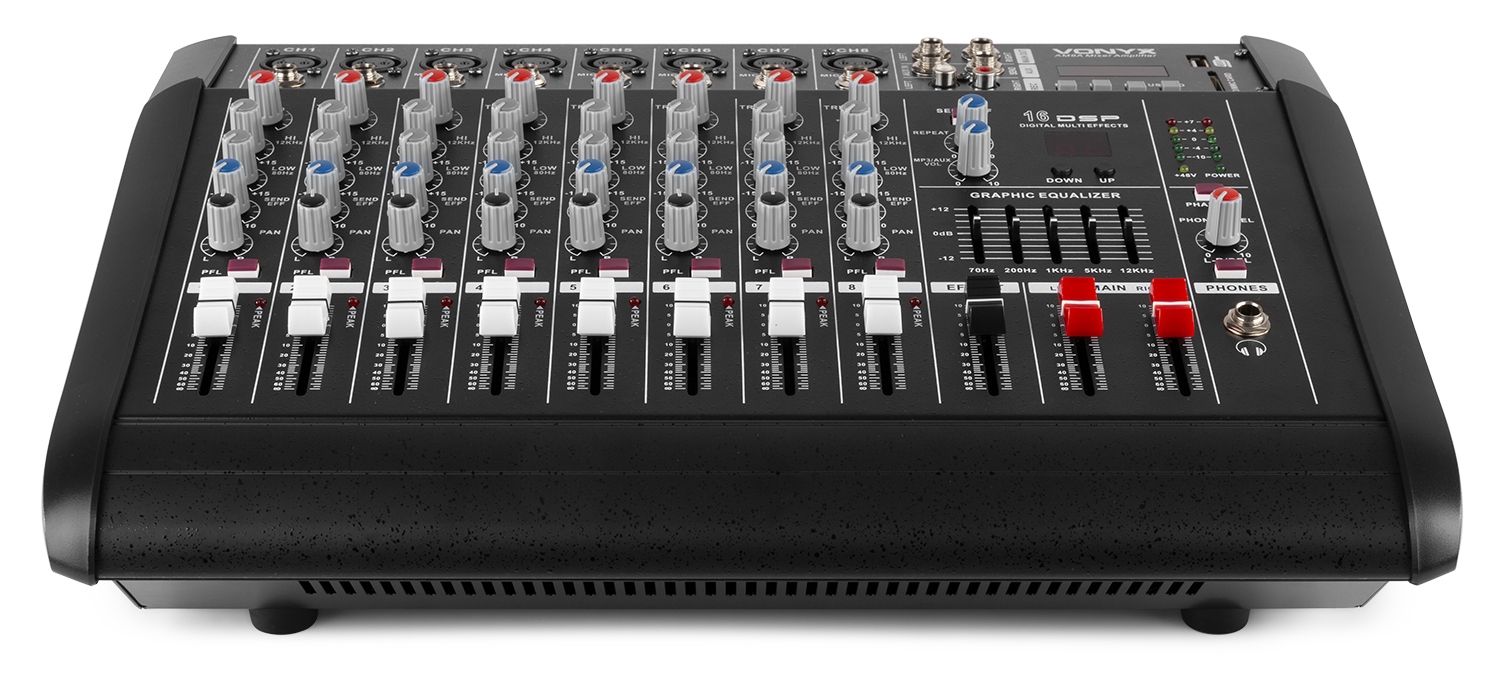

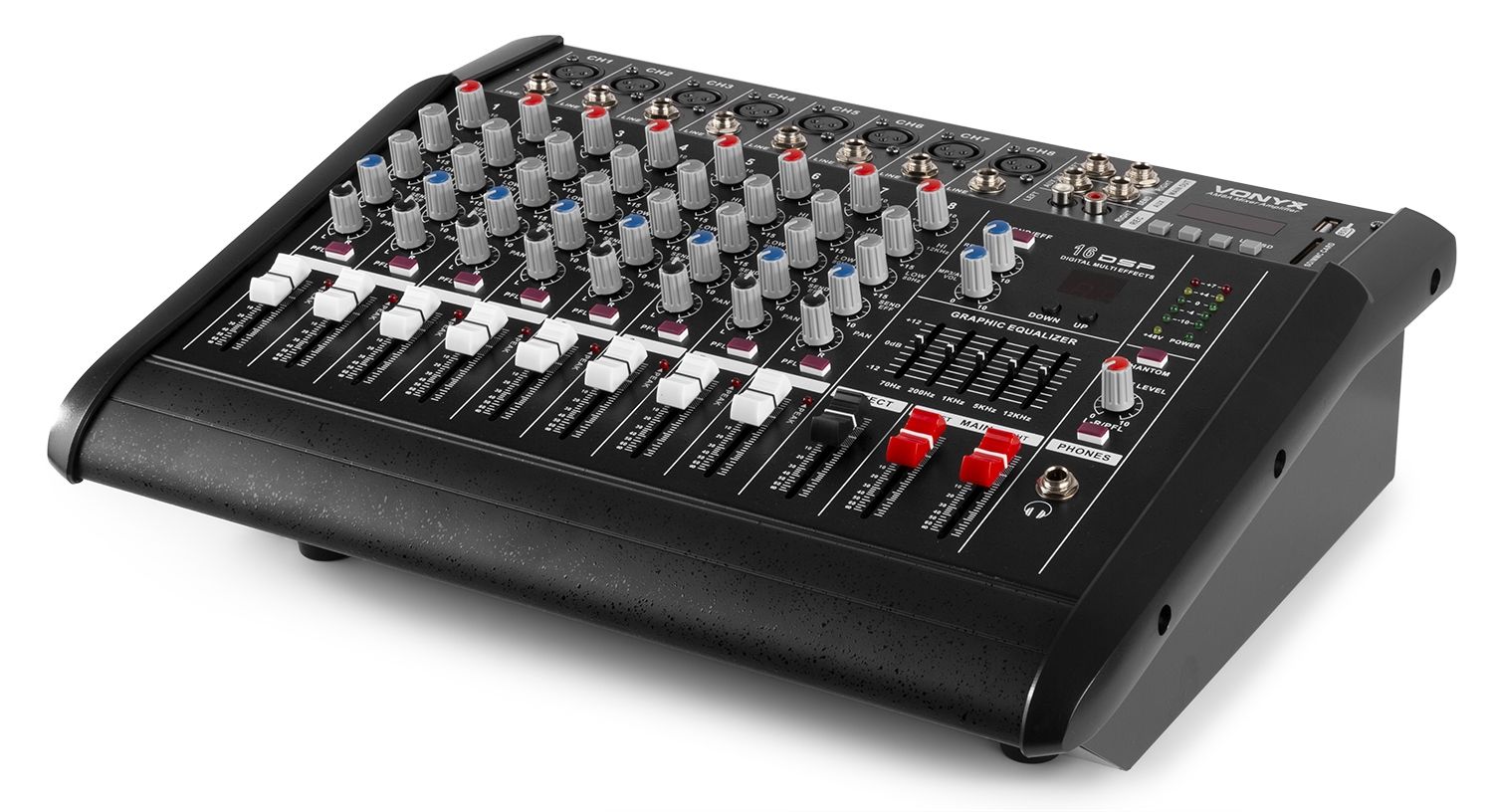

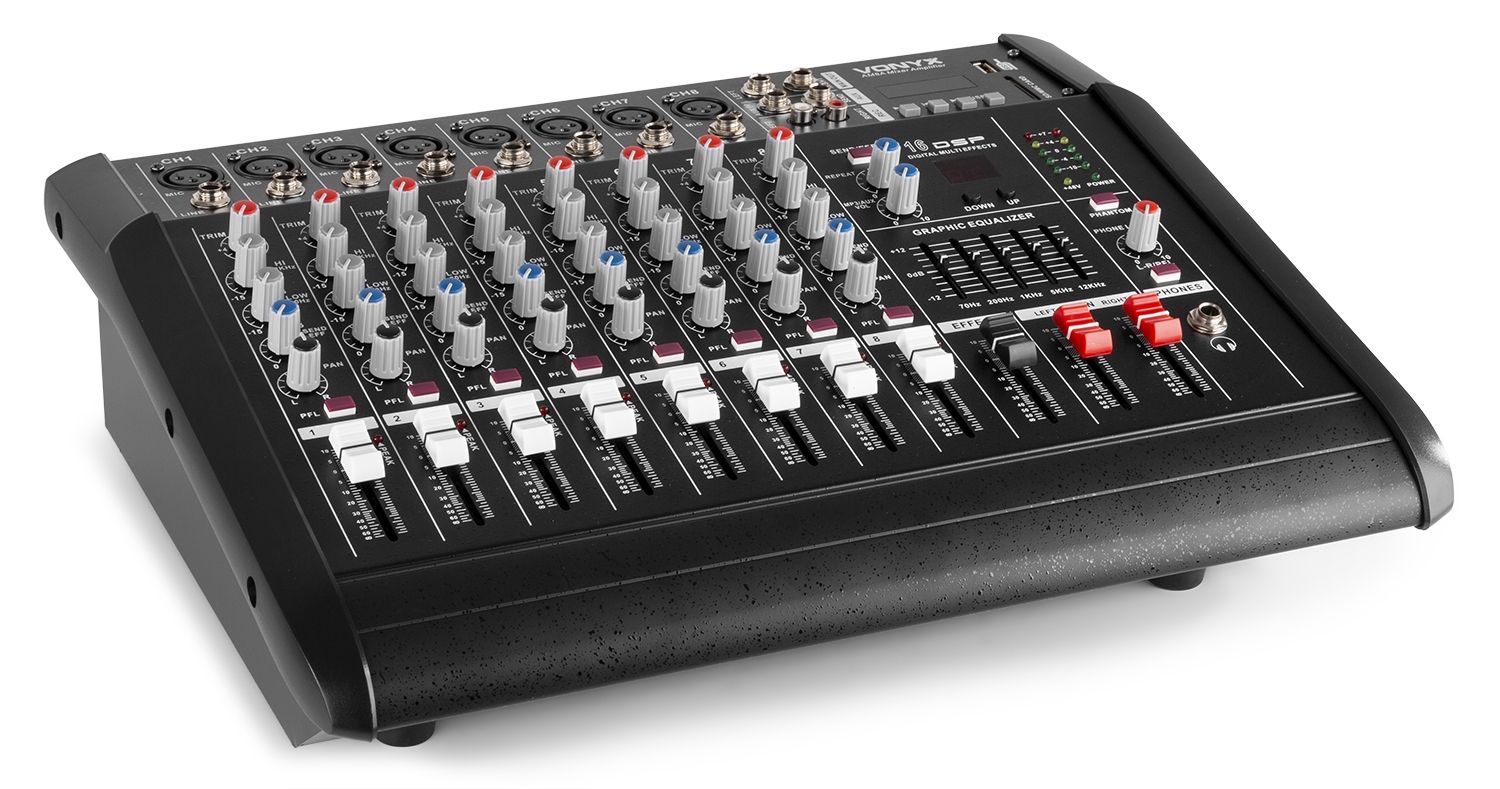

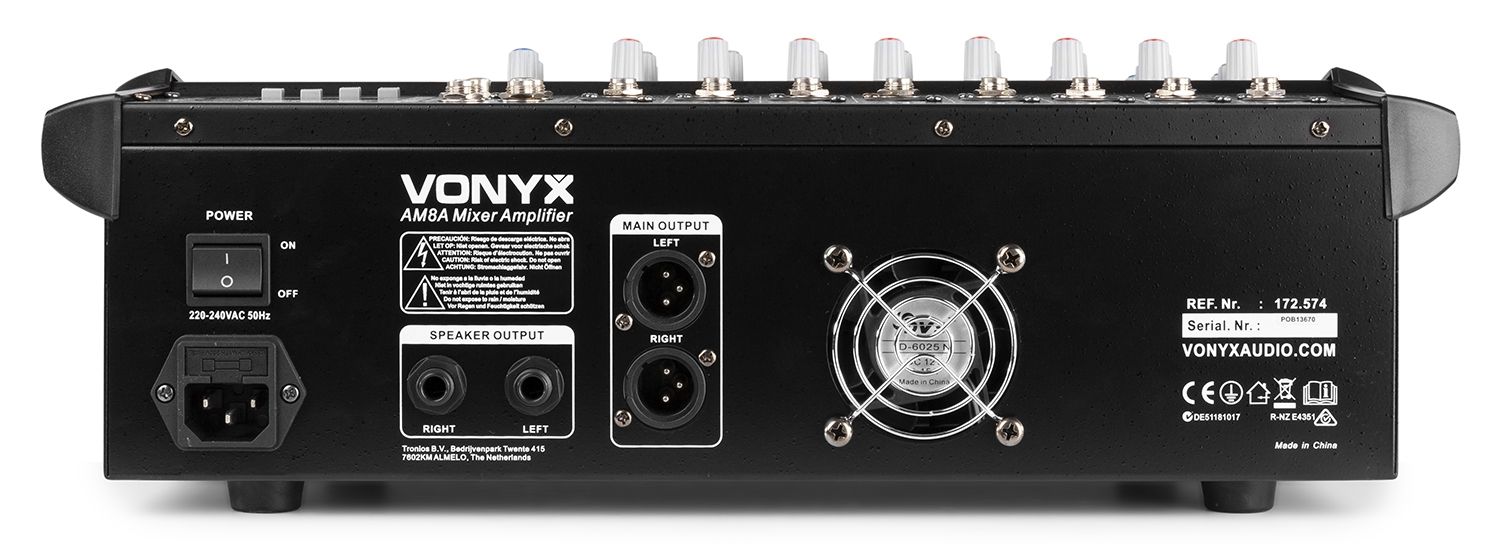

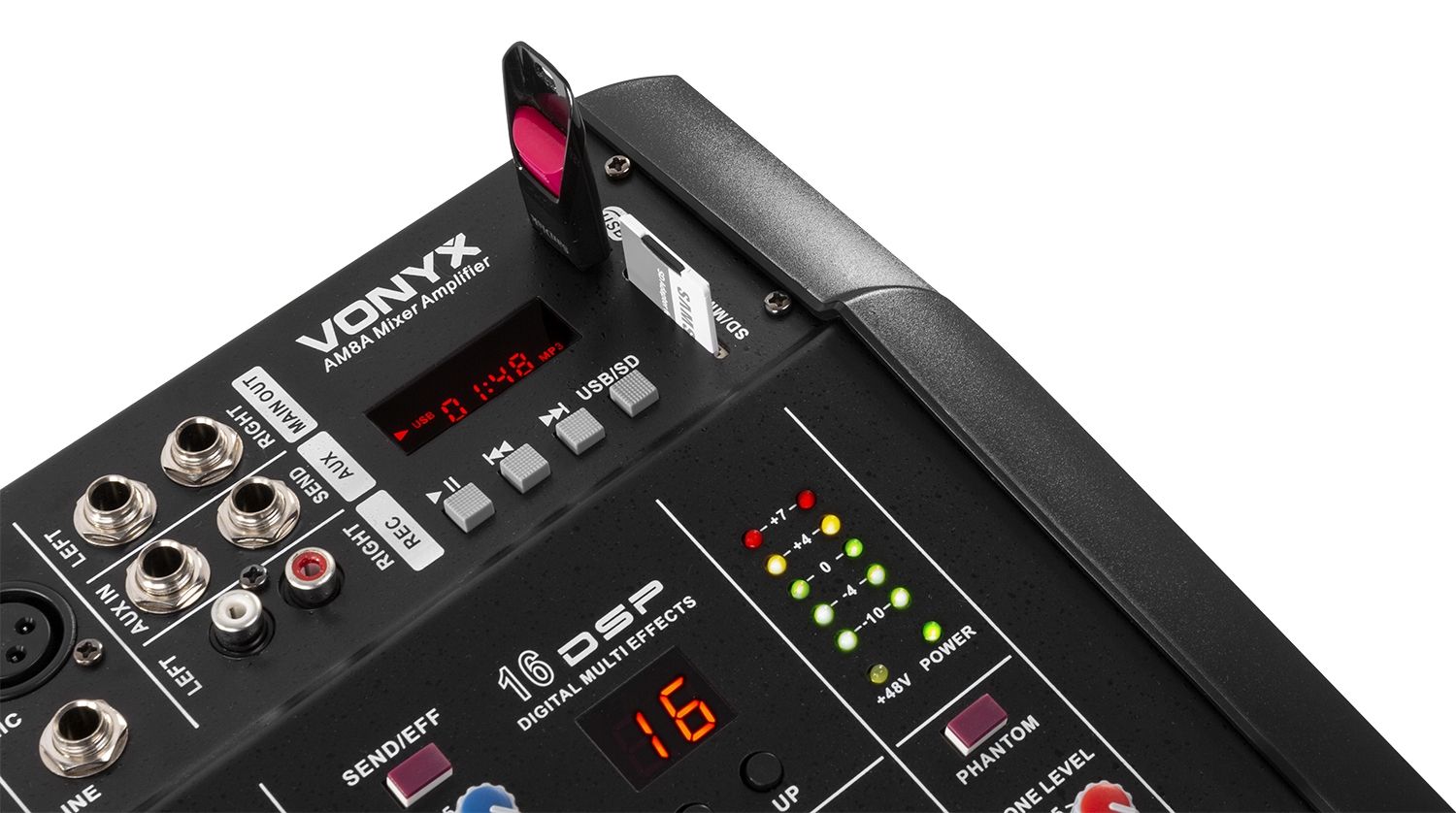

8-Channel Mixer with Amplifier DSP/BT/SD/USB/MP3
SKU 172.574
|EAN 8715693301397
+3
All product information
Compare
AM series
Description
Highlights
- 2x 500W power amplifier
- MP3 player with USB port and SD slot
- Using BT wireless technology for audio streaming
- +48V phantom power
- Single 7 band EQ
- 16 digital effects (DSP)
- PFL per channel
- RCA line input
- Tone control per channel
- 6.3mm outputs (L+R)
Specifications
BrandVonyx
Product serieAM series
ColourBlack
Channels8
Frequency Response20 - 20,000 Hz
Playback
Playback optionsBT streaming, SD, USB
Sound editing
DSP Effects Amount16
Equalizer: Mic/Line2-Bands
Audio specifications
THD: Main<0.1%
Output Level: Headphone300mW
Output Level: Record775mV
Features
FeaturesBuild-in amplifier, Effect processor, Playback function
Connections
Input connections
- XLR
- USB-A
- SD
- RCA
- 6.3 mm jack
Output connections
- 6.3 mm jack
- XLR
Electrical
Power Supply230/240VAC 50/60Hz
Mechanical
Dimensions
- 320 x 415 x 140 mm (W x D x H)
Weight
- 7 kg
